Sinclair Focus Plus YAC1FB9 User Manual

25
Service Manual
No. Name
1
Interface of compressor wire
2
Interface of reactor
3
Terminal of chassis electric
heater
4
Terminal of compressor
electric heater
5
Terminal of 4-way valve
6
Interface of outdoor fan
7
Interface of earthing wire
8
Communication interface
9
Interface of netural wire
10
Interface of live wire
11
Terminal of electronic
expansion valve
12
Interface of temperature
sensor
13
Overload interface of
compressor
14
Main chip
1
2
3
4
5
6
7
8
9
10
11121314

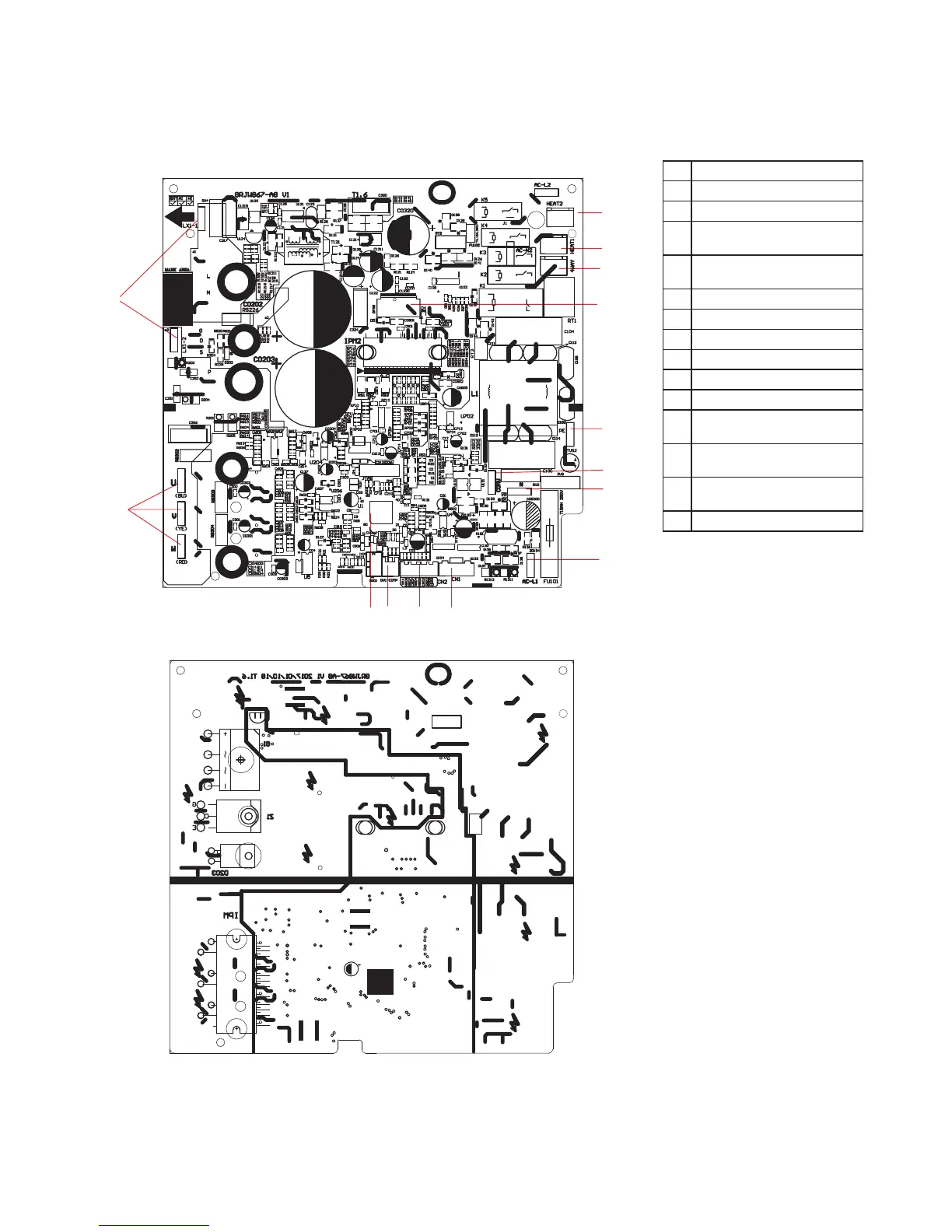

Outdoor Unit
● Top view
09/12K
● Bottom view
