Service Manual
a
b

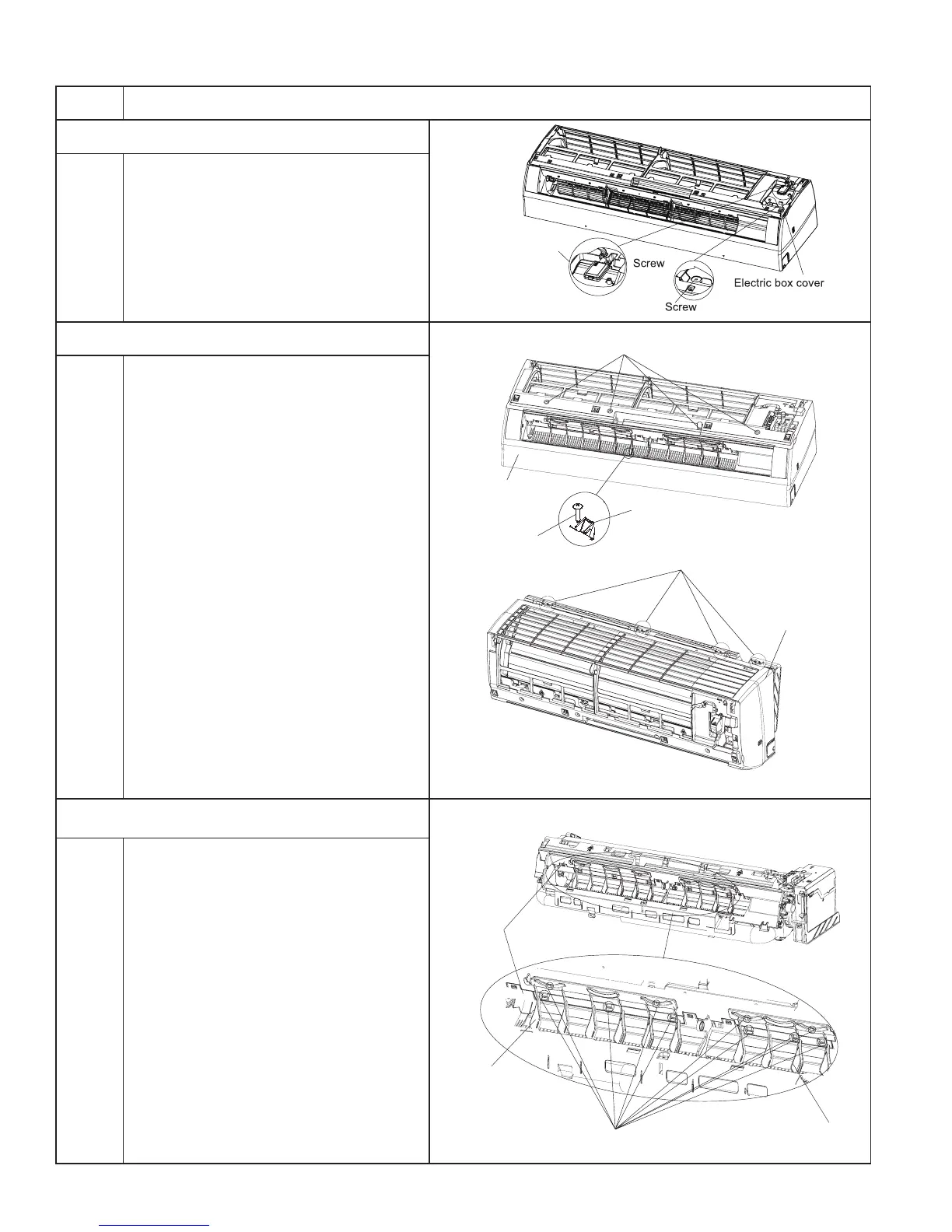

ProcedureStep
Remove the screws xing front case.
Note:
1.Open the screw caps before removing
the screws around the air outlet.
2.The quantity of screws fixing the front
case sub-assy is different for different
models.
Loosen the connection clasps between
vertical louver and bottom case to remove
vertical louver.
Loosen the connection clasps between
front case sub-assy and bottom case. Lift
up the front case sub-assy and take it out.
5. Remove front case sub-assy
6. Remove vertical louver
Front case
sub-assy
Front case
sub-assy
Clasp
Screw caps
Screws
Screw
Vertical
louver
Vertical
louver
Clasps
Bottom
case
Remove the screws xing detecting plate
and remove detecting plate(wi).
Remove the screws fixing electric box
cober2 and remove electric box2.
4. Remove detecting plate(wi) and electric box cover2
Detecting plate(WIFI)
2
