106
Service Manual
Procedure
Step

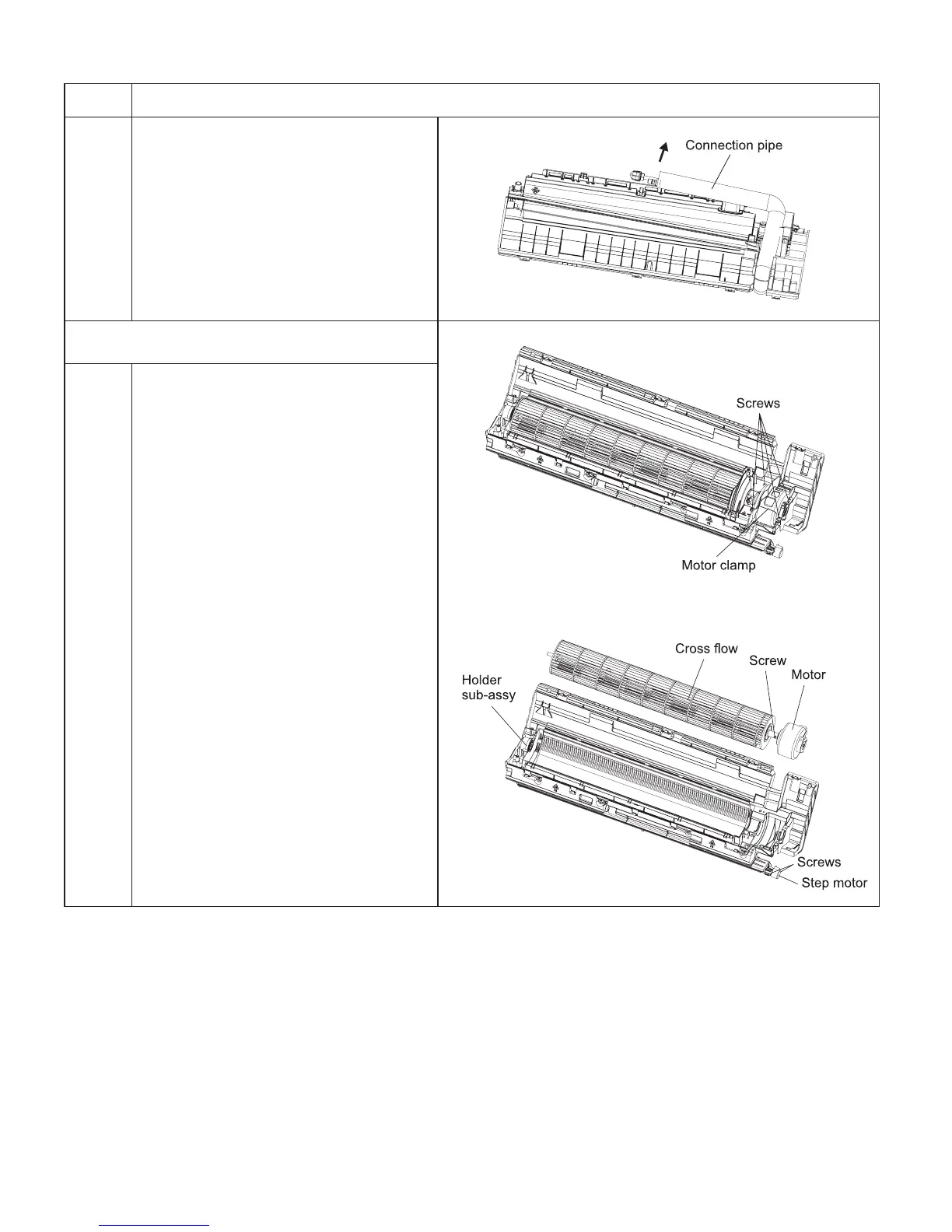

10.Remove motor and cross ow blade
Adjust the position of conncetion pipe on
evaporator up wards to remove it.
Remove the screws xing motor clamp and
then remove the motor clamp.
Remove the screws at the connection
place of cross ow blade and motor; lift
the motor and cross ow blade upwards to
remove them.
Remove the bearing holder sub-assy.
Remove the screw xing step motor and
then remove the step motor.
d
a
b
