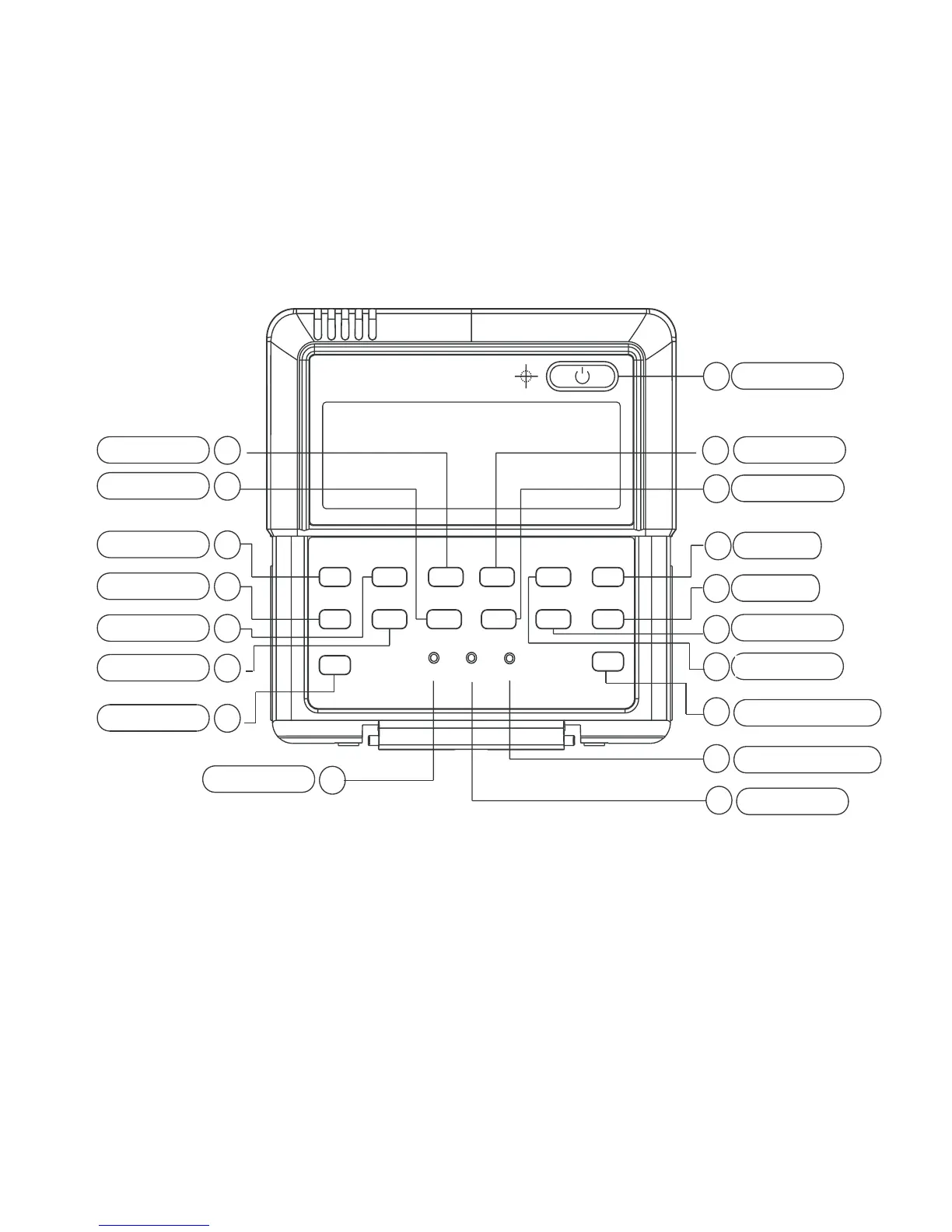

6. NAMES OF KEYS ON THE WIRE CONTROLLER
AND THE KEYPAD OPERATION DESCRIPTION
① ON/OFF button:
In the power off status, press this key
and the startup indicator led comes on,
and the wire controller enters the startup
status and keeps the current set
information such as temperature value,
timing. In the startup status, press this
button once, and the startup indicator led
goes off and transmits the shutdown
information.
1
12
13
10
11
16
2
3
4
15
7
5
9
R
6 8
14
ON/OFF
OK
CANCEL
PAGEUP
PAGEDOWN
ADDRESS / -
ADDRESS/+
HYSTERESIS
ADDRESS SET
18
TIMER SWITCH
TEMP SET
TIMER SET
MODE
ALARM CLEAR
QUERY
CLOCK
17
TIMER QUERY
LOCK
HYSTERESIS
LOCK
ADDRESS SET
