Service Manual

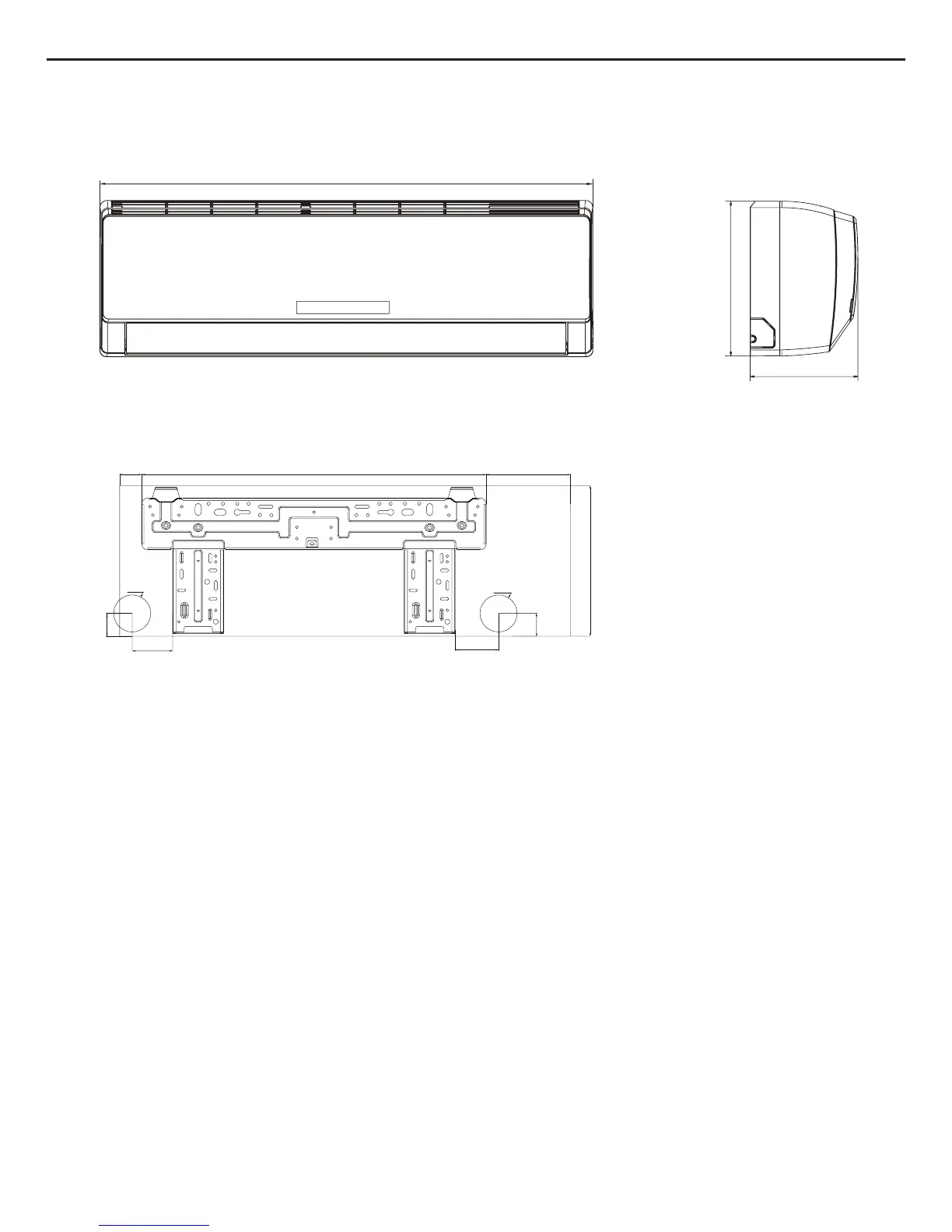

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:mm
174
790
71
40
76
40
605
37
148
Φ55
Φ55
265
265
