Sinclair ROCKY SERIES ASH-09AIR - PCB Printed Diagram

Service Manual
These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit.

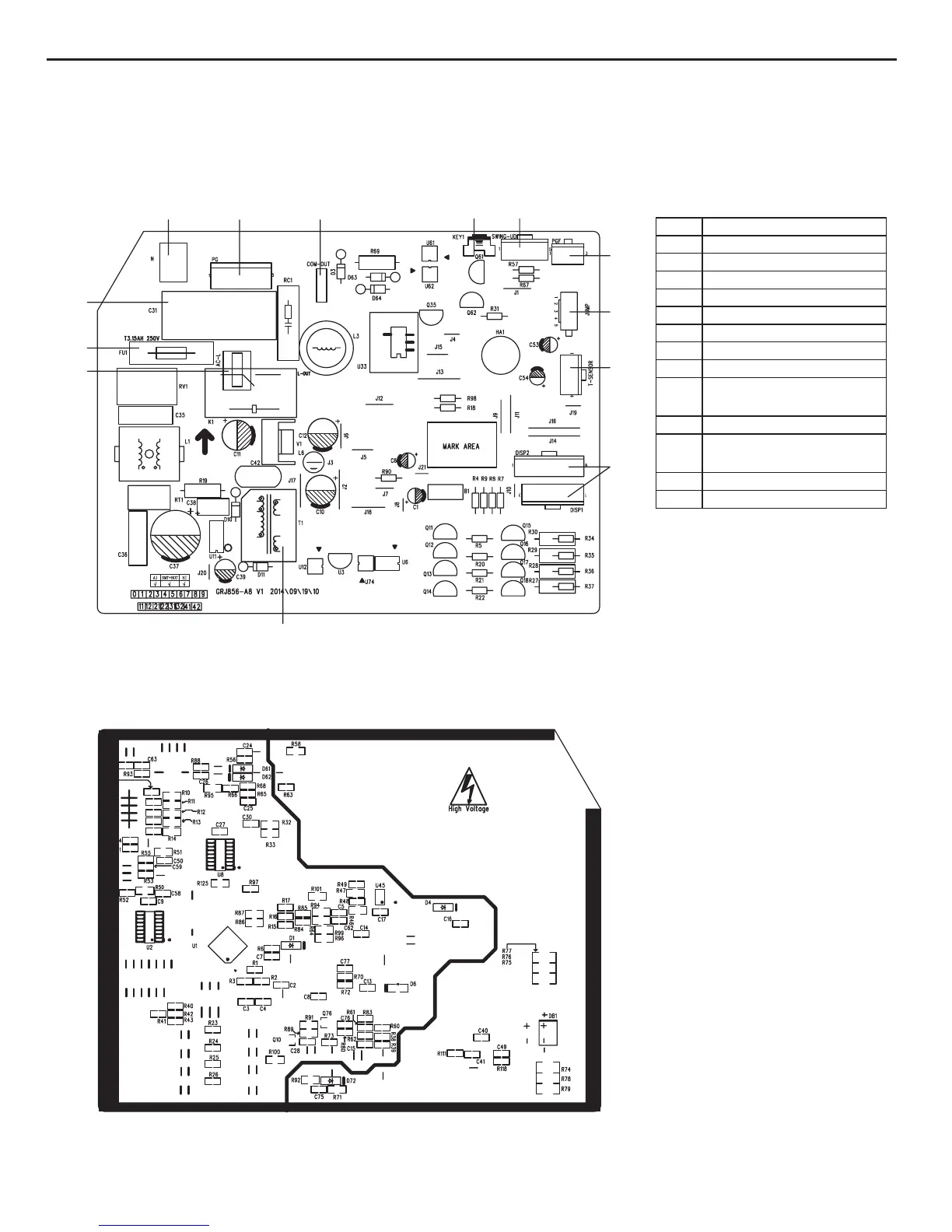

5.2 PCB Printed Diagram
No. Name
1 Live wire interface
2 Fuse
3 Fan capacitor
4 Neutral wire interface
5 Fan motor interface of PG
6 Communication interface
7 Auto button
8 up&down swing interface
9
Interface of PG feedback
interface
10 Jumper cap
11
Interface of temperature
sensor
12 display interface
13 High Frequency Transformer
● Top view
● Bottom view
Indoor Unit
1
2
3
4 5 6 7 8
9
10
11
12
13
17
