Sinclair ROCKY SERIES ASH-09AIR - Page 77

Service Manual

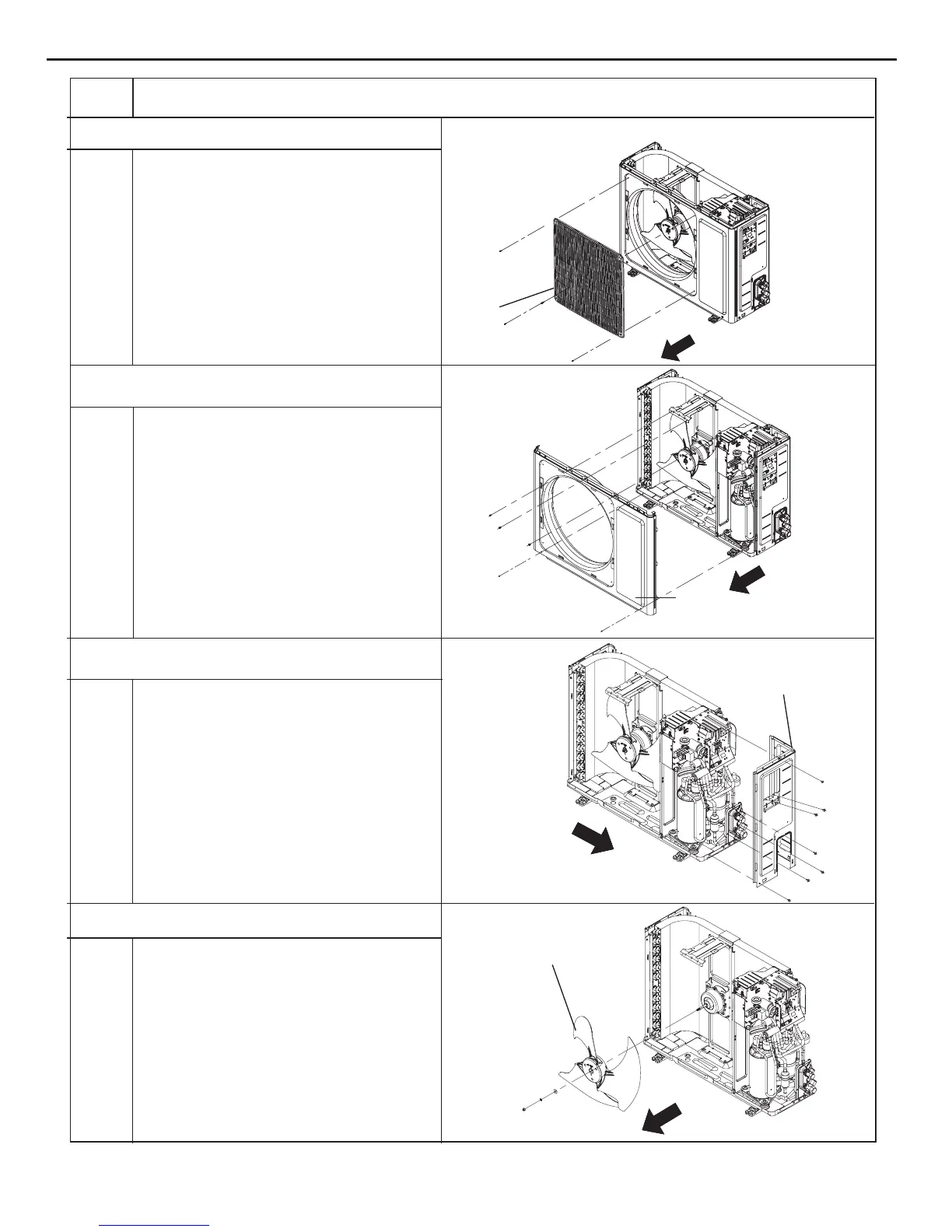

Remove connection screws between the
front grille and the front panel. Then
remove the grille.
Remove connection screws connecting
the front panel with the chassis and the
motor support and then remove the front
panel.
Remove connection screws connecting
the right side plate with the valve support
and the electric box. Then remove the
right side plate.
Remove the nut on the blade and then
remove the axial ow blade.
front panel
grille
ProcedureSteps
right side plate
axial ow blade
4. Remove grille
5. Remove front panel
6. Remove right side plate
7. Remove axial ow blade
79
