As shown in Fig. 7-31, when the jog running command (FJOG/RJOG) is valid, the
inverter will start running at the set frequency of F15.00; and when the jog running
command is invalid, the inverter will be stopped according to the stop mode.
F15.01 and F15.02 are set as the acceleration and deceleration time during operation.
Their values (e.g. 500) depend on the acceleration and deceleration time unit (F15.13), and
have different meanings and ranges. For example, F15.13=0 means that the acceleration
and deceleration time is 5.00s, and F15.13=1 means that the acceleration and deceleration
time is 50.0s.
Time t
Output
frequency
0
Fundamental
frequency of
acceleration and
deceleration time
F15.09
Jog deceleration
time
F15.02
Jog acceleration
time
F15.01
Actual
acceleration time
Actual deceleration time
Jog frequency
F15.00
Valid jog running
Invalid jog running

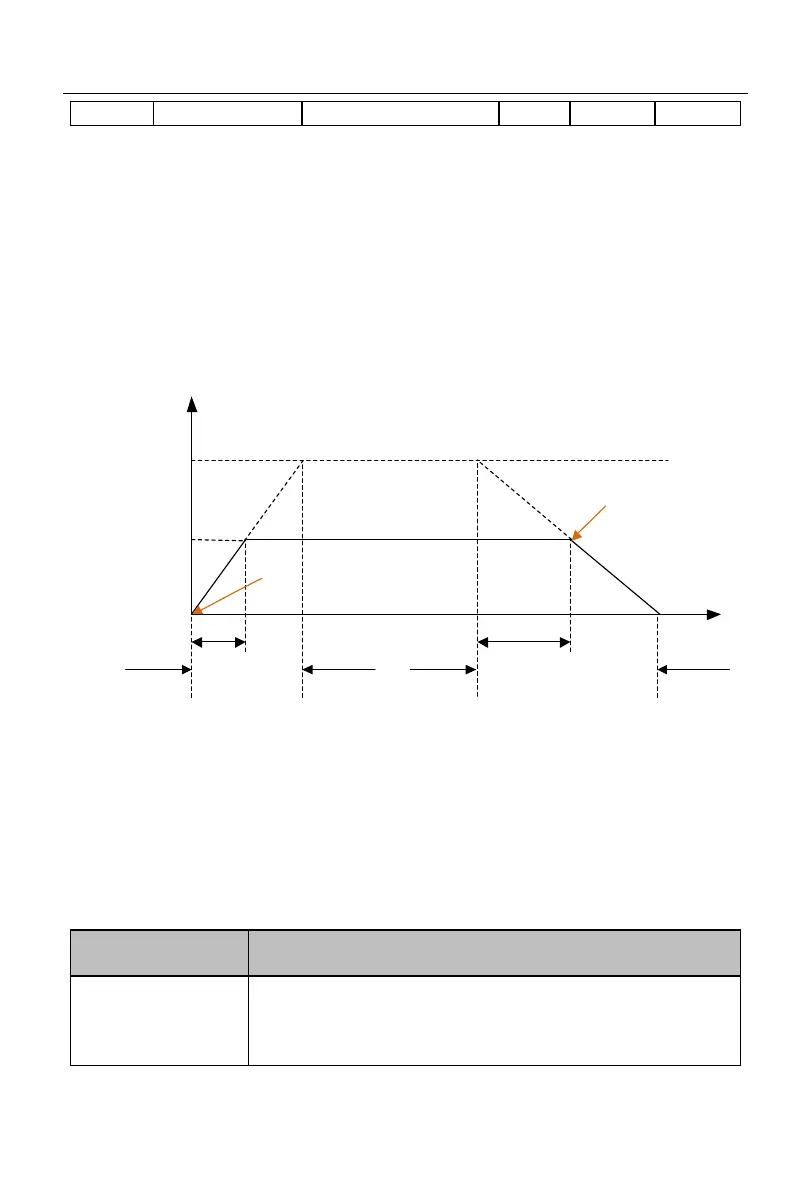

Fig. 7-31 Schematic Diagram of Jog Running
★
: The separate set frequency and acceleration/deceleration time are applied in jog
running, and not shared in normal running, but with the same physical meanings.
The triggering conditions of the jog running command vary depending on the control
mode and valid conditions, as detailed in Table 7-20.
Table 7-20 Details of Jog Running Command
Command Source
Option (F00.02)
Jog running command
0: keyboard control
Set the M.K multi-function key option (F12.00) to “1: forward
jog” or “2: reverse jog”. Press the M.K key to enable the jog
running command and release this key to disable the jog running
command.
