ACCESSORIES (Continued)
Transparent
Bobbin
Regular Needle
Twin Needle
Ball-point
(Yellow Band) Needle
A
Small and Large
Spool Holders
Detaohable
Spool Fin
BOBBINS
Transparent, drop-in bobbin,
thread supply at a glance.
shows
NEEDLES
• Type 705 H needles for all-purpose
sewing
^ Type 705 HS ball-point (yellow
band) needles, for sewing knits and
stretch fabrics.
Type 705 H twin needle for decora-
•tive twin-needle stitching.
ATTACHING FEED-COVER PLATE
1. Raise presser foot. (You do not need
to remove the foot).
2. Turn hand wheel toward you until Is
at Its habest position.
3. Slide feed-cover plate under the
presser foot, until securing pins are
located directly over holes in needle
plate. Then snap down.

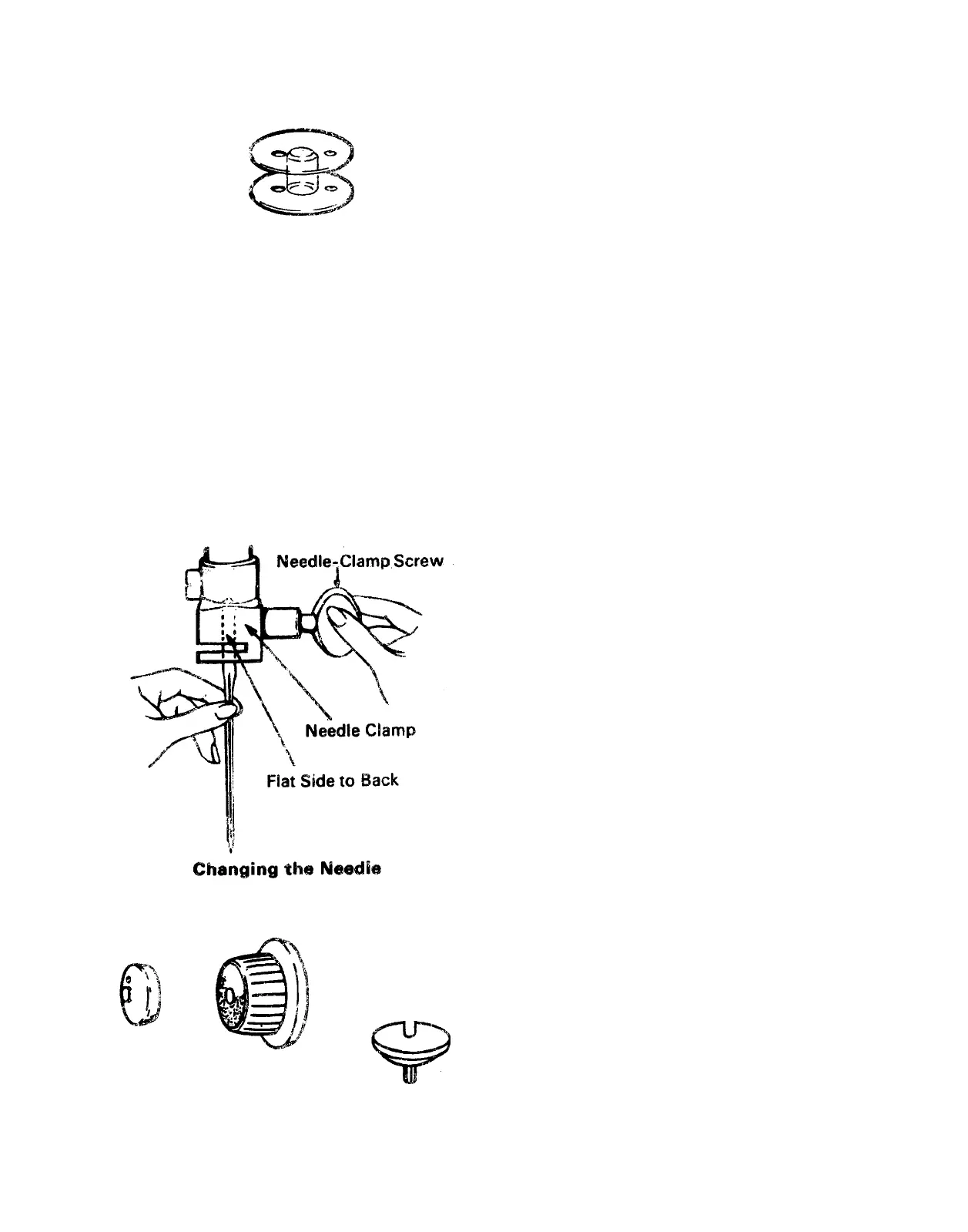

CHANGING THE NEEDLE
The needle clamp is designed so that the
needle can only be inserted with the flat
side of the needle to the back. To change
the needle:
1. Raise needle bar to its highest position,
loosen needle-clamp screw, and re
move needle.
2. Insert new needle in clamp, with thé
flat side of the needle to the back; push
it up as far as it will go.
3. Tighten needle-clamp screw.
SPOOL HOLDERS
The spool holders hold spools of various
sizes in position on the horizontal spool
pin. Because spool does not turn, thread
unwinds smoothly.
DETACHABLE SPOOL PIN
The secondary detachable spool pin is
used for twin-needle sewing.
