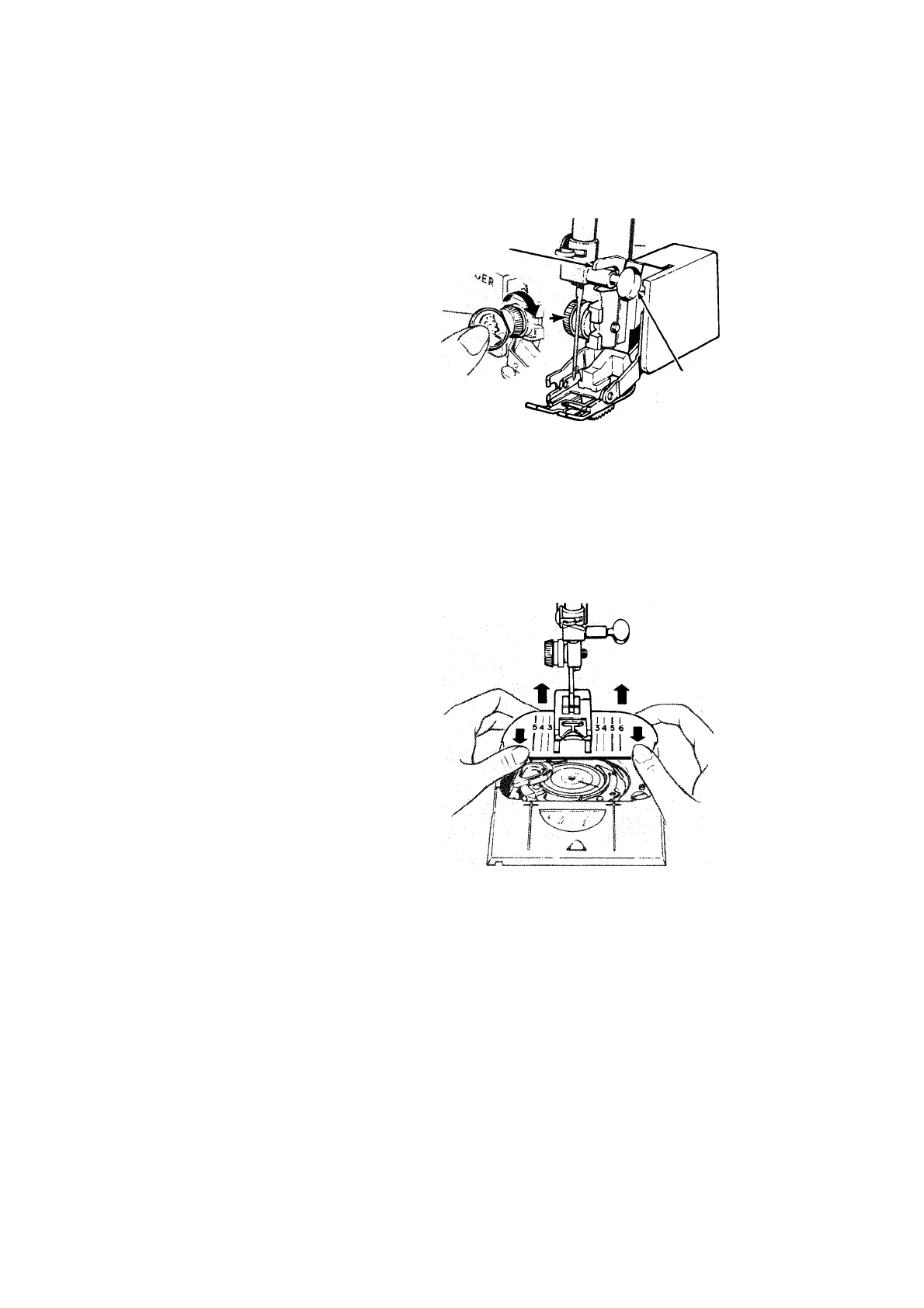

The
Even Feed
Foot
• Guide Even Feed foot into position from back
of machine, making sure the movabie arm
straddies the needie ciamp. Tighten
presser-foot screw secureiy with a coin. To
remove, ioosen screw and guide foot to the
right and away from you.
Movable
Arm
Needle
Clamp
Changing Even Feed Foot
CHANGING PLATES
(Note; Remove bobbin if it contains thread in
order to prevent thread being caught when
piate is repiaced.)
1. Raise take-up iever to its highest position
by turning the hand wheel toward you.
2. Raise presser foot.
3. Open slide plate. Press down on front edge
of plate and lift up and out.
4. Position new plate over pins and release.
Plate is drawn into position by magnets.
See special instructions on page 30 for
attaching straight-stitch plate for
chainstitching.
5. Close slide piate.
Removing Needle Piate
