18

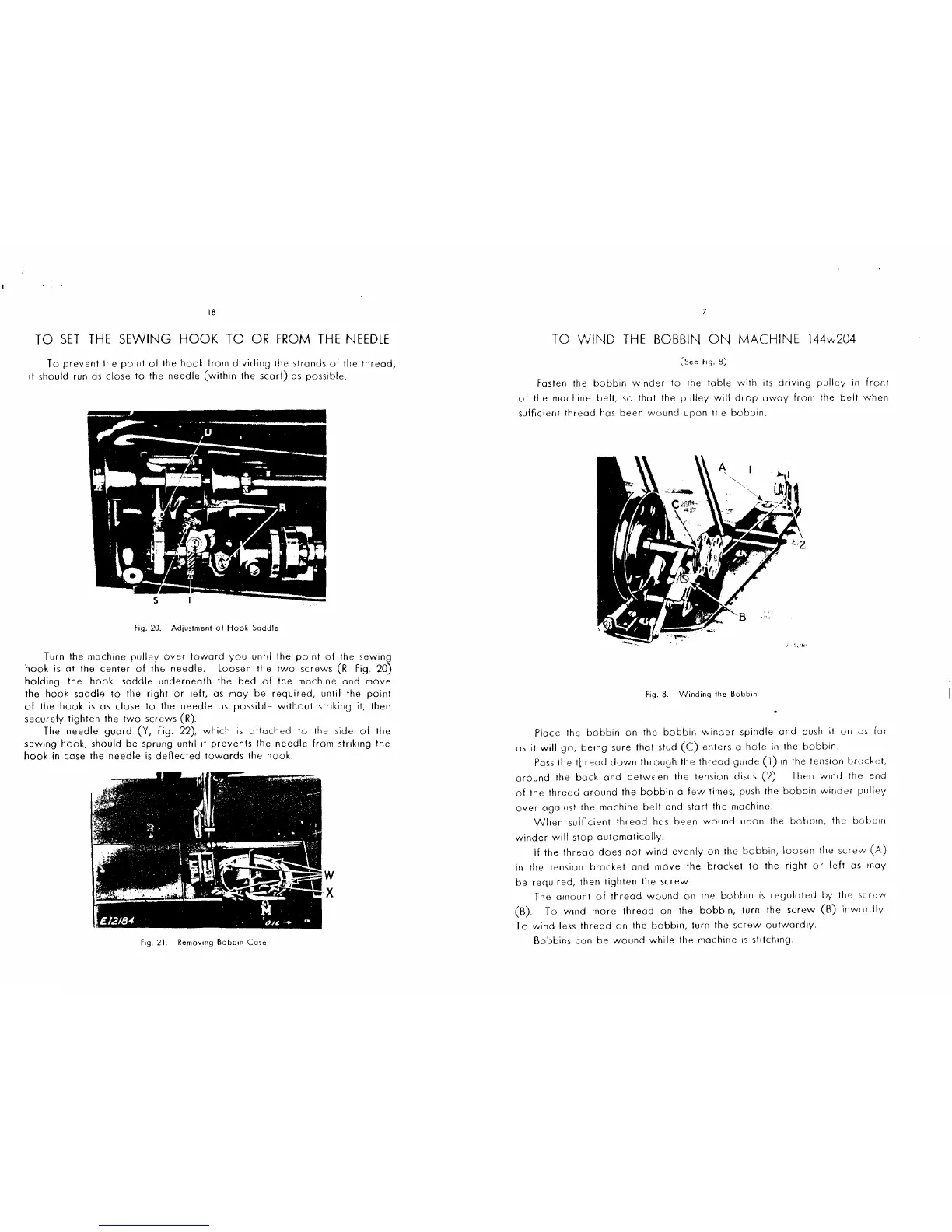

TO SET THE SEWING HOOK TO OR FROM THE NEEDLE
To prevent the point of the hook from dividing the strands of the thread,
it should run as close to the needle (within the scarf) as possible.
fig. 20. Adjustment of Hook Saddle
Turn the machine pulley over toward you until the point of the sewing
hook is at the center of thb needle. loosen the two screws (R, Fig. 20)
holding the hook saddle underneath the bed of the machine and move
the hook saddle to the right or left, as moy be required, until the point
of the hook is as close to the needle as possible without striking it, then
securely tighten the two screws (R).
The
needle guard (Y, Fig. 22), which is attached to the side of the
sewing hook, should be sprung until it prevents the needle from striking the
hook in case the needle is denected towards the hook.
Fig. 21 Removing Bobb1n Case
w
X
TO WIND THE BOBBIN ON MACHINE 144w204
(See fig. 8)
Fasten the bobbin winder to the table with its dr1v1ng pulle·; in front
of the machine belt, so that the pulley will drop away from the belt when
sufficient thread has been wound upon the bobbin.
fig. 8. Winding the Bobbin
Place the bobbin on the bobbin winder Sf.lindle and push it on as fur
as it will go, being sure that stud (C) enters a hole in the bobbin.
Pass the tbread down through the thread guide (1) in the tension brudtet,
around the bock and betwe•en the tension discs (2). Then wind the end
of the thread around the bobbin a few times, push the bobbin winder pulley
over against the machine belt and start the machine.
When suff1cient thread has been wound upon the bobbin, the bobb1n
winder will stop automaticolly.
If the thread does not wind evenly on the bobbin, loosen the screw (A)
in the tension bracket and move the bracket to the right or left as may
be required, then tighten the screw.
The amount of thread wound on the bobuin is reguloted uy the scrt:w
(B). To wind rnore thread on the bobbin, turn the screw (B) inwardly.
To wind less thread on the bobbin, turn the screw outwardly.
Bobbins can be wound while the machine is stitching.
