Singer 2852 - Needle to Hook Relationship

Service Manual
Needle to Hook Relationship
70
Rev. n . o

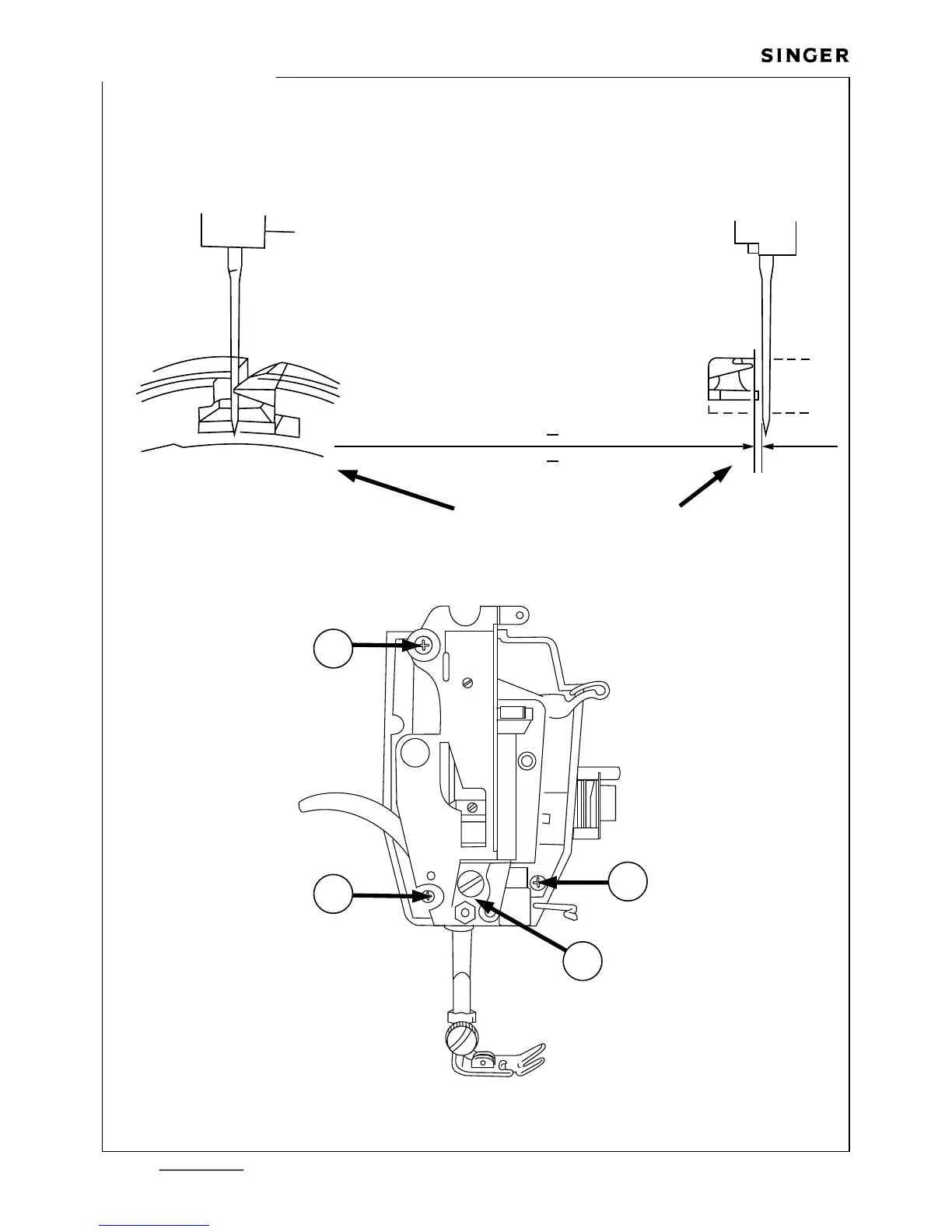

ILLUSTRATION “A"
0,00 mm INTERFERENCE 0,10 mm CLEARANCE
.000” .004”INTERFERENCE CLEARANCE
A
B
D
C
