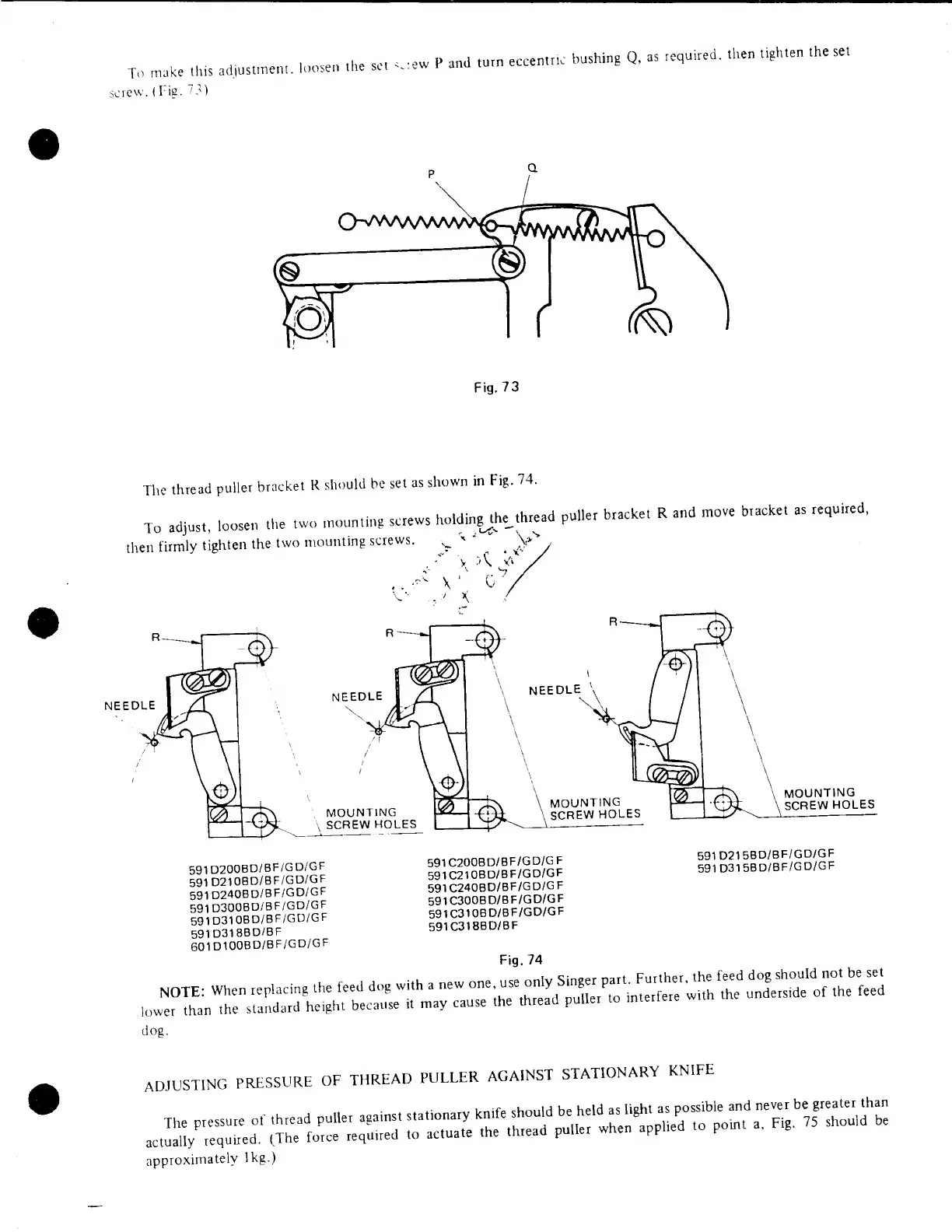

To make this adjustment, loosen the set
screw. (l ig. 73)
w P and turn eccentric bushing Q. as required, then tighten the set
The thread puller bracket R should be set as shown in Fig. 74.
To adjust, loosen the two mounting screws holdingjhejhread puller bracket
then firmly tighten the two mounting screws. v ' * “ V' >
R and move bracket as required,
591 D200BD/BF/GD/GF
591 D210BD/BF/GD/GF
591 D240BD/BF/GD/GF
591 D300BD/BF/GD/GF
591 D310BD/BF/GD/GF
591 D31 8BD/BF
601D100BD/BF/GD/GF
591 C200BD/BF/GD/GF
591 C210BD/BF/GD/GF
591 C240BD/BF/GD/GF
591 C300BD/BF/GD/GF
591 C310BD/BF/GD/GF
591 C318BD/BF
591 D21 5BD/BF/GD/GF
591 D31 5BD/BF/GD/GF
Fig. 74
NOTE: When replacing the feed dog with a new one, use only Singer part
lower than the standard height because it may cause the thread puller to
. Further, the feed dog should not be set
interfere with the underside of the feed
dog.
adjusting pressure of thread puller against stationary knife
approximately 1kg.)
