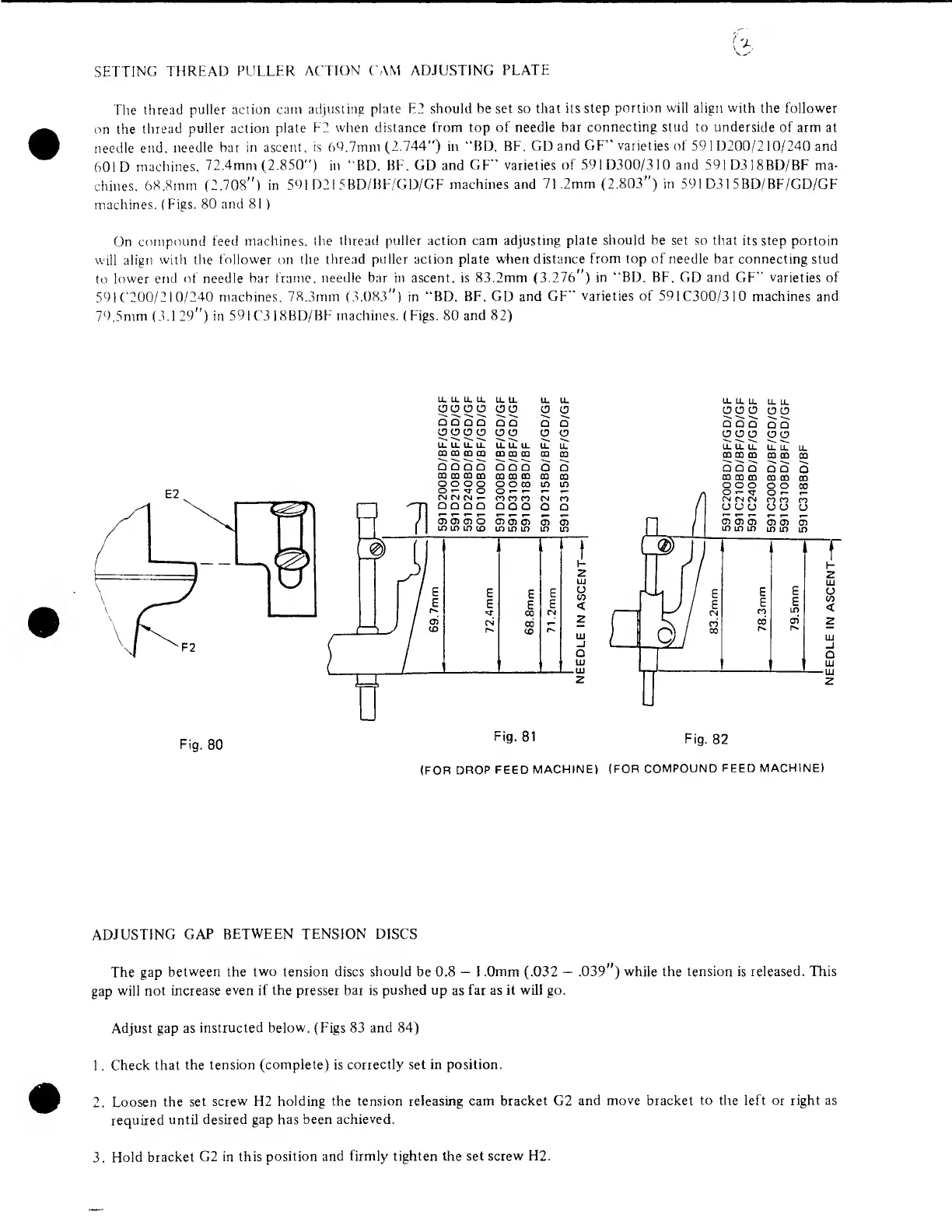

SETTING
THREAD
PULLER
ACTION
CAM
ADJUSTING
PLATE
The
thread
puller
action
cam
adjusting
plate
E2
should
beset
so
that
its
step
portion
will
align
with
the
follower
on
the
thread
puller
action
plate
F2
when
distance
from
top
of
needle
bar
connecting
stud
to
underside
of
arm
at
needle
end.
needle
bar
in
ascent,
is
69.7mm
(2.744")
in
"BD,
BF.
GD
and
GF”
varieties
ot
591
D200/210/240
and
601D
machines.
72.4mm
(2.850")
in
"BD.
BF.
GD
and
GF”
varieties
of
591D300/310
and
591D318BD/BF
ma¬
chines.
68.8mm
(2.708”)
in
591
D21
5BD/BF/GD/GF
machines
and
71.2mm
(2.803”)
in
591
D31
5BD/BF/GD/GF
machines.
(Figs.
80
and
81
)
On
compound
feed
machines,
the
thread
puller
action
cam
adjusting
plate
should
be
set
so
that
its
step
portoin
will
align
with
the
follower
on
the
thread
puller
action
plate
when
distance
from
top
of
needle
bar
connecting
stud
to
lower
end
of
needle
bar
frame,
needle
bar
in
ascent,
is
83.2mm
(3.276”)
in
"BD.
BF,
GD
and
GF”
varieties
of
591
C200/21
0/240
machines,
78.3mm
(3.083”)
in
“BD.
BF.
GD
and
GF”
varieties
of
591C300/3
10
machines
and
79.5mm
(3.1
29”)
in
591C318BD/BF
machines.
(
Figs.
80
and
82)
U.
U.
U.
U.
LL
CL.
LL
OOOU
(30
U3
o
QQOQ
QQ
Q
O
0<£0
O
C3
O
C3
O
LL
IL
LL
U_
LL
CD
00
CO
CD
CD
CD
CD
0Q
CD
QQOQ
CD
CD
CD
CD
Q
Q
Q
CD
CD
CO
OOU
Q
Q
Q
O
O
O
IL
Li.
ou
Q
Q
O
<J
CD
CD
CD
CD
CO
CD
QQQ
cd
m
m
O
O
CD
CD
(FOR
DROP
FEED
MACHINE)
Fig.
82
(FOR
COMPOUND
FEED
MACHINE)
ADJUSTING
GAP
BETWEEN
TENSION
DISCS
The
gap
between
the
two
tension
discs
should
be
0.8
1.0mm
(.032
.039”)
while
the
tension
is
released.
This
gap
will
not
increase
even
if
the
presser
bar
is
pushed
up
as
far
as
it
will
go.
Adjust
gap
as
instructed
below.
(Figs
83
and
84)
1.
Check
that
the
tension
(complete)
is
correctly
set
in
position.
2.
Loosen
the
set
screw
H2
holding
the
tension
releasing
cam
bracket
G2
and
move
bracket
to
the
left
or
right
as
required
until
desired
gap
has
been
achieved.
3.
Hold
bracket
G2
in
this
position
and
firmly
tighten
the
set
screw
H2.
