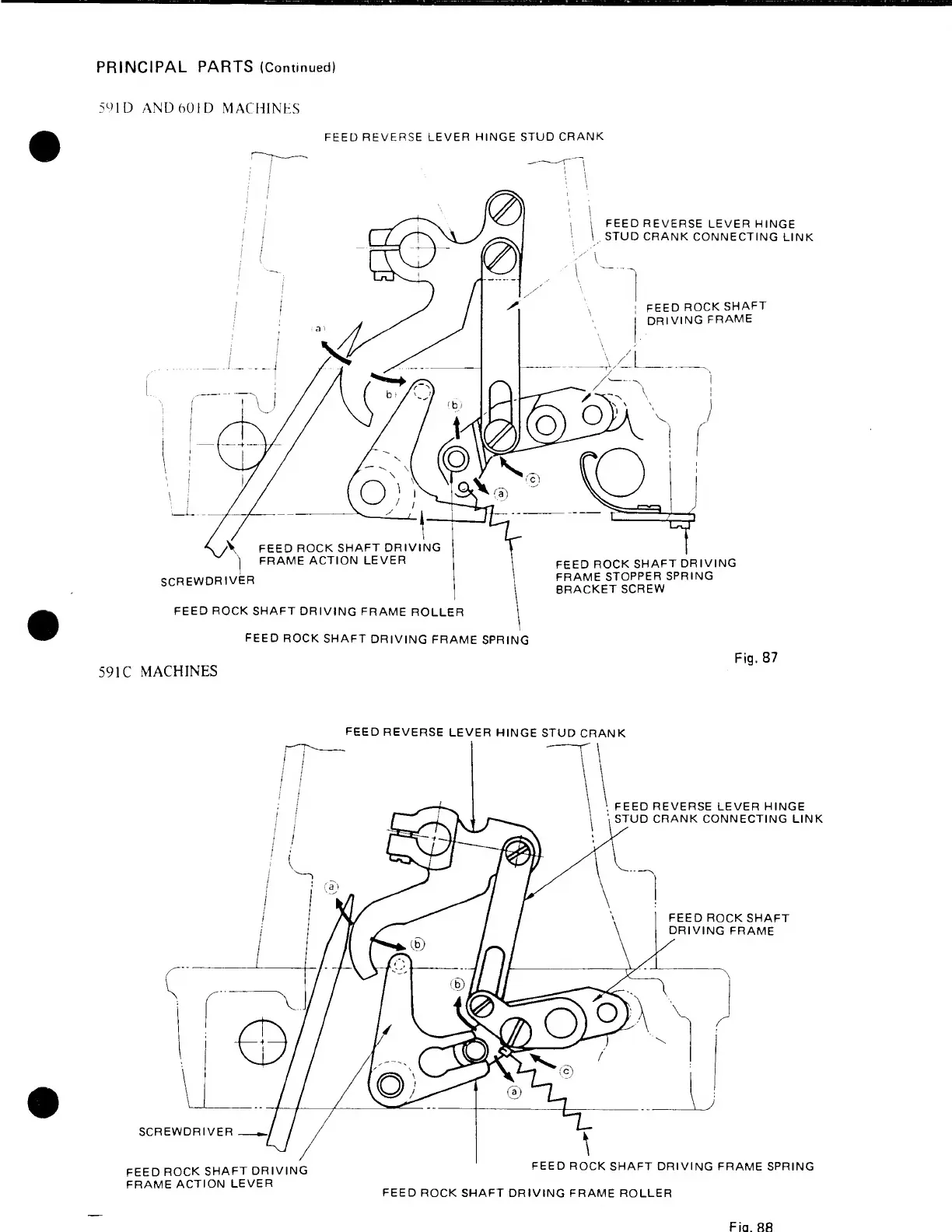

PRINCIPAL PARTS (Continued)
>9ID AND 60ID MACHINES
FEED REVERSE LEVER HINGE STUD CRANK
FEED REVERSE LEVER HINGE
STUD CRANK CONNECTING LINK
FEED ROCK SHAFT
DRIVING FRAME
/J$m
oD
A FEED ROCK SHAFT DRIVING
'l FRAME ACTION LEVER
SCREWDRIVER
FEED ROCK SHAFT DRIVING FRAME ROLLER
FEED ROCK SHAFT DRIVING
FRAME STOPPER SPRING
BRACKET SCREW
591C MACHINES
FEED ROCK SHAFT DRIVING FRAME SPRING
Fig. 87
FEED REVERSE LEVER HINGE STUD CRANK
FEED REVERSE LEVER HINGE
STUD CRANK CONNECTING LINK
FEED ROCK SHAFT
DRIVING FRAME
SCREWDRIVER
FEED ROCK SHAFT DRIVING
FRAME ACTION LEVER
FEED ROCK SHAFT DRIVING FRAME SPRING
FEED ROCK SHAFT DRIVING FRAME ROLLER
