- 32 -

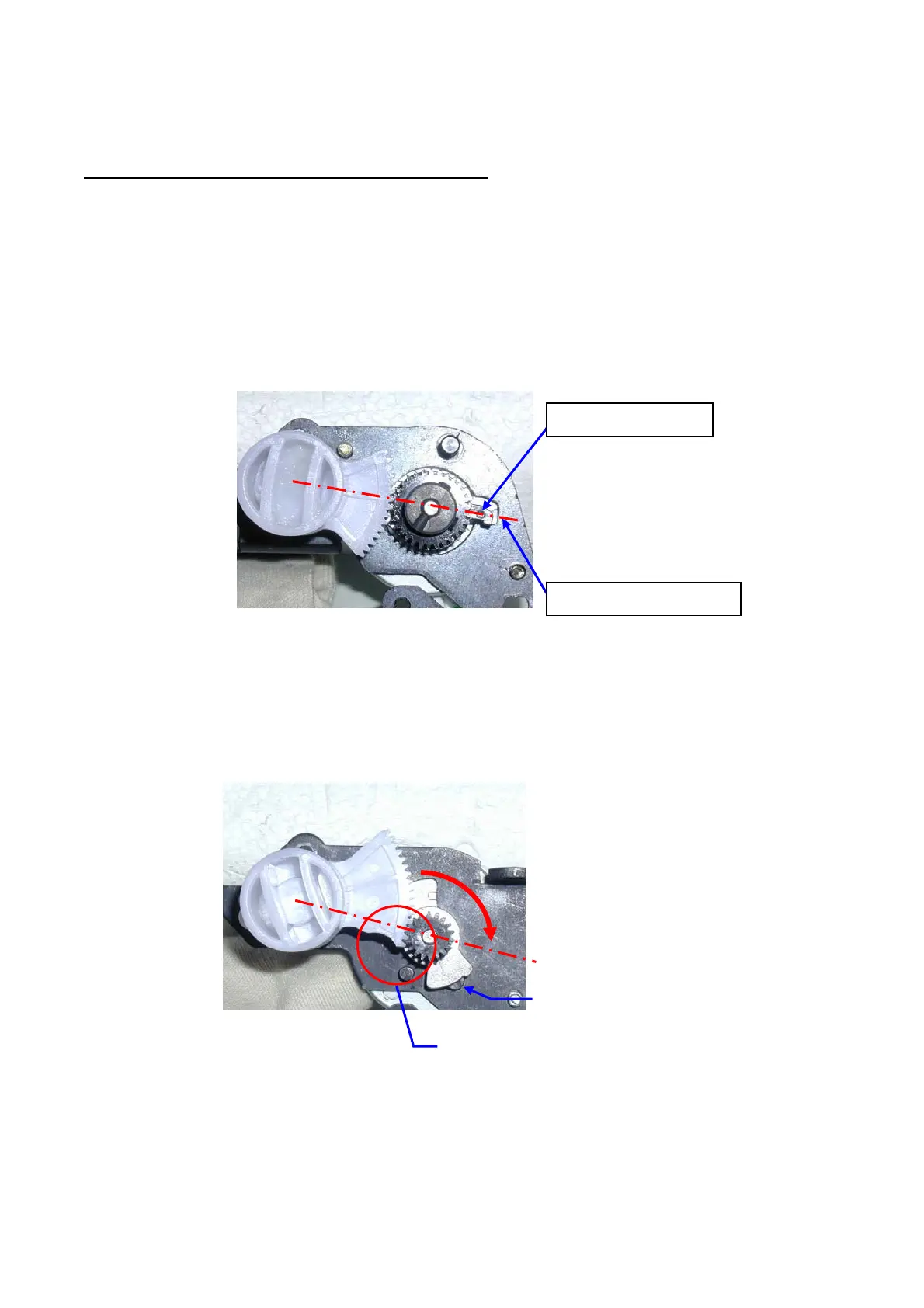

Meshing motor gear with feed regulator gear
When meshing motor gear with feed regulator gear again, follow procedures below:
A. Half-step version
Mesh these gears so that centers of feed regulator and motor gear and concave hole may be
positioned in alignment
B. Full-step version
Rotate motor gear clockwise to touch it with stopper pin and mesh these gears so that feed
regulator gear may be positioned with full two gears below line from feed regulator to motor
gear
Almost straight line
Concave portion
Full two gears below line
Stopper pin
