Singer CONFIDENCE 7463 - Sec. 16 Motor Belt Tension; Adjusting Motor Belt Tension

- 42 -
Sec. 16 Motor belt tension
Adjustment
1. Remove the front cover.

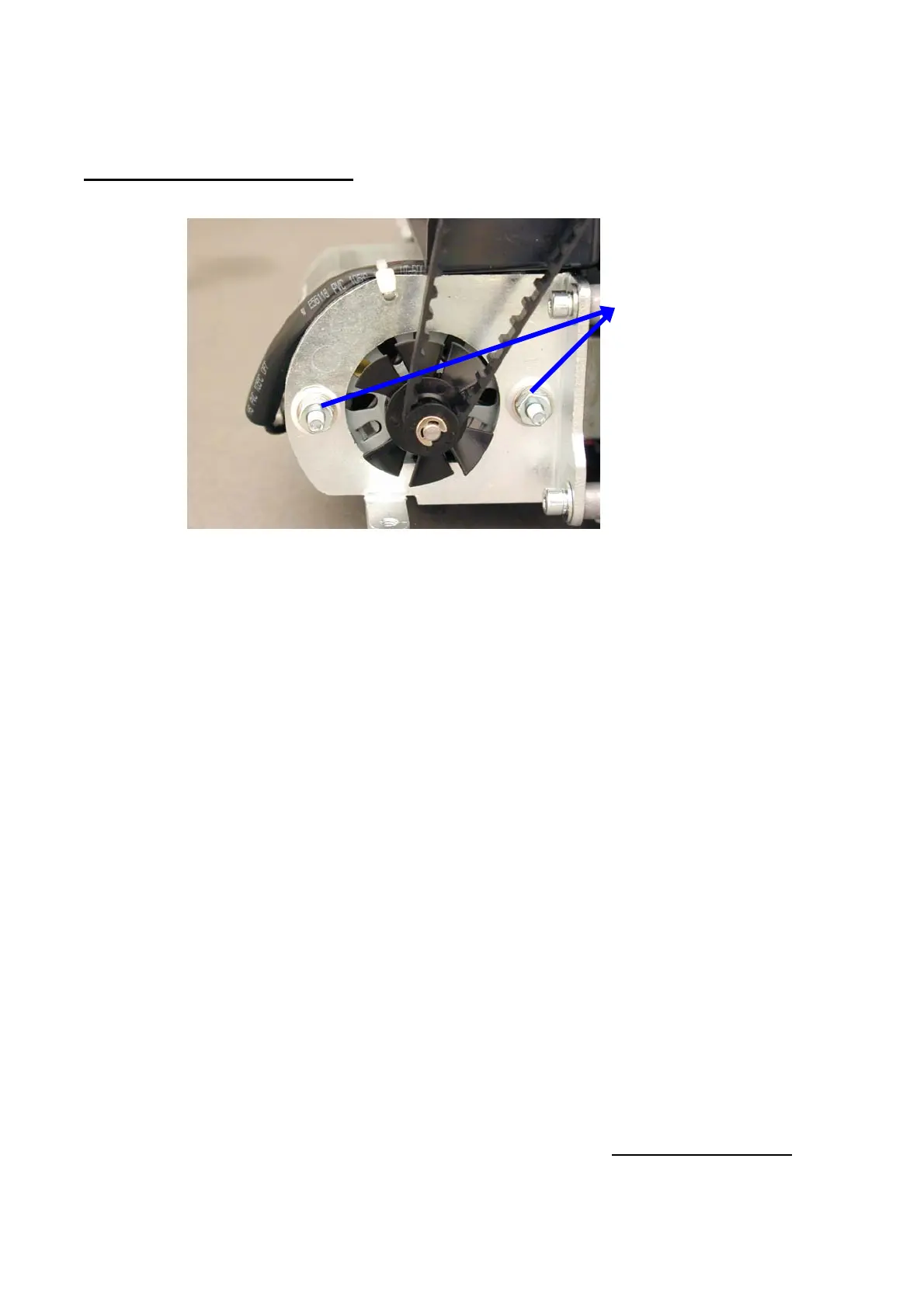

2. Loosen two nuts (A) and adjust belt tension so that belt maybe bent about 5 mm when it is
pushed by pressure of 100g between upper shaft and motor.
3. Tighten the two nuts after checking the belt tension.
Added : November, 2006
A
