Singer CONFIDENCE 7463 - Page 41

- 41 -

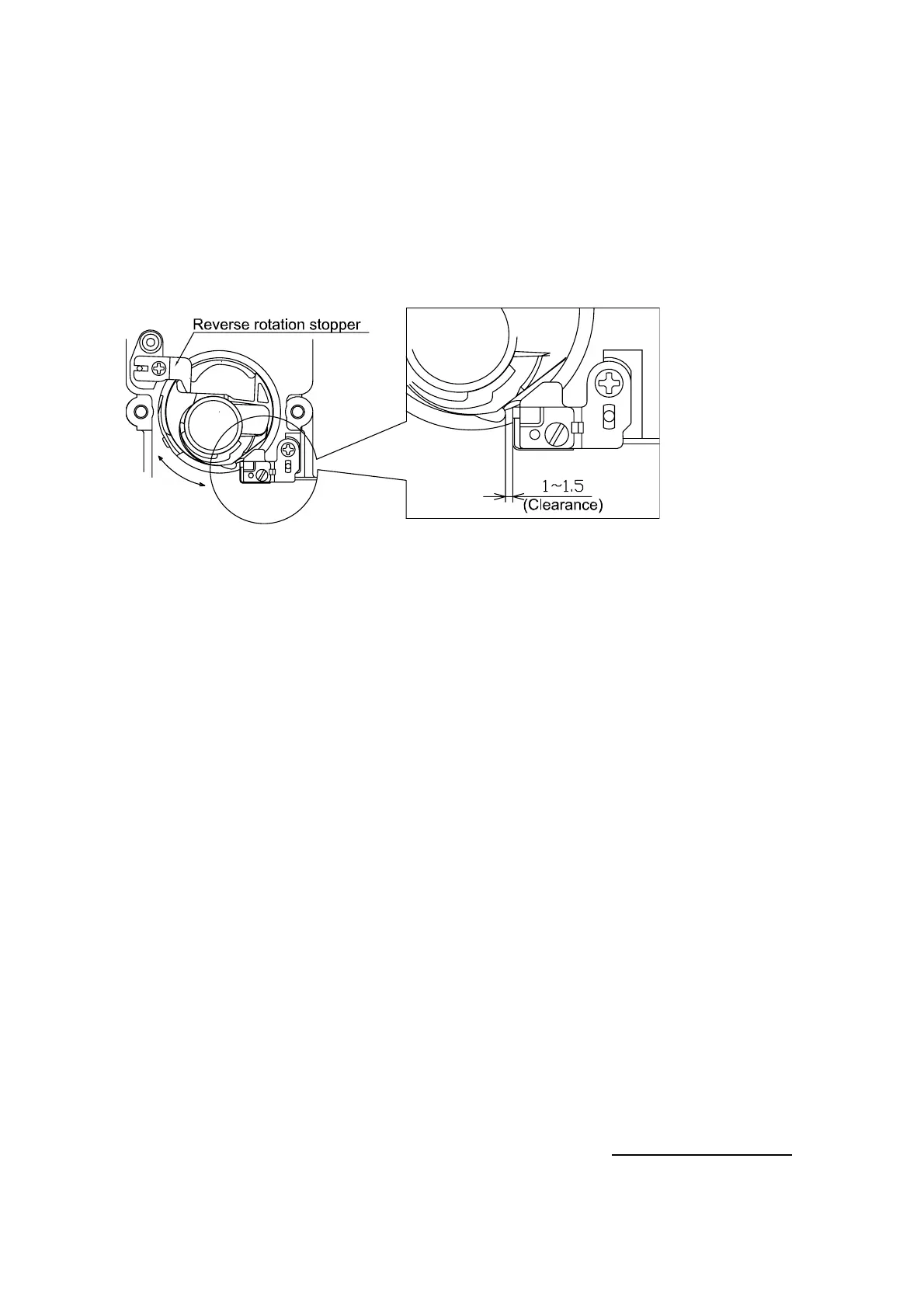

3. Adjust the position of reverse rotation stopper so that there may be a clearance of 1 to 1.5 mm
between the projection and plate spring while turning the bobbin case back and forth.
Tighten the fixing screw securely.
4. Place the bobbin cover plate into position.
Added : November, 2006
