C. Position of feed regulator at zero feed
D. Position of feed regulator at maximum backward feed
Added: January, 2006

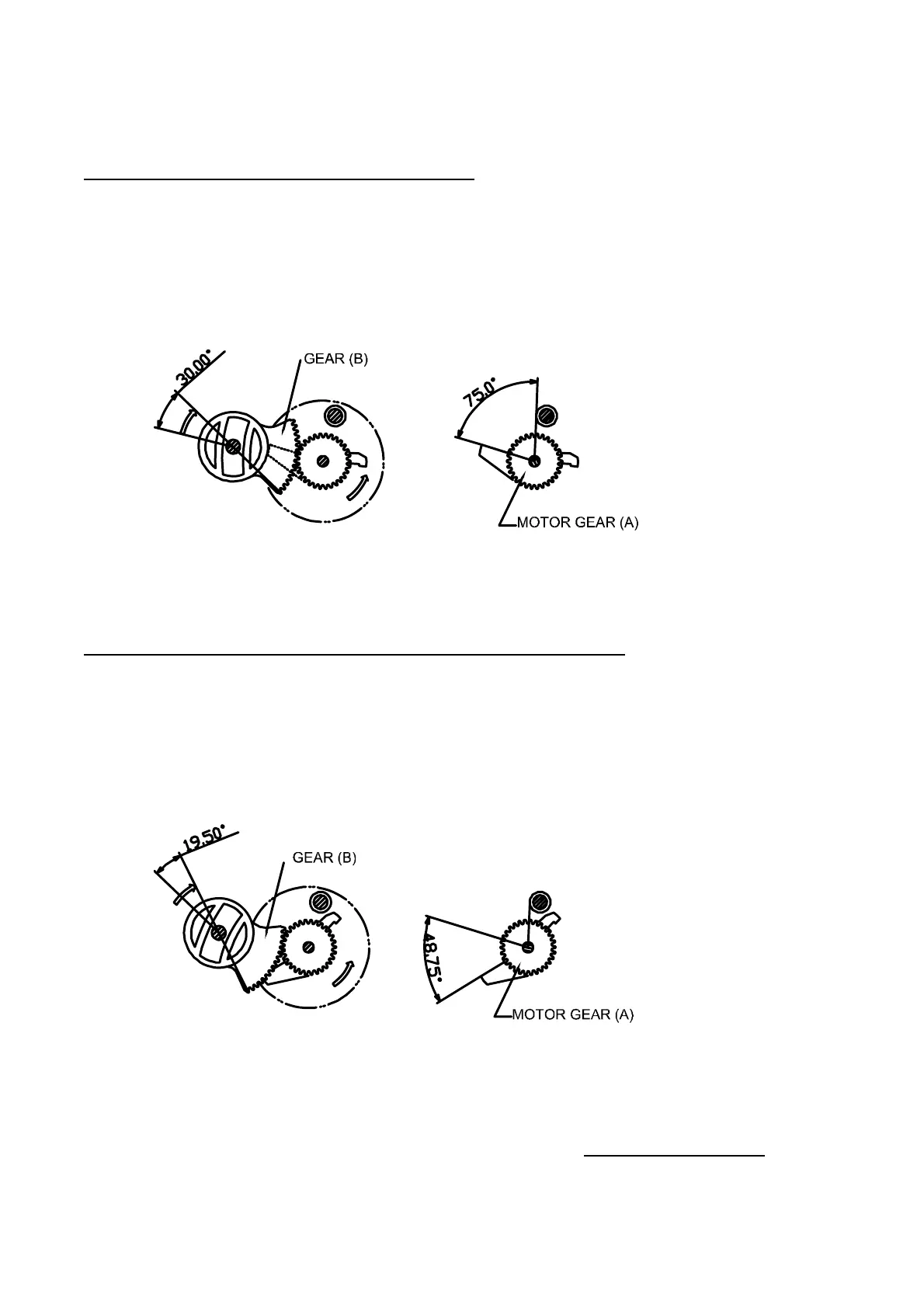

Position of feed zero is shifted with 20 pulses from the origin point and motor gear (A) is rotated at 75
(20 multiplied by 3.75) degrees. Motor gear (B) is rotated at 30 (20 multiplied by 3.75 divided by 2.5)
degrees.
Maximum possible backward feed amount is generated at the position shifted with 33 pulses from
the origin position and motor gear (A) is rotated with 13 pulses at 48.75 (13 multiplied by 3.75) degrees.
Gear (B) is rotated at 19.5 (48.75 divided by 2.5) degrees.
