Singer CP17 - Getting to know your machine; Principal parts

5, 6, 8, 10 Stitch Sewing Machine
1 Getting to know your machine

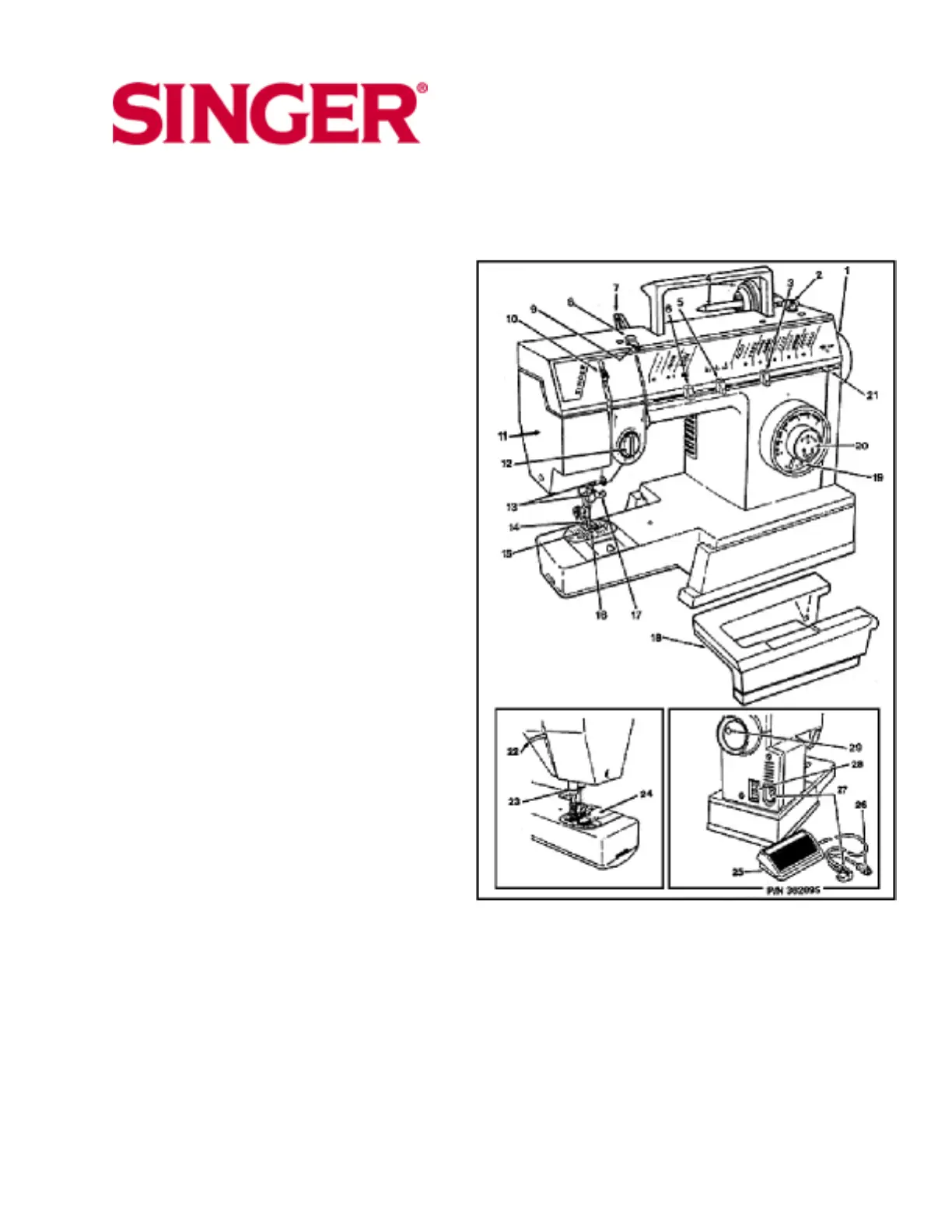

Principal parts
1. Hand wheel
2. Bobbin winder
3. Pattern selector lever (only for machines with
5, 6, 8 and 10 stitches)
4. Horizontal spool pin and holder
5. Needle position selector
6. Stitch width lever
7. Snap-in thread guide
8. Bobbin winder tension disc
9. Thread guide
10. Take up lever
11. Face plate
12. Needle thread tension dial
13. Thread guides
14. Snap on presser foot
15. Feed system
16. Needle plate
17. One-way needle clamp
18. Removable extension table
19. Stitch length dial/ four-step buttonhole (only
for machines with 5, 6, 8 and 10 stitches)
20. Push button reverse
21. Stitch balance control (only for machines with
6, 8 and 10 stitches)
22. Presser foot lifter
23. Thread cutter
24. Slide plate
25. Foot control
26. Electrical lead
27. Machine plug
28. Power and light switch
29. Bobbin winding indent
