Singer FUTURA XL-400 User Manual

6
1. Pre-tension guide
2. Bobbin winding tension disk
3. Thread tension control
4. Threading lever
5. Face cover
6. Thread cutter/holder
7. Extension table (Accessory box)
8. Bobbin winder spindle
9. Bobbin winder latch
10. Operation buttons
11. Horizontal spool pin
12. Handle
13. Hand wheel
14. Power/light switch
15. Cord socket
16. Buttonhole lever
17. Feed dog control
18. Presser foot lifter
19. Identication plate
20. Thread guide
21. Twin thread guide
22. Presser foot screw
23. Needle
24. Bobbin cover plate
25. Needle bar
26. Alternate thread cutter
27. Foot release button
28. Needle clamp screw
29. General purpose foot
30. Feed dogs
31. Needle plate
32. Bobbin cover release button
33. Embroidery unit
34 Hoop release lever
35. Carriage
36. Handle
37. Accessory drawer
38. Hoop bracket
39. Release lever
40. Connector
41. Large hoop
42. Inner frame
43. Outer frame
44. Hoop adjusting screw
45. Hoop mounting plate
46. Small hoop
47. Power line cord
48. Foot control
49. USB cable
50. Instruction manual
NOTE: Be sure the USB cable is
attached to your machine when
doing embroidery.

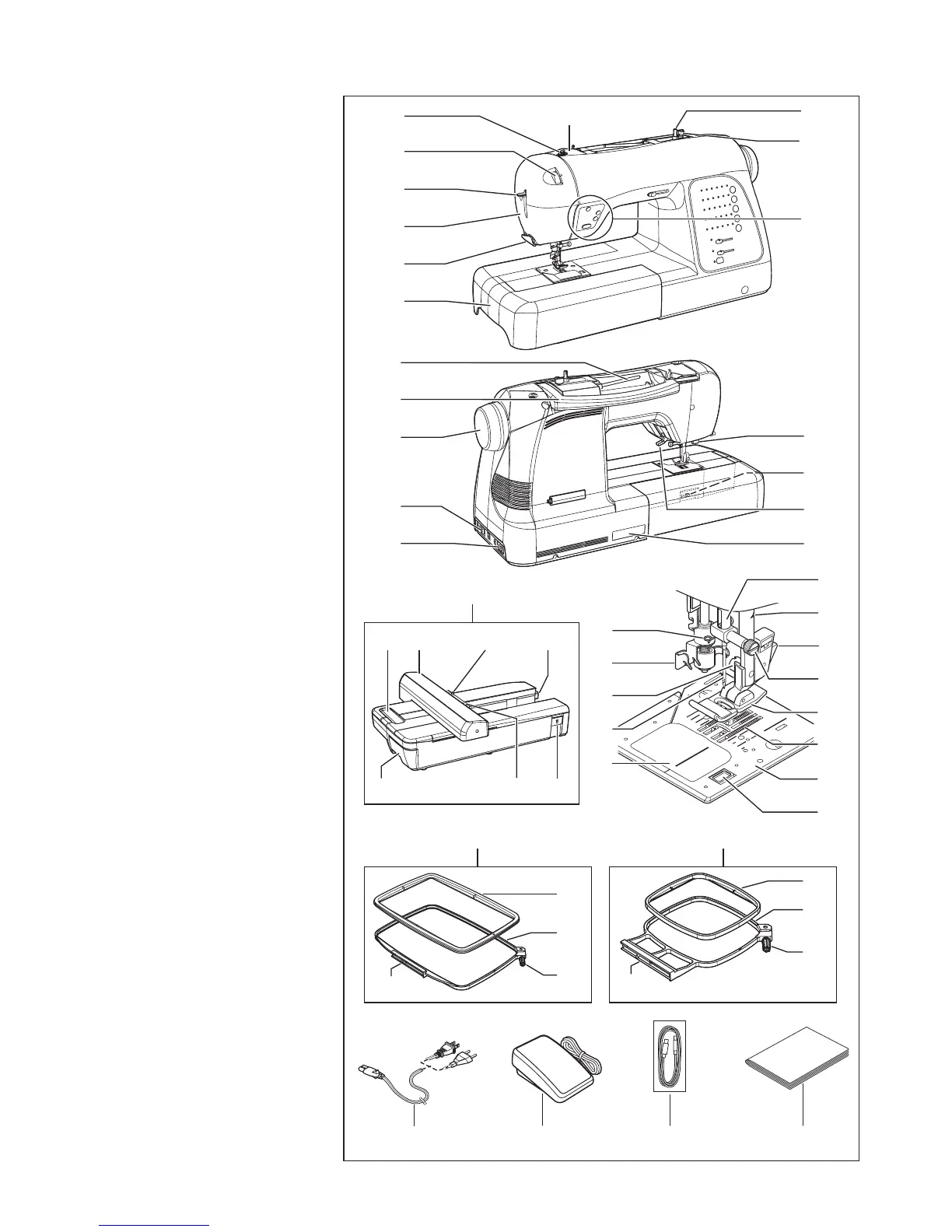

1. GETTING TO KNOW YOUR MACHINE
MACHINE IDENTIFICATION
34
3837 39
4036 35
47
48 50
33
46
43
42
44
45
49
43
42
44
45
41
12
11
13
14
15
16
17
18
19
3
2 1
4
5
6
7
8
9
10
20
21
22
23
24
26
27
28
29
31
32
30
25

Singer FUTURA XL-400 Specifications

General

Built-in Embroidery Designs	125
USB Connectivity	Yes
Automatic Needle Threader	Yes
Embroidery Software Included	Yes
Built-in Stitches	30
Lettering Fonts	5
LCD Screen	Yes
Built-in Memory	Yes
Maximum Embroidery Area	10" x 6"
Type	Embroidery and Sewing
