PRE-OPERATION FUNCTION TEST
GTZZ15J Operation Manual 6-7 © Nov. 2022

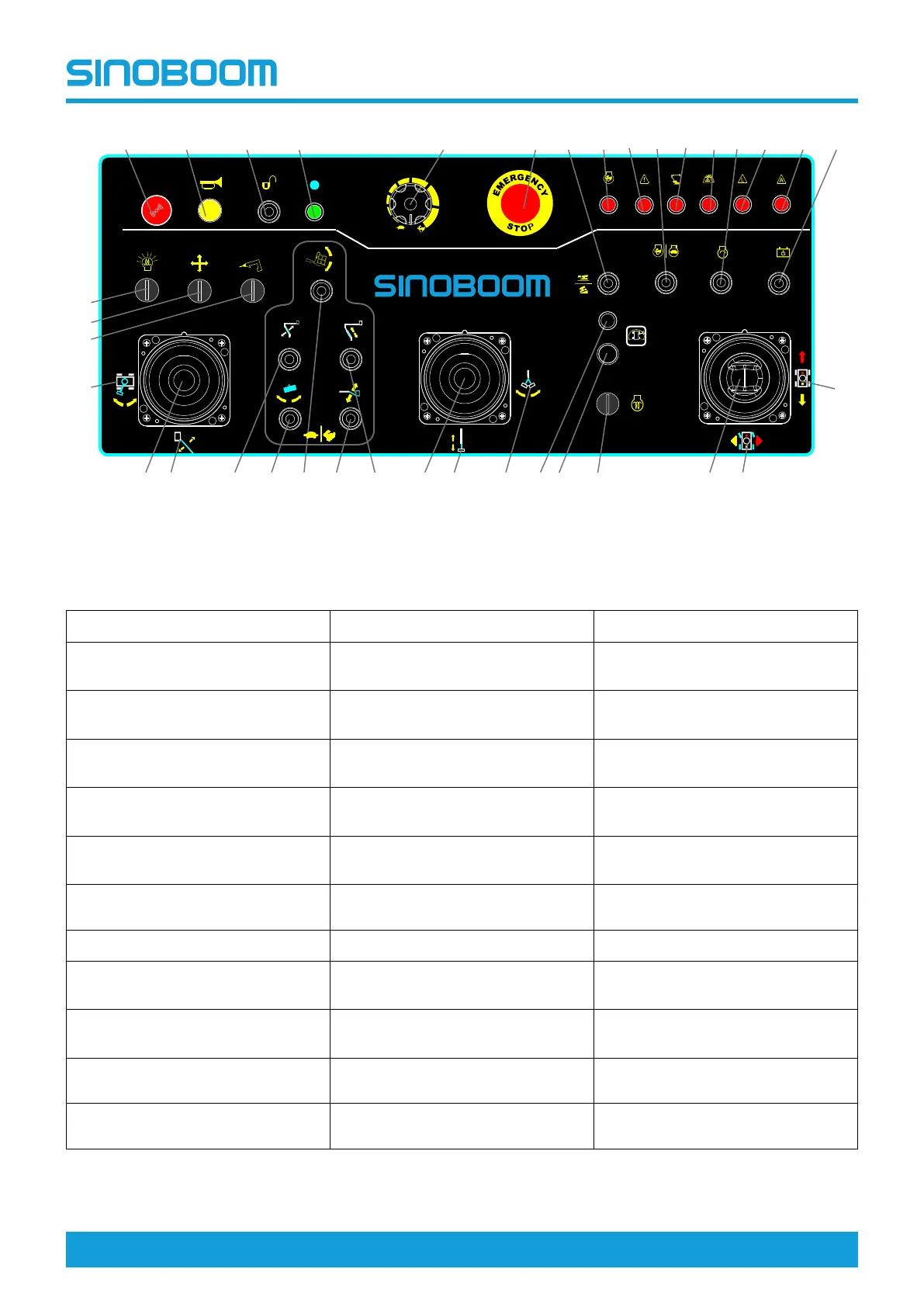

Figure 6-3 Platform Controller
Table 6-3
1. Buzzer
13. Engine start switch
25. Platform rotation switch
2. Horn
14. Length sensor malfunction
indicator light
26. Articulated boom luffing switch
3. Anti-pinch/soft contact unlock
switch (if equipped)
15. Angle sensor malfunction
indicator light
27. Main boom luffing/turntable
rotation proportional control handle
4. Power indicator light 16. Emergency power switch
28. Hydraulic generator switch
(if equipped)
5. Speed adjusting knob indicator
light
17. Drive/steer proportional control
handle
29. X/Y drive switch
(if equipped)
6. Emergency stop button 18. Glow plug switch
30. Work light switch
(if equipped)
7. Drive speed select switch 19. Rear position drive switch
31. Drive proportional control
direction
8. Engine high idle indicator light 20. Rear position indicator light
32. Steer button control direction
9. System distress indicator light
21. Main boom telescope
proportional control handle
33. Jib boom rotation proportional
control direction
10. Engine speed select switch
22. Articulated boom telescope
switch (not used)
34. Main boom telescope
proportional control direction
11. Chassis tilt indicator light 23. Jib boom up/down switch
35. Main boom luffing proportional
control direction
12. Overload indicator light 24. Platform leveling switch
36. Turntable rotation proportion
control direction
CAUTION
X
Y
1
2 3
4
5 6 7
9 10 11 12
13
14
17
181920
2122
2324
2526
27
28
29
30
31
32
333435
36
15 16
8
