Step 5: Connect the wires to one two-pole breaker (see wiring diagram).
Step 6: Verify all connections are tight and secure. Verify the correct breaker
size. Verify the ground conductor size and connection per applicable codes.
CAUTION: Ensure that you have made the correct connections. You must
follow the wire connection as shown to ensure proper operation of the unit.
If you mix up one set of wires with another, the unit will not operate
correctly even though it turns on and otherwise appears to function properly.

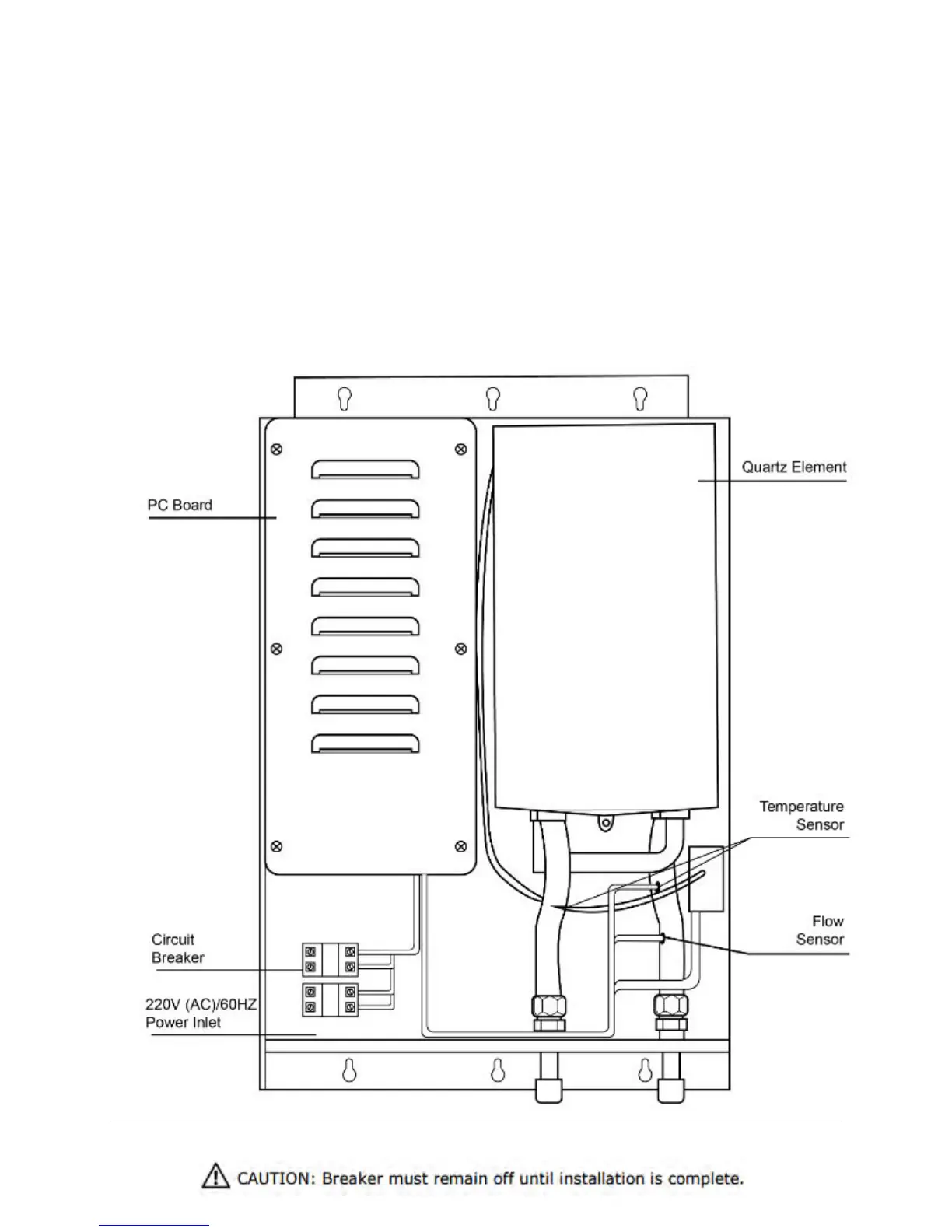

SIO 14 & SIO 18 Wiring Diagram (CANADA):
