5 | Page
MOUNTING YOUR WATER HEATER

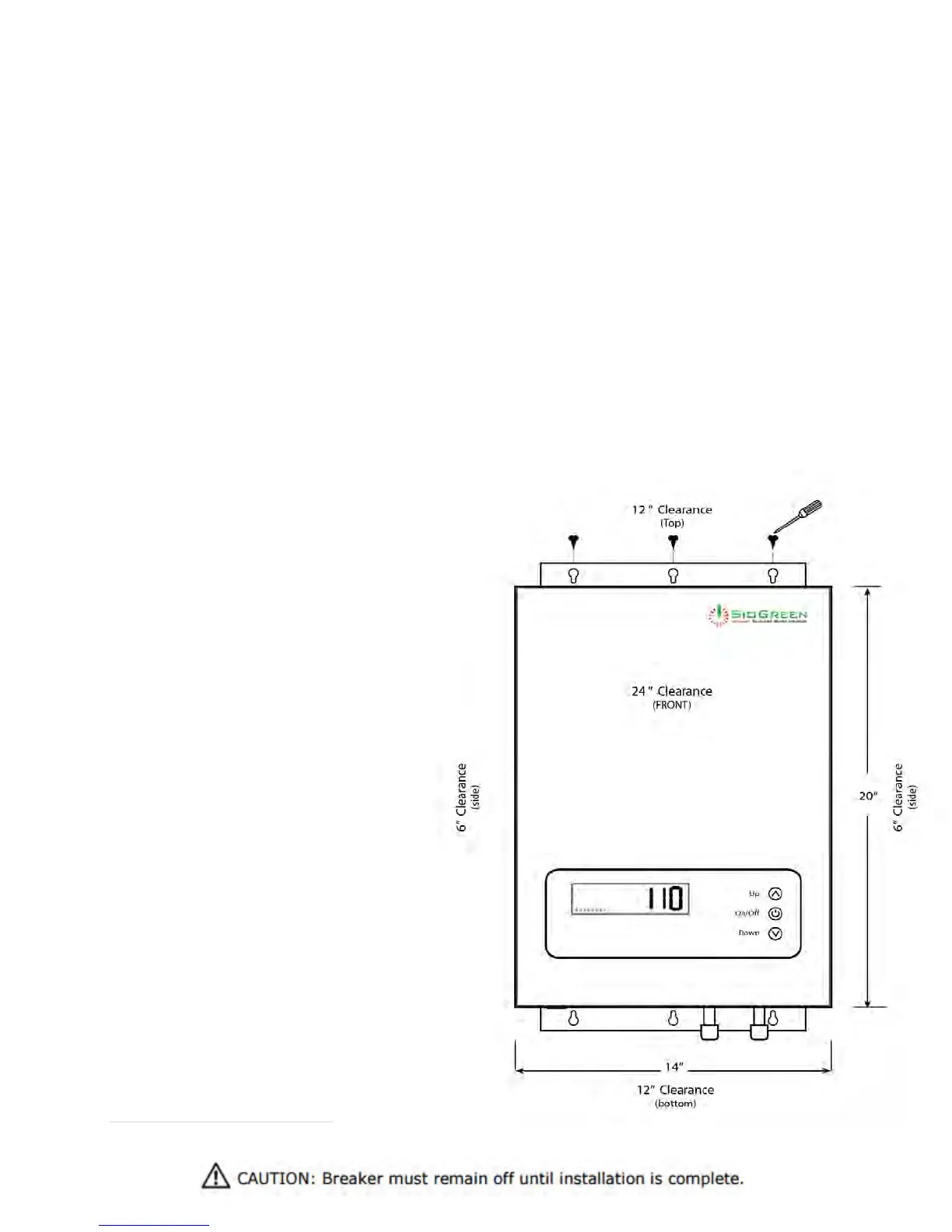

1. Leave a minimum of 6” to both sides and 12” on the top and bottom of the
unit for clearance and maintenance. A minimum clearance of 24" in front
of the unit must be provided for safe removal of the front cover, for
installation, advanced troubleshooting, and service if required.
2. Mount the electric hot water generator securely to the wall with six (6)
screws. The two (2) mounting brackets located at the top and bottom of
the unit with eyelet holes.
3. This unit must only be mounted in a vertical position with the electrical and
water fittings located at the bottom of the unit.
4. Avoid installing the hot water generator in a corrosive environment, as this
may cause damage to the electronic components.
5. Installation of the hot water
generator must be in
accordance with all National
and Local codes having
Jurisdiction and installed by
a Licensed Contractor.
