22

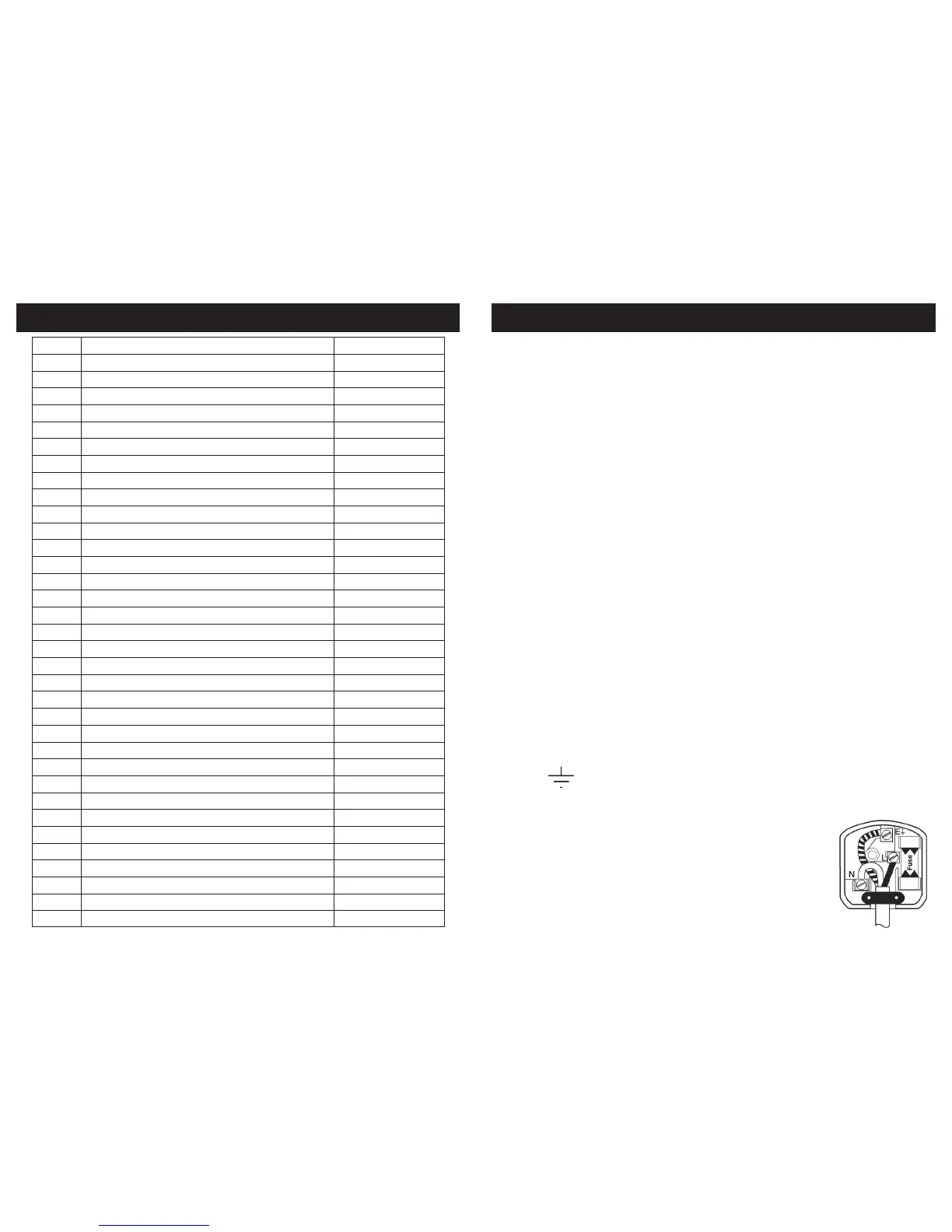

Ref No. Description SIP Part No.
1 Rubber Foot WD01-00001
2 Screw M4×10 WD01-00002
3 Bottom Plate WD01-00003
4 Screw M8×25 WD01-00004
5 Lock washer M8 WD01-00005
6 Flat washer M8 WD01-00006
7 Base WD01-00007
8 Connect tube WD01-00008
9 Big pulley WD01-00009
10 Poly-v- belt WD01-00010
11 Collector bearing 6000RZ WD01-00011
12 Spring washer D26 WD01-00012
13 Screw ST4.2×15 WD01-00013
14 Fan cover WD01-00014
15 Fan WD01-00015
16 Big washer M5 WD01-00016
17 Spring washer M5 WD01-00017
18 Screw M5×16 WD01-00018
19 Fan Housing WD01-00019
20 Screw M5×10 WD01-00020
21 Front cover WD01-00021
22 Dust storage box WD01-00022
23 Screw M5×8 WD01-00023
24 Exhaust cover WD01-00024
25 Dust exhaust WD01-00025
26 Hex nut M6 WD01-00026
27 Bag Clamp WD01-00027
28 Clamp handle WD01-00028
29 Screw M6×40 WD01-00029
30 Tooth lock washer M5 WD01-00030
31 Tension level WD01-00031
32 Sleeve WD01-00032
33 Tension handle WD01-00033
34 Pin 5×8 WD01-00034
7
WARNING! It is the responsibility of the owner and the operator to read, understand
and comply with the following:
You must check all electrical products, before use, to ensure that they are safe.
You must inspect power cables, plugs, sockets and any other connectors for wear or
damage.
You must ensure that the risk of electric shock is minimised by the installation of appro-
priate safety devices; A residual current circuit Breaker (RCCB) should be incorporated
in the main distribution board. We also recommend that a residual current Device
(RCD) is used. It is particularly important to use an RCD with portable products that are
plugged into a supply which is not protected by an RCCB. If in any doubt consult a
qualified electrician.
Connecting to the power supply:
This SIP sander is fitted with a standard 230v ~ 13 amp type plug. Before using the
machine, inspect the mains lead and plug to ensure that neither are damaged. If
any damage is visible have the machine inspected / repaired by a suitably qualified
person. If it is necessary to replace the plug a heavy duty impact resistant plug would
be preferable.
The wires for the plug are coloured in the following way:
Yellow / green Earth
Blue Neutral
Brown Live
As the colours of the wires may not correspond with the markings in your plug, pro-
ceed as follows: The wire which is coloured blue, must be connected to the terminal
marked with N or coloured black. The wire which is coloured brown, must be connect-
ed to the terminal, which is marked L or coloured red. The wire which is coloured yel-
low / green should be connected to the terminal which is coloured the same or
marked
Always secure the wires in the plug terminal carefully and tightly. Secure the cable in
the cord grip carefully.
ELECTRICAL CONNECTION
