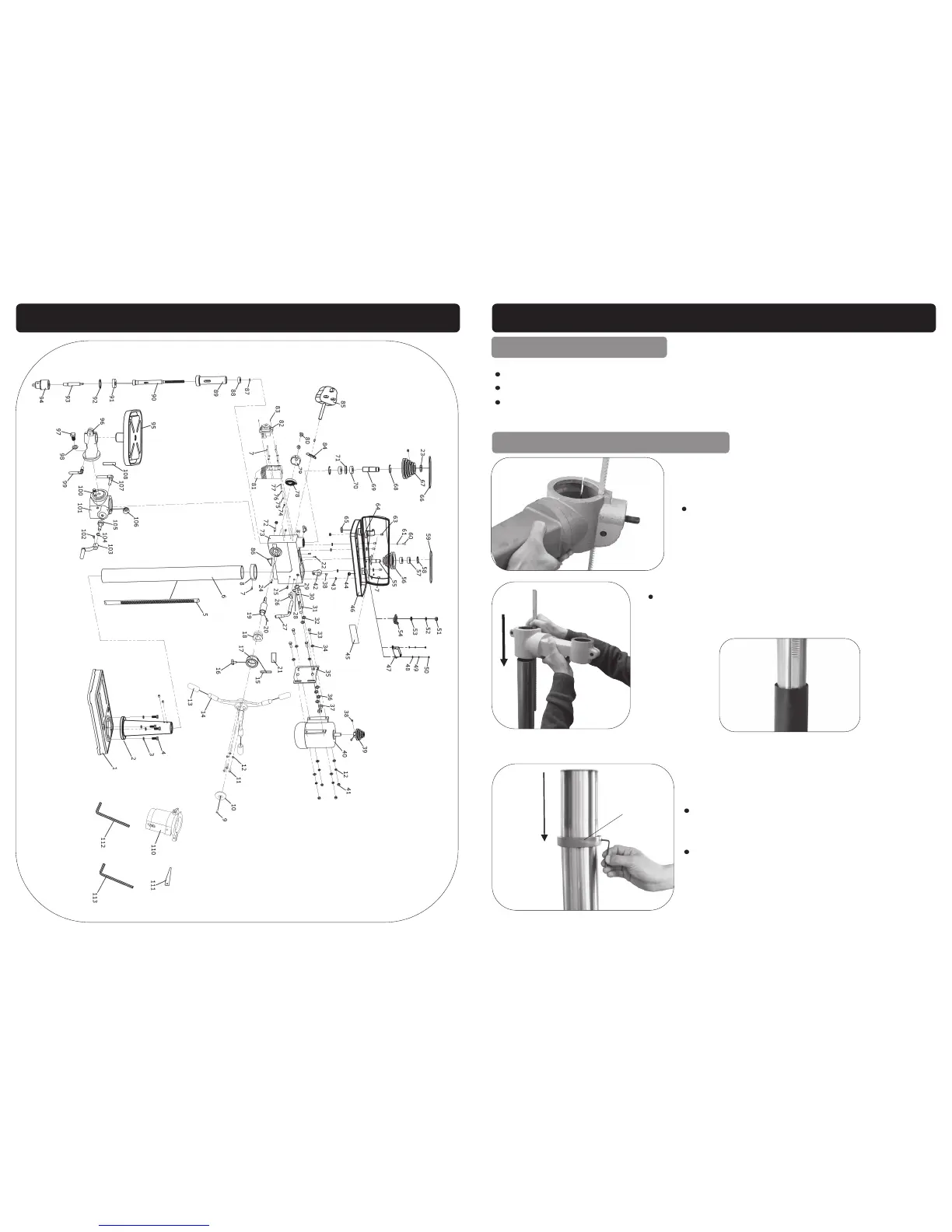

EXPLODED DRAWING - 01705

FIT THE RACK & TABLE - ALL OTHER MODELS

ASSEMBLY INSTRUCTIONS….cont

FIT THE TABLE - 01700

Ensure that the table support lock is loose.

Slide the table support over the column until it is in position.

Secure in place by tightening the table lock towards the rear of the table support.

Fit the rack inside the table support as shown

(005).

Fit the table support / rack assembly over the col-

umn (006) and slide down until the rack fits inside the

column support (007).

Slide the rack collar, tapered side facing

down, over the column until it locates over

the rack.

Tighten the grub screw to hold in position

(008).

005

006

007

Rack

Collar

008
