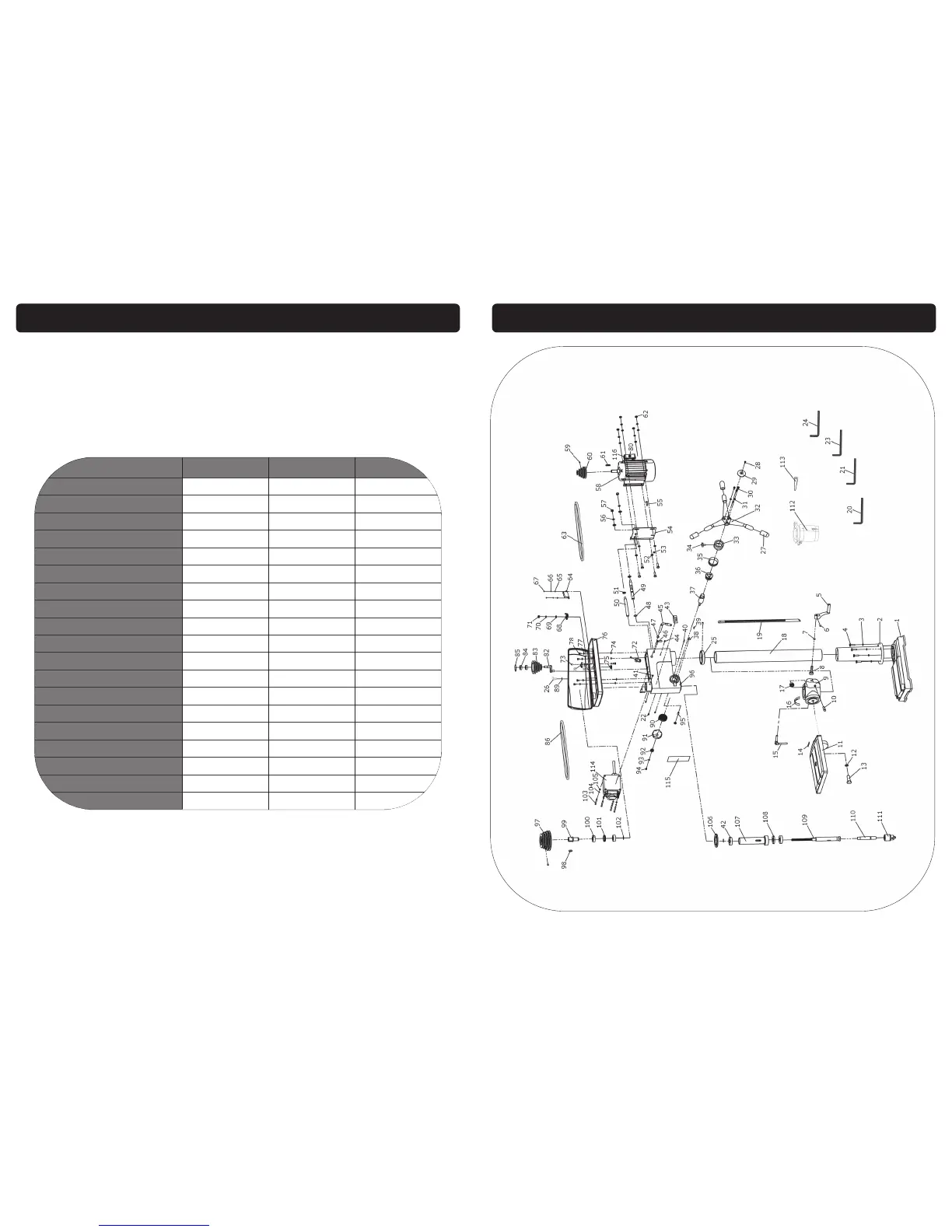

Installation
If the belt tension is not correct it is adjusted by loosening the belt tension locking screw and pushing the end of the
slide bar until the tension is correct, then re-tighten the locking screw.
8
1/2" (13mm)
1. Table Support
2. Support Lock Handle
3. Column
4. Base
5. Base Flange
6. Screw Hex Hd M8X20
7. Table Bevel Lock Screw
8. Table
9. Head Asm
10. Rack
11. Crown Wheel
12. Allen Bolt
13. Retaining Collar
14. Worm Elevation Assy
1
1
13
9
9
2
2
8
8
7
7
6
5
5
4
4
3
3
12
14
11
10
MODELS WITHOUT RACK MODELS WITH RACK
