SPIDER
23
– Repair works, maintenance, periodical
overhauls, cleaning and elimination of
functional disturbances must be
performed with the switched off drive
and stand still engine! Remove the
ignition key!
– Set the support wheel position out of
the rotors area – check it in lifted
position!
– For transport the purpose chain must
be replaced with upper lever!
– Depose the rotary tedder with support
wheel on support leg (7).
Mounting the support wheel
–
Set the support wheel (1) with the bracket (2) on
the right side of the hitch frame in driving direction.
–
Adjust the selected height and fix the support
wheel (1) with pin (4).
–
Fix the purpose chain (6) on the upper connection
(5).
–
Mount the other end of the purpose chain (6) on
the tractor.
– The purpose chain must be set loose to
enable adaption of the rotary tedder
with the support wheel and the lifting of
the rotary tedder.

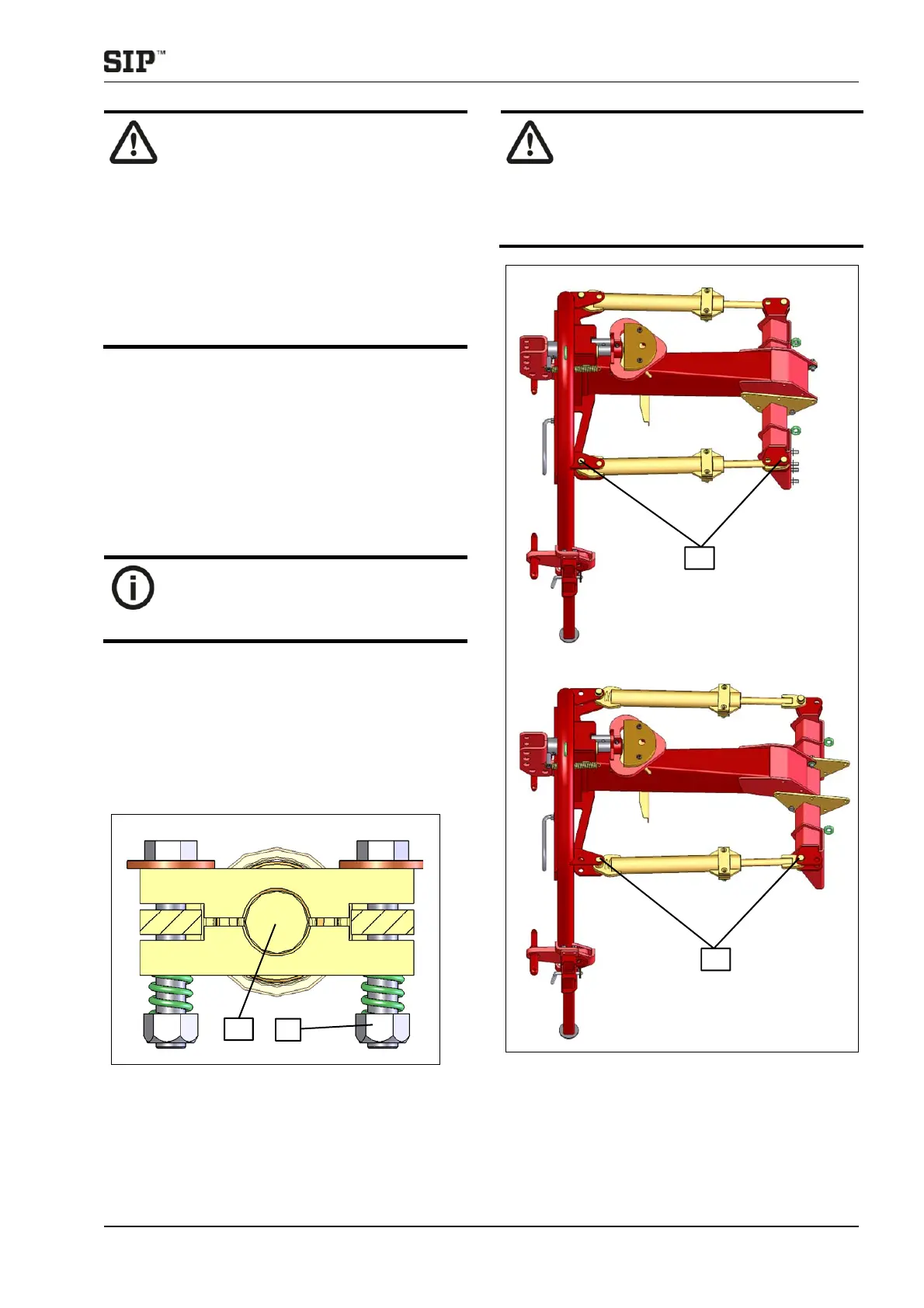

8.2 Stabilizers – especially advised for working on
steep inclines (AUXILLIARY EQUIPMENT)
–
Ensures that the tedder follows uniformly and
smoothly on uneven and inclined surfaces, and
when turning.
–
If the tedder starts swinging, tighten the nuts (1).
This way you increase the traction on the pole (2).
– ENSURE that the stabilizer is installed
in the correct position, so it does not
cause damage “see image below”.
– The tedder closer to the tractor
position “A” (factory preset).
– The tedder moved away from the
tractor position “B”.
21
2
1
22
A
B
