14
CONTENTS AND ACCESSORIES
Note: If any of the above are missing or damaged, contact your distributor
immediately.
HG2500P Tig/Arc Welder Tig torch accessory kit
5m WP-26 Tig Torch
Earth cable with earth clamp
4m x 8mm Ø gas hose and hose clamp
Instruction Manual
19
OPERATING INSTRUCTIONS
Screw the gas pipe on to the gas fitting on the rear of the machine, tighten the nut
using a spanner (not supplied).
Note: In order to use gas you will need to purchase gas and a gas regula-
tor suitable for the type of welding required.

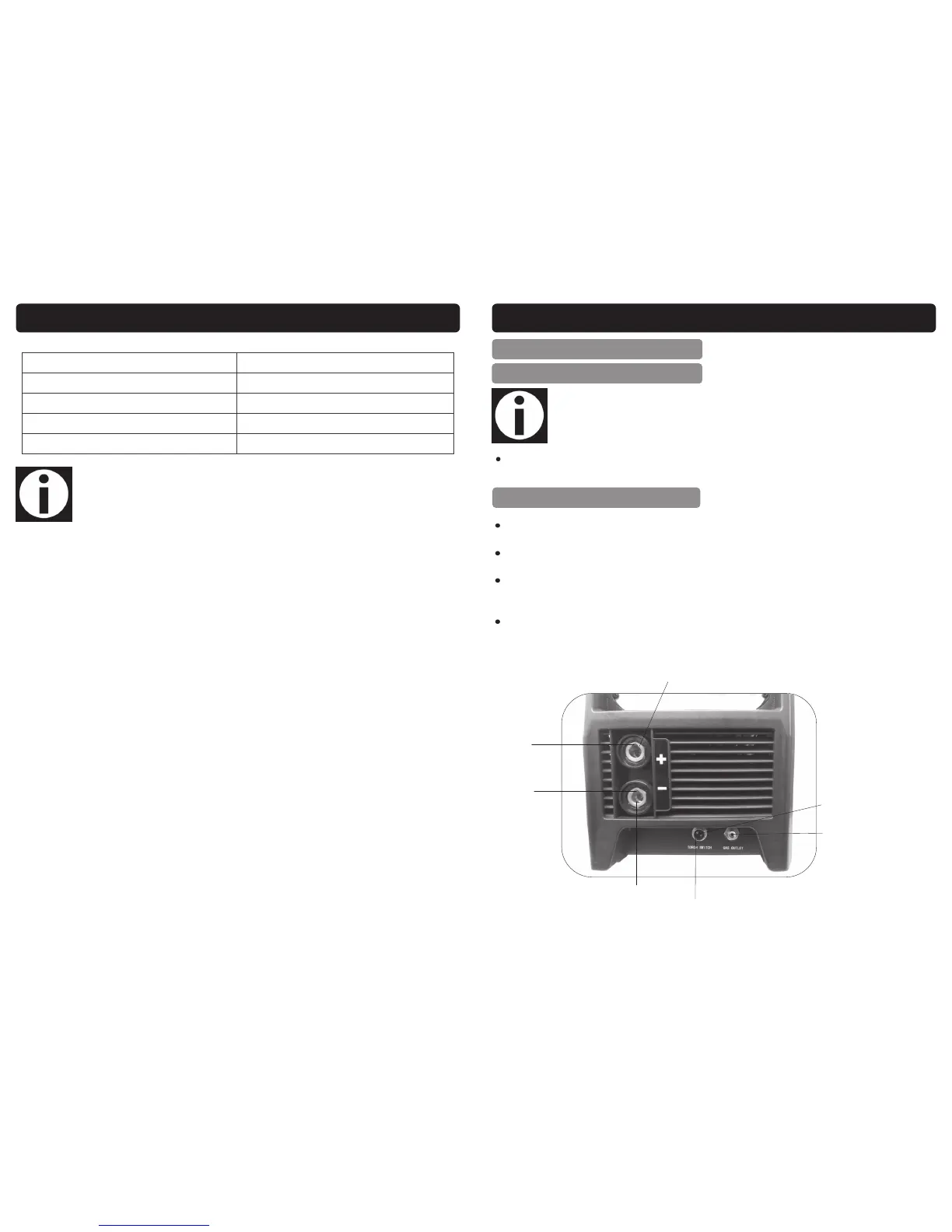

FITTING THE TORCH & EARTH LEAD
To connect the earth lead simply line up the tab on the dinse connector with the
cut out on the positive dinse socket and turn clockwise to secure.
Connect the torch power lead in the same way, but connect to the negative sock-
et.
The torch trigger lead is fitted to the torch trigger connection; Line up the cut-out on
the lead with the tab on the socket. Push the plug in and secure in place by tight-
ening the fitting on the plug.
Fit the gas pipe on the torch to the gas fitting; Secure by tightening the nut with a
spanner (not supplied).
Positive Socket
Negative Socket
Tab
Cut-Out
Cut-Out
Gas Fitting
Torch Trigger Connection
TIG WELDING
FITTING THE GAS PIPE
