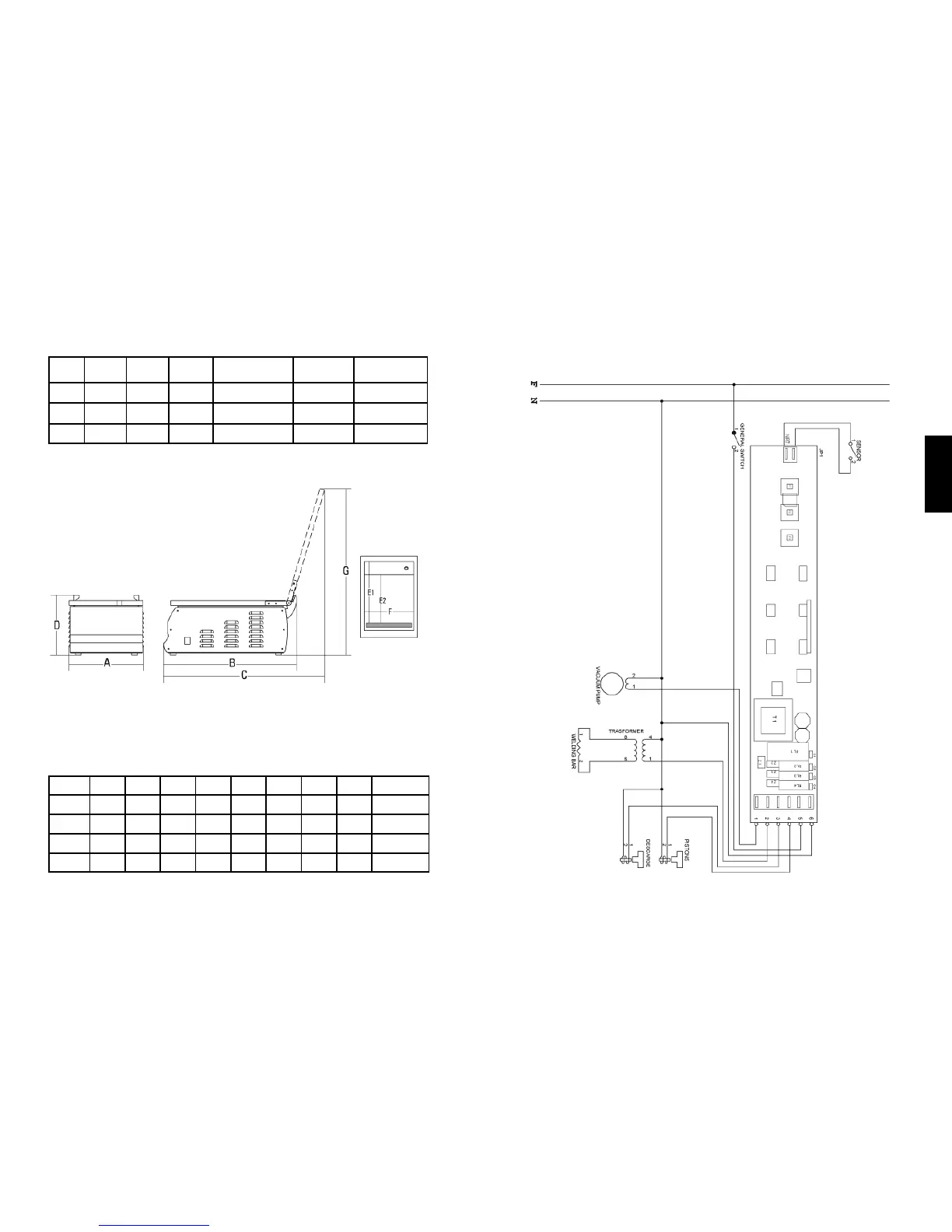

Sirman Easyvac 25 - Technical Specifications; Wiring Diagram

10
2.2 - Technical features
2.3 - Dimensions and weight of the machine
Power
Kw
Vacuum
pump
Sealing
bar
Cavity
dimensions
Power supply Oil tank capacity
0,1 Kw 4 mc/h 260 mm 270x350 h75 mm 230V/50Hz ml 60
25
30
0,1 Kw 4 mc/h 310 mm 336x378 h75 mm 230V/50Hz ml 60
40
0,35 Kw 8 mc/h 410 mm 426x438 h75 mm 230V/50Hz ml 250
A B C D E1 E2 F G Net weight
mm mm mm mm mm mm mm mm Kg
25 320 560 685 257 340 263 264 708 30
30 406 565 685 315 335 246 336 731 37
40
494 637 755 315 395 308 426 810 42,5
Fig. 2.3.1
11
English
Wire map legend
1 = Black
2 = Red
3 = White
4 = Orange
5 = Gray
6 = Blue
Fig. 2.4.1
2.4 - Wiring diagram
