3 Inspection, transport, delivery and installation
3.1 - Inspection
The machine you own has been inspected at our establishment in order to certify
correct operation and adjustment.
3.2 - Delivery and handling the machine
All material delivered has been accurately controlled before consignment to the
carrier.
Unless agreed differently with the Customer or for particularly onerous transport,
the machine is wrapped in nylon and cardboard.
The packaging dimensions are given in fig. 3.2.1
On receipt of the machine, check the integrity of the packaging.
If the packaging is damaged, sign the documents for receipt with the following
note:
"Accepted subject to checking..." and the reason.
Open the packaging, and in the presence of machine components that are really
damaged, make a claim to the carrier within three days from the date indicated on
the documents.
3.3 - Installation
After having removed the packaging, check the integrity of the machine.
In particular, check that the machine is integral and without visible damage, which
could have been caused during transport.
If in doubt, do not use the machine and contact the Manufacturer.
Place
Position the packaging machine place with a low percentage of humidity and away
from heat sources.
A B C
Gross
weight
mm mm mm Kg
25 420 660 310 32
30 600 740 610 46
40
600 740 610 51,5
Fig. 3.2.1
9
English
1.8.1 - Warning and danger plates (Fig. 1.8.2)
2 Technical features
2.1 - Main parts

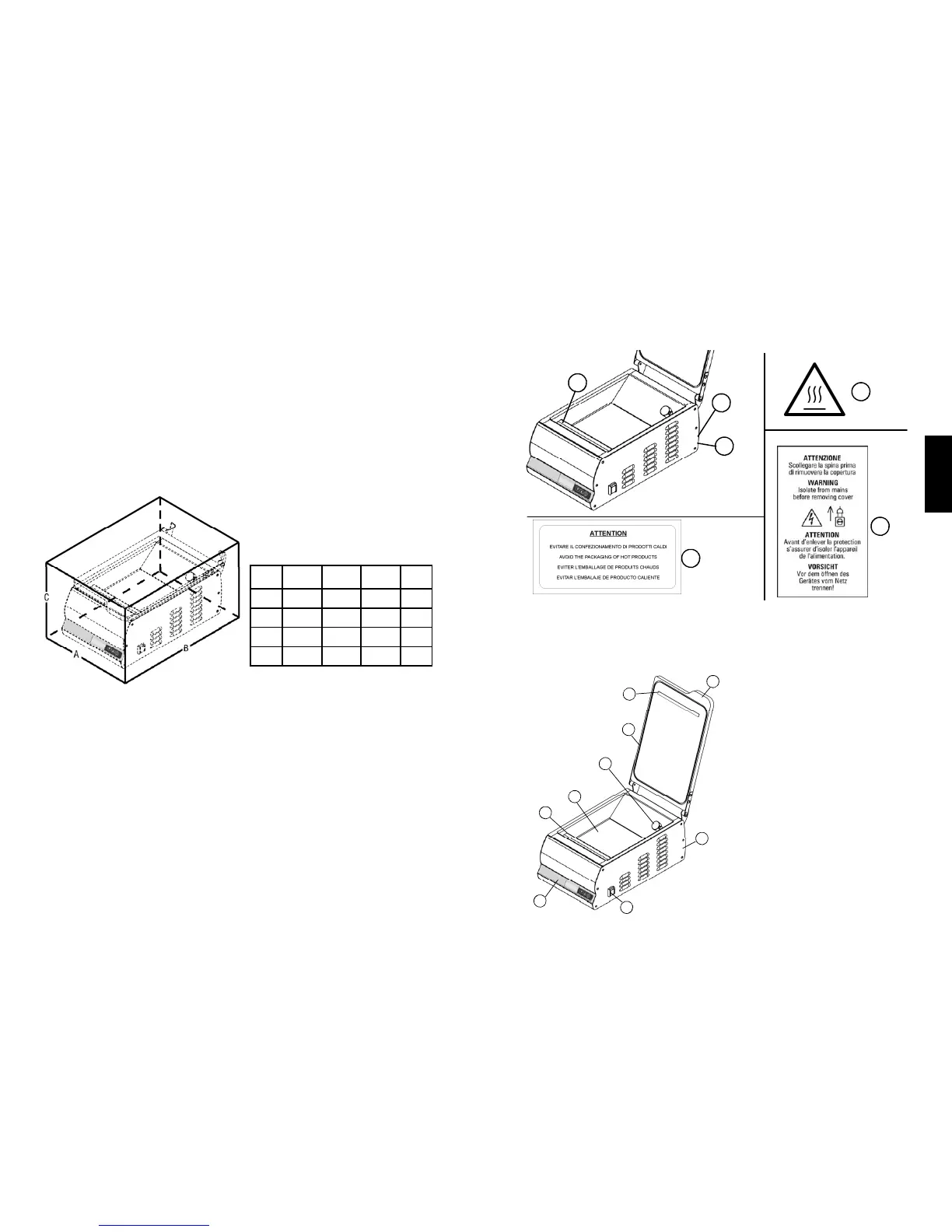

To facilitate comprehension of the manual, the main machine components are
listed below and represented in fig.
2.1.1.
A
B
C
Fig. 1.8.2
Fig. 2.1.1
1. Control panel
2. Cavity
3. Power supply cable
4. Master switch
5. Transparent Plexiglas cover
6. Silicon counter-bar
7. Sealing gasket
8. Suction pipe for vacuum
9. Sealing bar
A
B
C
1
2
3
4
5
6
7
8
9
