Sirona Sprayvit E - Operation; Connecting Syringe and Attaching Components

65 45 490 D3286
10 D3286.201.03.15.23 04.2015
5Operation Sirona Dental Systems GmbH
5.1Connect the multifunctional syringe to the supply hose Operating Instructions SPRAYVIT / C8 / E / L / M
5
Operation
Risk of scalding _ Sprayvit
CAUTION! Too little media supply leads to overheating the water. Risk of
scalding! Set the required media flow rate [ → 7].
Protruding metal tube _ SPRAYVIT
WARNING! A small metal tube protrudes at the tip of the nozzle. Risk of
injury and contamination! Avoid contact with the tip of the nozzle. Do not
attempt to handle with the nozzle attached. Remove the nozzle after
every patient and sterilize.
Unimpeded flow of water/air
IMPORTANT: Air and water flow from the nozzle must be unimpeded. Do
not place the nozzle against a tooth or other object. Do not press the
nozzle into the impression material.
Exposed voltage
CAUTION! There may be exposed voltage! Do not operate the media
lever when the handle is detached! Risk of burns and electric shock!
5.1

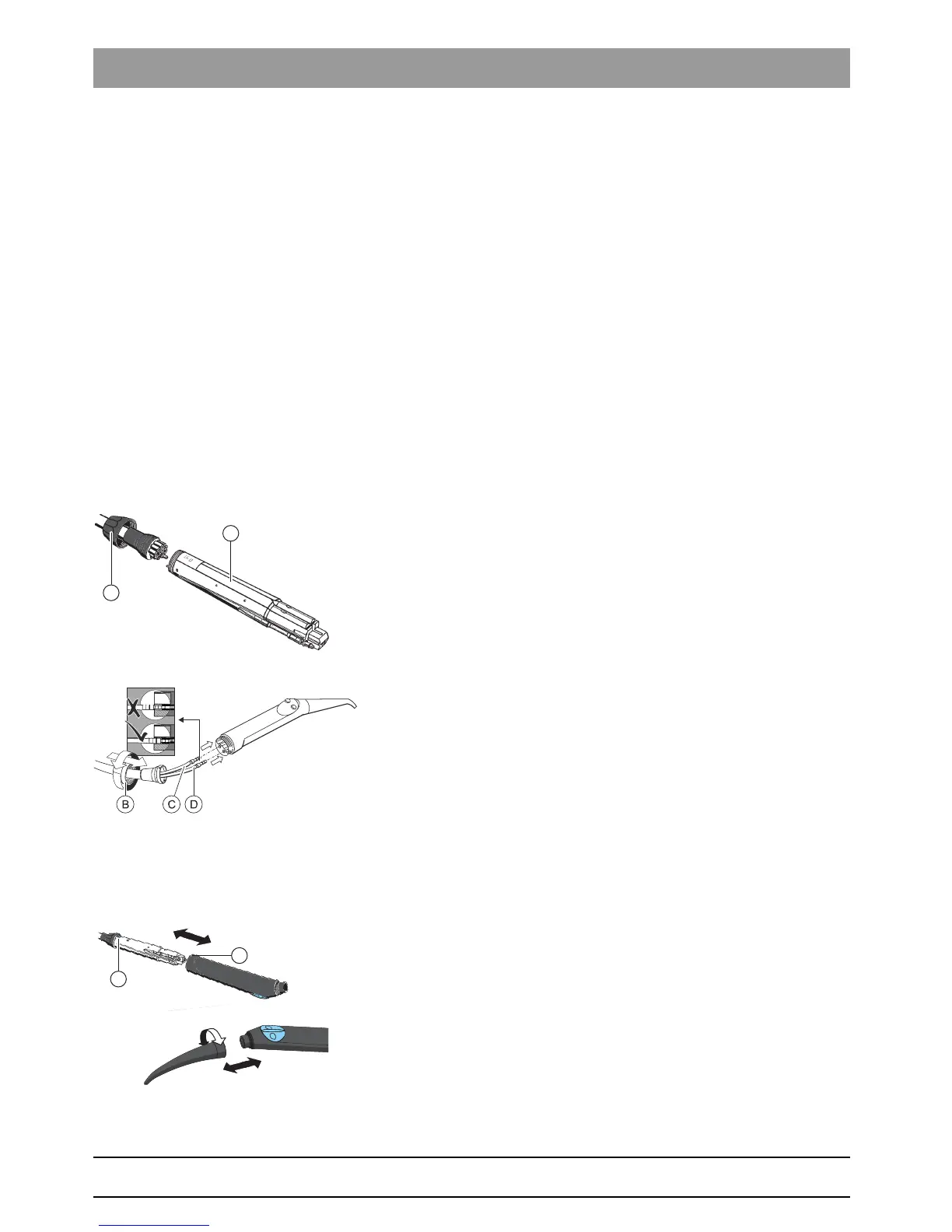

Connect the multifunctional syringe to the supply
hose
SPRAYVIT L
Connect SPRAYVIT / E / L / M to the supply hose
Exposed voltage
CAUTION! There may be exposed voltage! Do not operate the media
lever when the handle is detached! Risk of burns and electric shock!
1. Attach the valve body (A) to the supply hose, observing the various
tube diameters. The valve body may also remain in the handle
sleeve.
2. Screw the cap nut (B) onto the valve body and tighten it.
Attach SPRAYVIT L hose
Connect SPRAYVIT C8 to the supply hose
1. Attach the water hose and air hose to the SPRAYVIT C8, ensuring
the correct position of the hoses (C: blue, D: green).
2. Screw the cap nut (B) onto the valve body and tighten it.
5.2
Attach/remove the handle sleeve and nozzle
Attachment
1. Align knob (A) and recess (B) so they face each other.
2. Insert the handle sleeve until it snaps into place.
3. Twist the nozzle onto the handle sleeve.
4. Check to make sure the nozzle is firmly attached.
CAUTION! If the nozzle is not locked in place, it can come loose
when the multifunctional syringe is operated and fall into the patient's
throat.
20xx
REF
xx
xx xxx
SN
xxxxx
A
B
A
B
