Replacing the heating cartridges
IMPORTANT: Only SPRAYVIT / L / M has heating cartridges. SPRAYVIT
M has only a water heater.
If heated media no longer heat up, the heating cartridges in the valve
body may be burned out. Replace the defective heating cartridge. The
procedure is identical for both heating cartridges depending on the side.
1. Switch the treatment center off at the main switch.
2. Detach the handle sleeve from the valve body [ → 10].

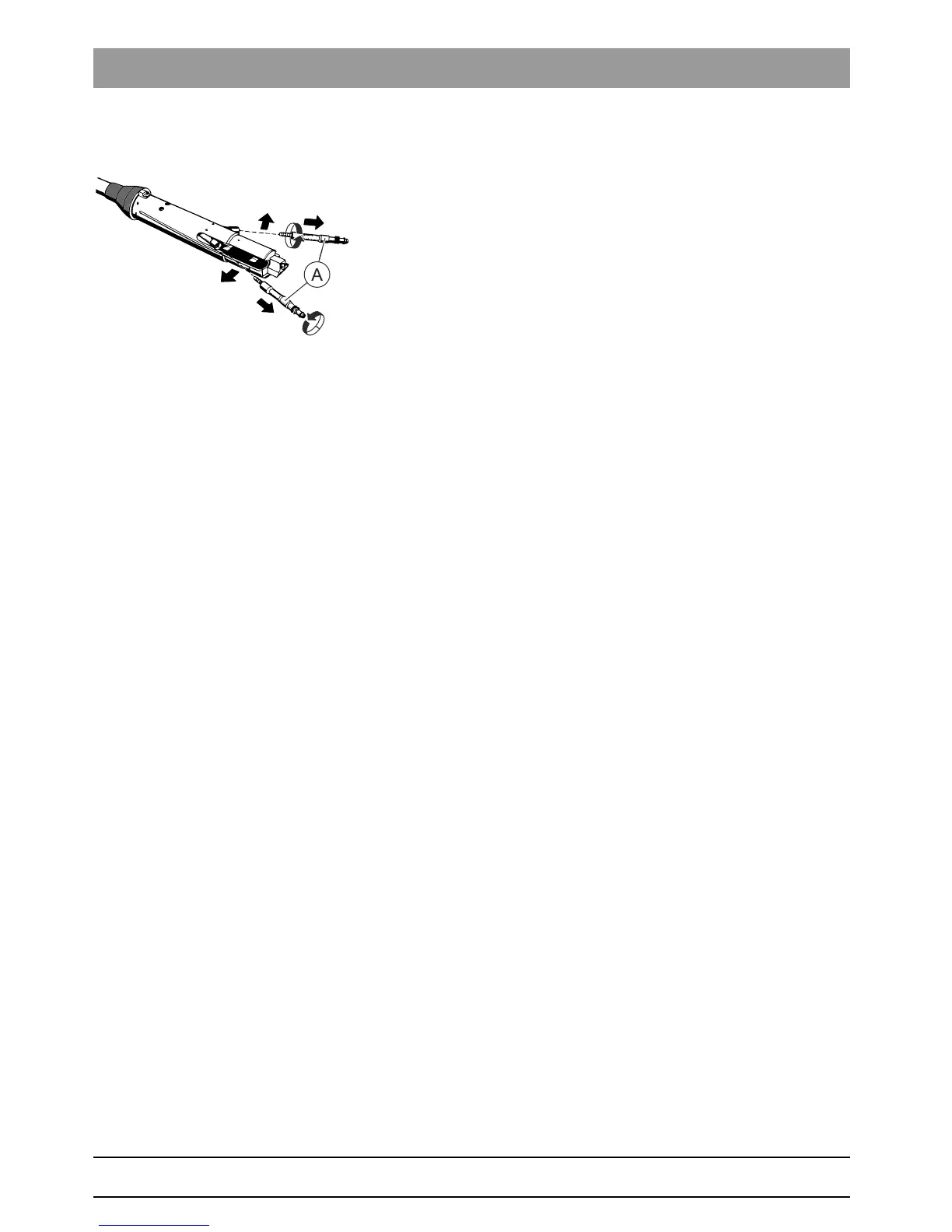

3. Swing the heating cartridge (A) to the side away from the valve body.
4. Hold the cartridge hose firmly and twist the cartridge to remove it.
5. Insert the new cartridge in reverse order.
