8

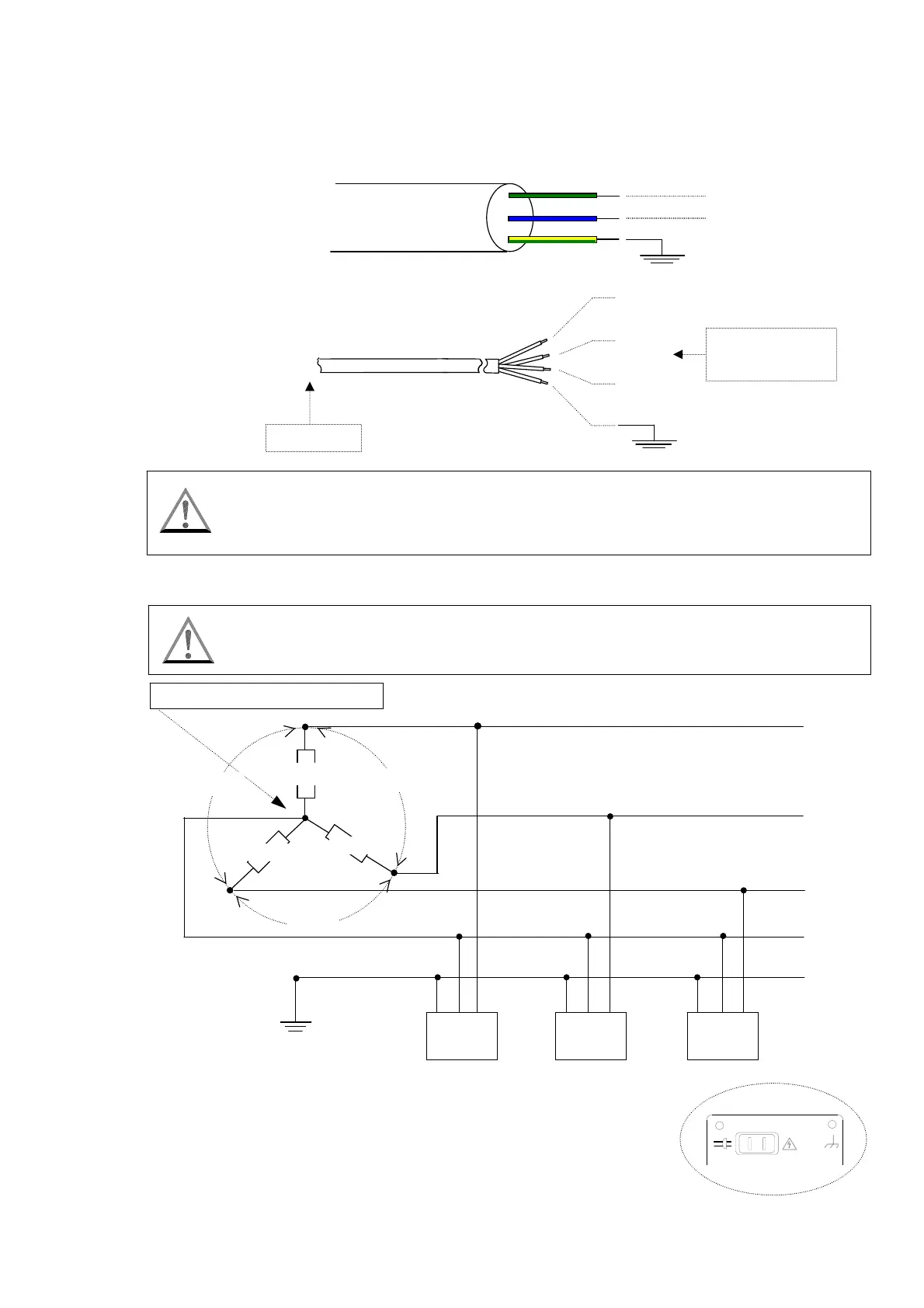

3. Power Connection and Grounding:
(1). Single phase and three phase connection:
Green/yellow wire is the ground wire.
(2). How to connect a 1Φ / 220 V power from a 3 Φ / 380 V power source
(3). The usage of AC 220V Lamp Connector
Industrial sewing machine use only, must not be used for any other purpose.
1. When a three phase 220 V servo motor used on single phase 200 ~ 240 V power, only connect brown
and blue wires. Use insulating tape to wrap up the black wire, in order to prevent the current leakage.
2. Green / Yellow wire must do the grounding.
CautionIf the power source does not have the neutral point, then this 1Φ / 220 V servo motor is
not suitable for this connection. Please ask supplier to offer our 3Φ / 380 V servo motor.
R
S
T
N
PE
Grounding system G G G
1ψ220V
Motor
1ψ220V
Motor
1ψ220V
Motor
L1 L1 L1
L2
L2
L2
Neutral
Caution: Must have a Neutral point
380 V
380 V
220 V
220 V
220 V
380 V
Single Phase
PVC Cable
Brown wire
Blue wire
Green/Yellow wire
Three Phase
Brown
Black
Blue
Green
/ Yellow
To control box
If use on single phase
(220 V), don’t connect
the black wire.
AC 220V
