TS-One Manual for use and maintenance
49
01
10
09
11
12
13
14
19
20
18
15
17
16
02
03
04
05
06
07
08

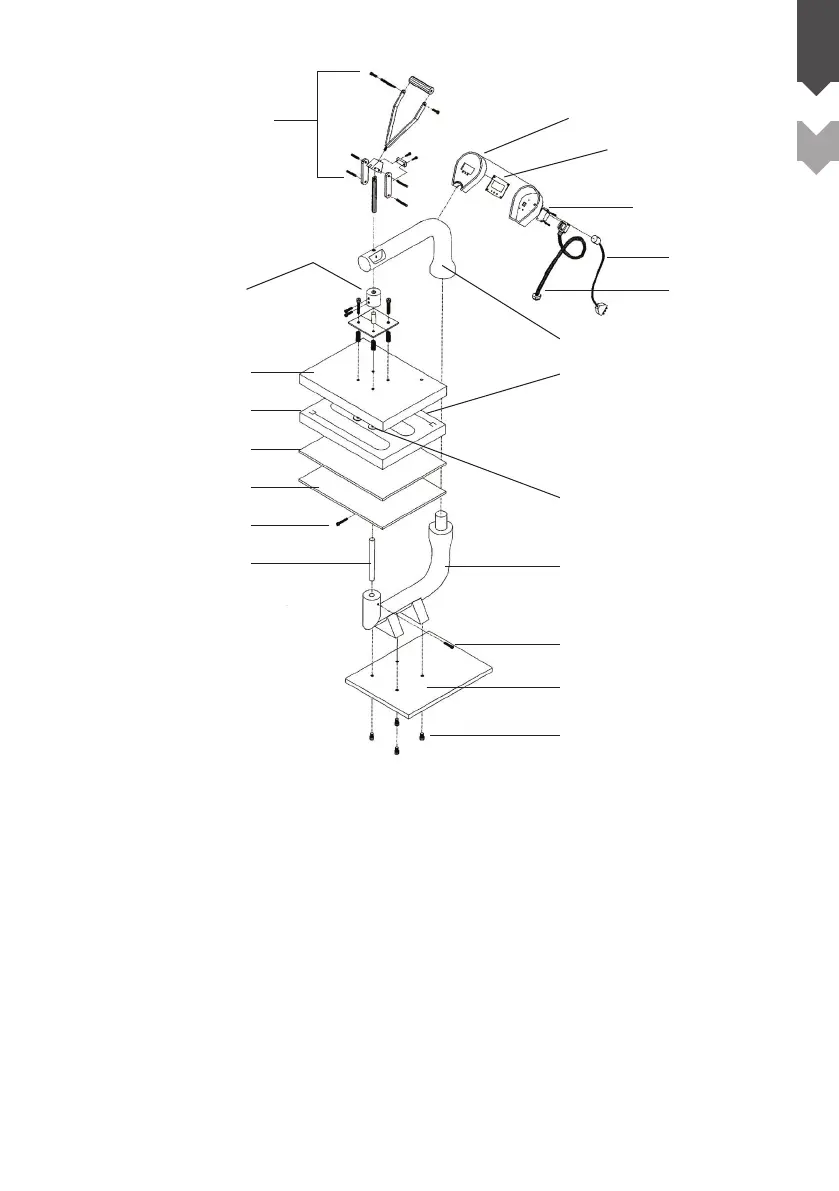

9 PARTS
01 Handle /grip unit
02 Connection of heat platen to handle / grip unit
03 Metal cover
04 Hot plate with heating element
05 Silicon rubber for high temperature
06 Aluminum base
07 Aluminum base fastening screw
08 Pressure adjustment screw
09 Electronic circuit board
10 Instrument Box
11 7-pole connector
12 Power cord
13 Hot plate tool connector cord
14 Mobile arm with swivel
15 Fixed arm with swivel
17 Base
18 Screw for fastening press to base
19 Heating element
20 Thermocouple
PARTS OF TS-ONE PRESS
TS
ONE
9
EN
