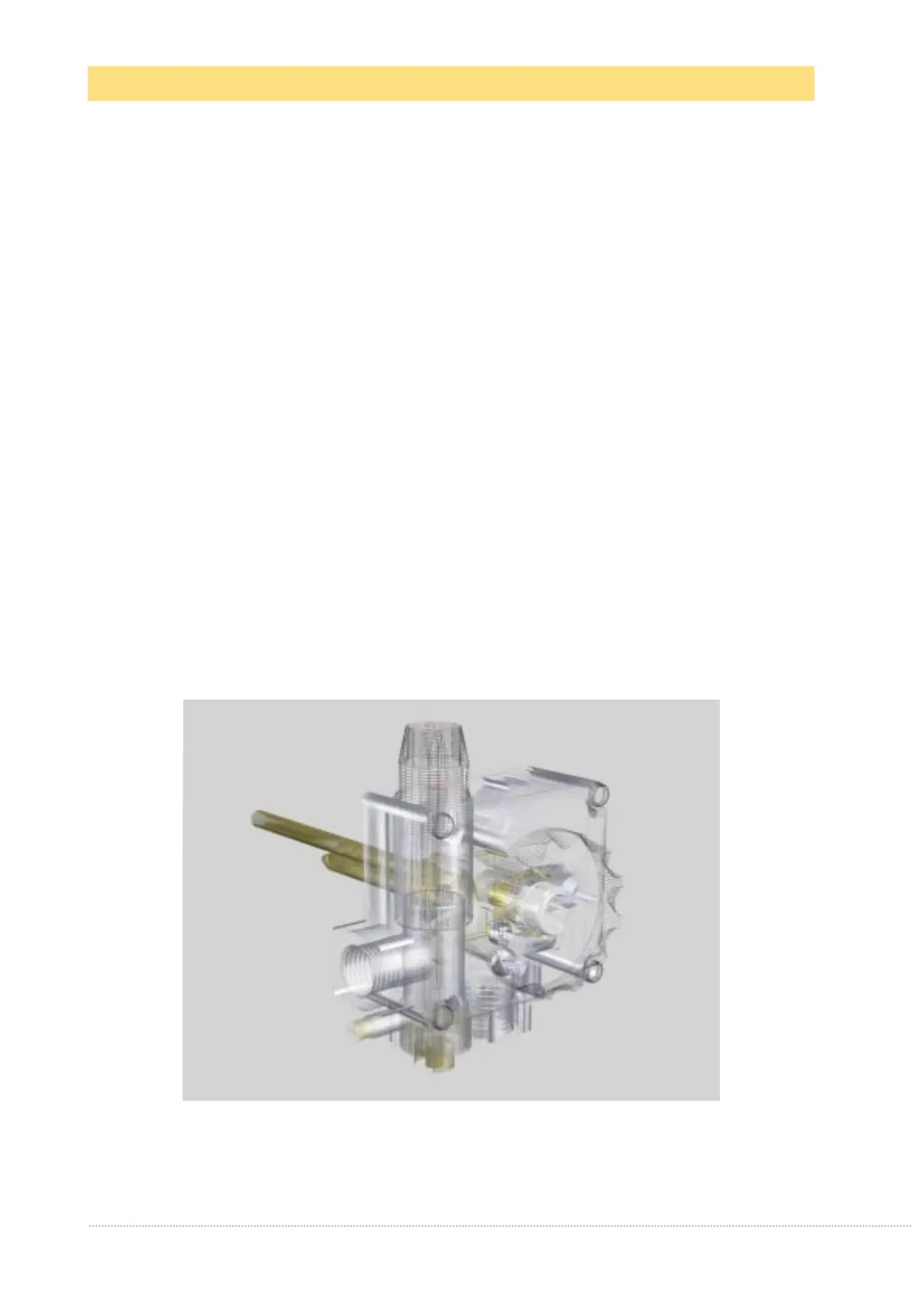

INSTALLATION
Main gas connection
The connection is made using gas pipes with Rp 1/2 ISO 7 threading (the valve is available
with 0.75-18 UNS 2B outlet on request). Torque: 25 Nm.
Water connection
The connection flange threading is Rc 3/4 ISO 7 (3/4 NPT on request).
Connection to the pilot burner
Pipes with a 4 mm, 6 mm or 1/4 diameter can be used. Use a nut and olive of appropriate
dimensions. Tighten to 7 Nm torque.
Thermocouple connection
Connect the thermocouple to the magnet unit, checking that the fixing connection is
properly dimensioned. Torque: 3 Nm.
After making the gas connections, check tightness and that the appliance is operating
properly.
