SIYI FTM30 - 2.2.3 FR Mini Receiver

FM30 User Manual V1.1
9
2020 SIYI Tech All Rights Reserved
Pin Out
⚫ UART Port
Red: +
Black: -
Yellow: TX
Blue: RX
⚫ PWM Ports
3 set of pins 1-8 CH out, from bottom GND, VDD, and Signal
9
th
set of 3 pins are reserved.
10
th
set of 3 pins outputs PWM CH9, PPM, and S.Bus

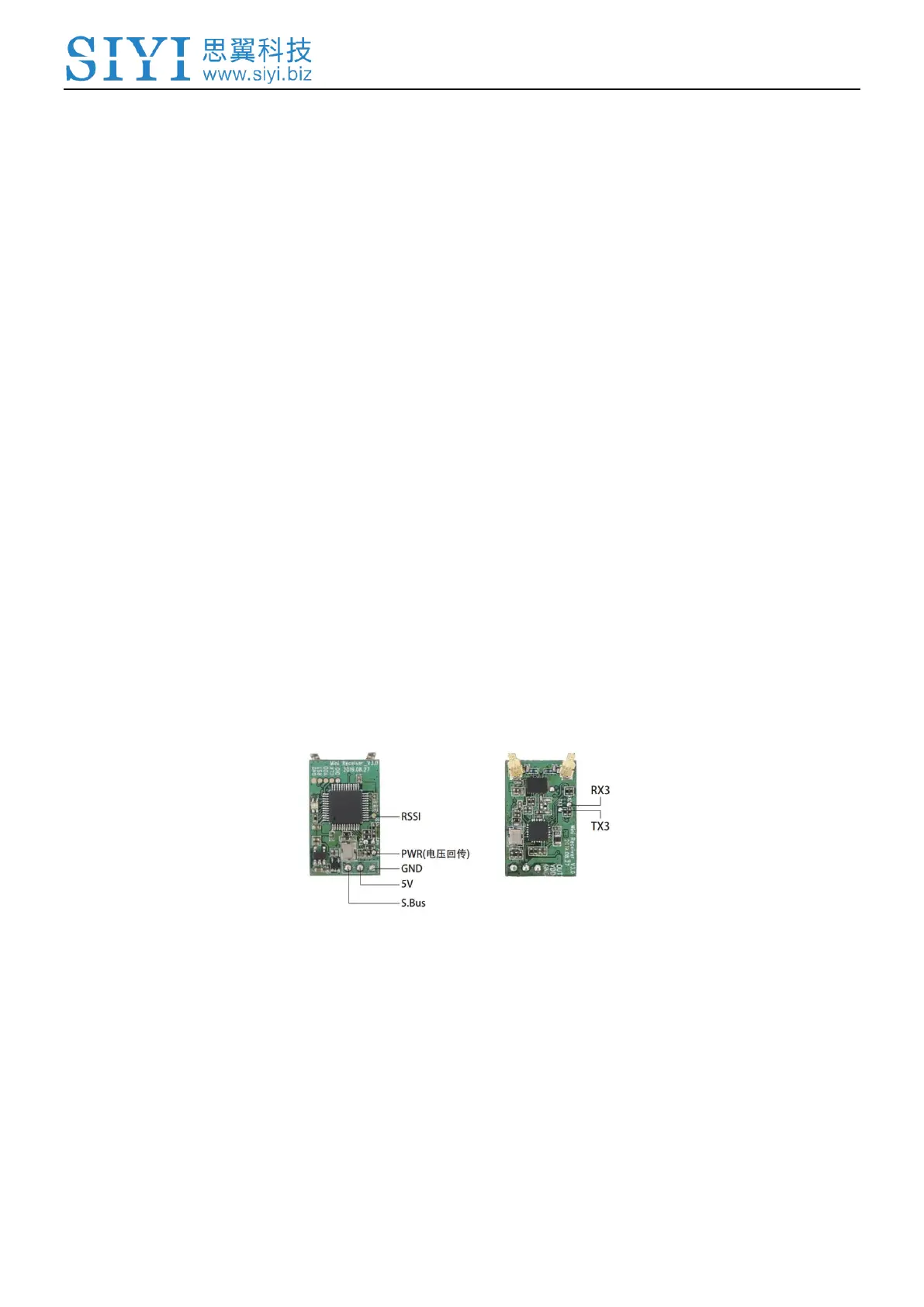

2.2.3 FR Mini Receiver
Port Function
⚫ S.Bus: 16 channels of S.Bus signal output.
⚫ RX3/TX3: Data port.
⚫ RSSI: RSSI signal output
⚫ PWR: Voltage telemetry (compatible with FT24 transmitter, not compatible with FM30
