Skandika Morpheus - Page 34

34

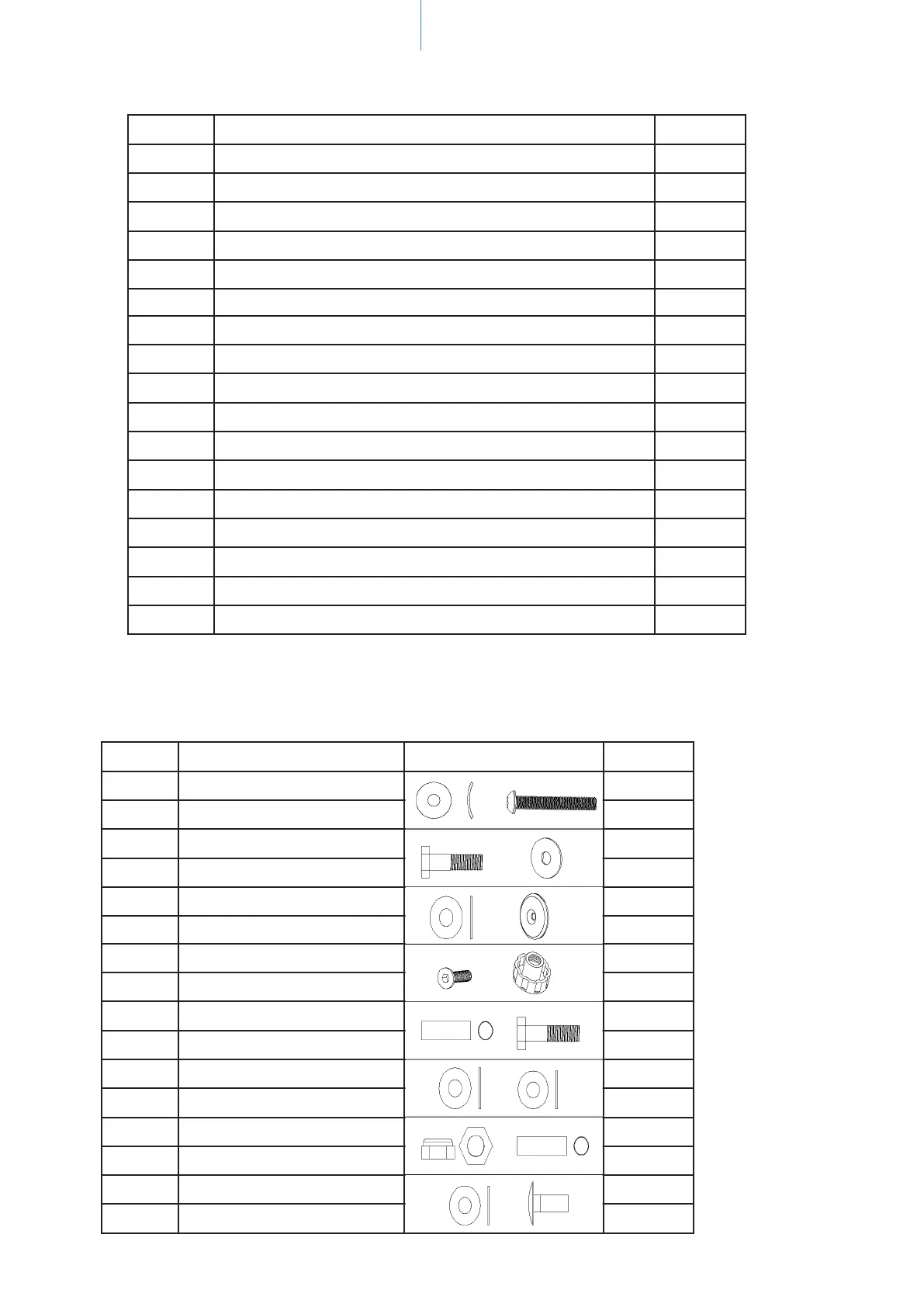

PARTS LIST
Part no. Description Q´ty
74 C-clip Ø17 2
75 Bearing 6203 2
76 Sensor bracket 1
77 Spring 1
78 Hex head nut M6 2
79 Hex head bolt M6*25 1
80 Axle for ywheel 1
81 C-clip Ø12 2
82 Bearing 6001 2
83 Flywheel 1
84 Allen bolt M6*15 4
85 Magnet assembly 1
86 Sensor magnet 1
87 Belt 1
88 Nylon nut M8 2
89 Allen bolt M8*55 1
90 Flat washer Ø8*Ø17 1
Small parts required
You will need the following small parts to assemble the unit. Use the list to check whether all parts
are available.
Part no. Description Drawing Q´ty
3 Curved washer Ø8*Ø20*1.5 10
4 Allen screw M8*16 14
6 Hex head bolt M8*45
4
9 D type washer Ø50
2
10 Flat washer Ø8*Ø20
2
11 Decorative cover Ø50
2
12 Allen bolt M8*20
2
13 Club knob
4
14 Sleeve
2
15 Hex head bolt M10
2
16 Flat washer Ø50
2
17 Flat washer Ø10*Ø22
2
18 Nylon nut M10
2
23 Spacer for pedal
4
24 Flat washer Ø8*Ø17
4
34 Hollow carriage screw Ø8*20
4
