DEEP-V BOATS
MX2025 and MX1825 HELM LAYOUT

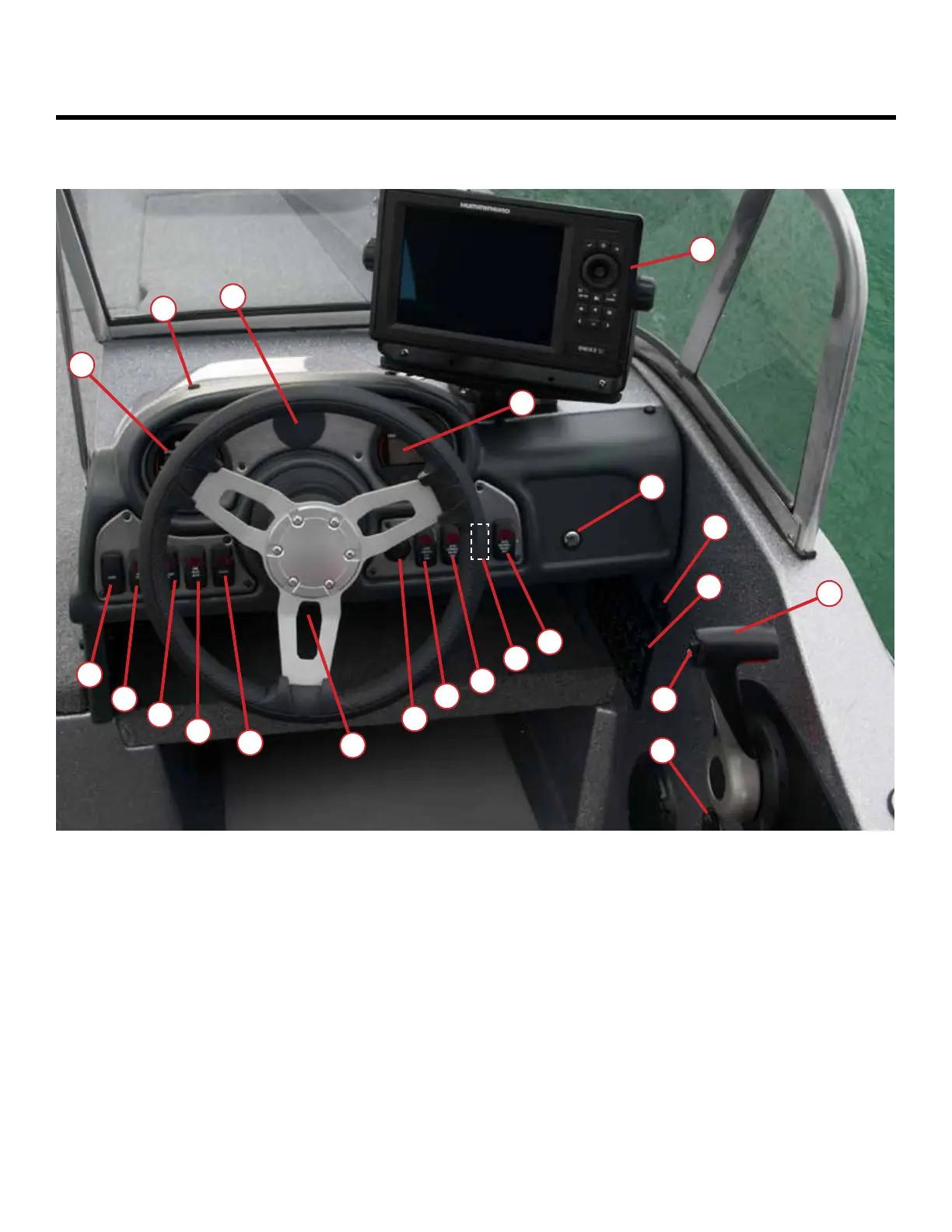

Figure 3-7
1. Fuel Level/Voltage Gauge
2. Steering Fluid Fill
3. Engine Water Pressure
4. Fishnder
5. Tachometer/Trim Gauge
6. Bluetooth Stereo
7. 12-Volt Outlet
8. Circuit Breaker Panel
9. Engine Remote Control Throttle/Shift
10. Engine Trim Switch
11. Livewell Drain Control Switch
12. Baitwell Recirculation Pump Switch
13. Baitwell Fill Switch
14. Livewell Recirculation Pump Switch
15. Livewell Fill Switch
16. Ignition Switch
17. Tilt Steering Latch
18. Power Switch
19. Bilge Pump Switch
20. Courtesy Light Switch
21. Navigation/Anchor Light Switch
22. Horn
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
