DEEP-V BOATS
WX2060, WX2190
WX boats are equipped with two switch panels at the helm to control all boat functions. Switches are
equipped with indicator lights for operation.
Starboard Switch Panel
Power: The POWER button
controls the power ON/OFF to
all accessories. All buttons and
gauges are inactive if the power is
off.
Horn: The HORN button controls
the horn. Press and hold to sound
the horn.
Lights: The LIGHTS button
controls the navigation and anchor
lights ON/OFF. Press the button
once to activate both the navigation
and anchor lights. Press the button
again (twice) to activate only the
anchor lights. Press the button a
third time to turn off both lights.
Courtesy Lights: The CTSY LIGHTS button controls power ON/OFF to the courtesy lights located
throughout the boat. Press the button once to turn on the courtesy lights; press the button again to
turn them off.
Bilge: The BILGE button controls power ON/OFF to the bilge pumps. Pressing the button once
activates the PORT bilge pump. Pressing the button a second time activates the STBD bilge pump.
Pressing the button a third time turns off the PORT bilge pump and the STBD bilge pump continues to
run. Press the button a fourth time to turn off all bilge pumps. The indicator lights for each bilge pump
will light up when the automatic oat switch activates that pump.
Aerator Timer: TIMER is activated when the power button is ON and the FILL / RECIRC buttons are
set appropriately. The timer will start on low (1 minute on and 7 minutes off). Press the button once
and the timer will be on medium (1 minute on and 3 minutes off); press the button again and the timer
will be on high (1 minute on and 1 minute off).

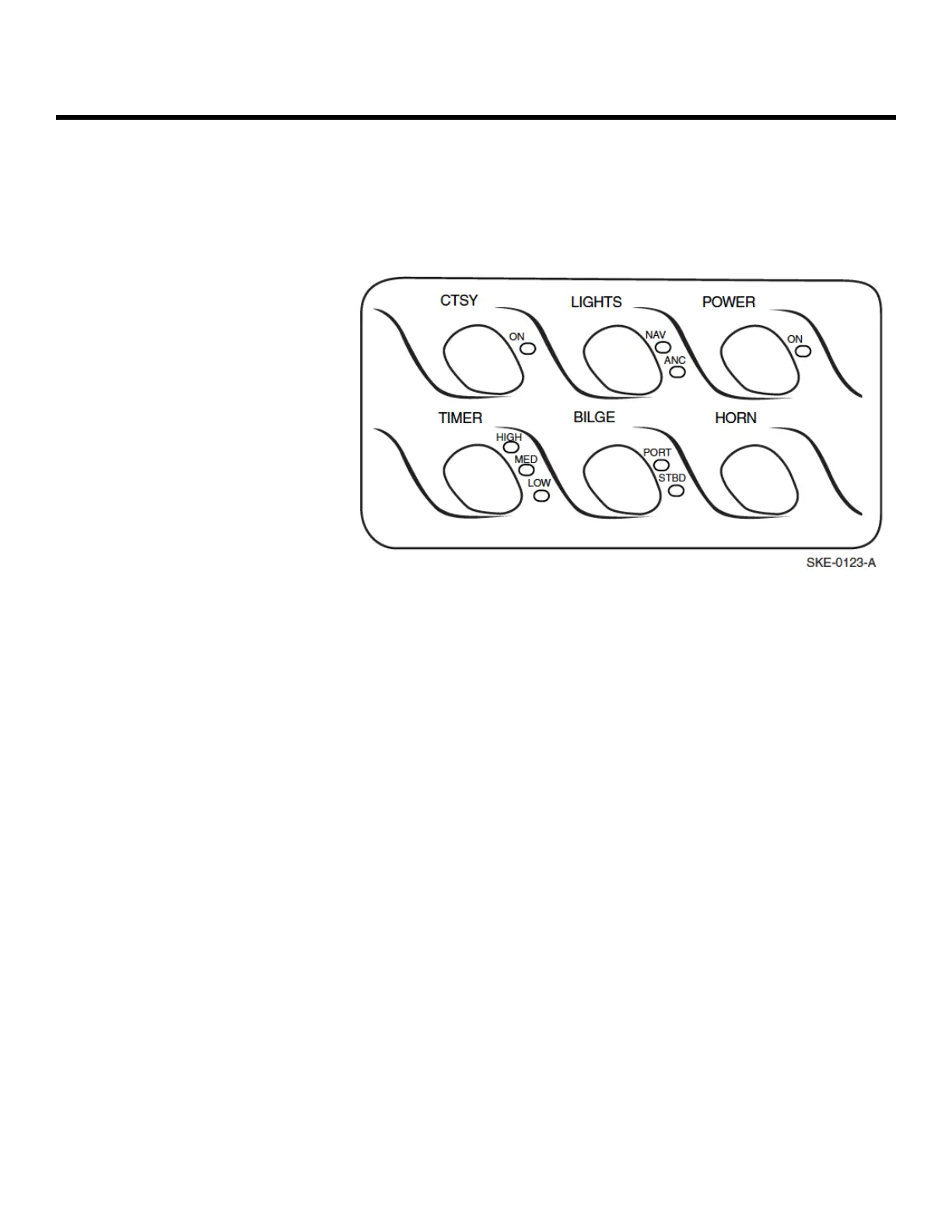

WX Starboard Switch Panel
Figure 3-11
