Replace hose
Remove hose
1 Pull out hose leaving
to ft (0,6 to 0,9 m) on spool.
2 Engage latch pawl.
3 Remove screw nuts on inside of spool
(† fig. 11).
4 Remove hose clamp.
5 Unthread hose at connection to swivel.
6 Use wrench on both fittings or swivel may
be damaged.
7 Remove hose.
Install hose
1 Route hose through guide arm rollers and
opening of spool.
2 Apply thread tape or sealant to hose
threads.
3 Screw hose fitting into threaded fitting on
swivel.
4 Tighten connection with wrench on
both fittings.
5 Install hose clamp († fig. 11).
6 Install hose bumper on working end
of hose.
7 Disengage latch pawl and allow hose
to retract.

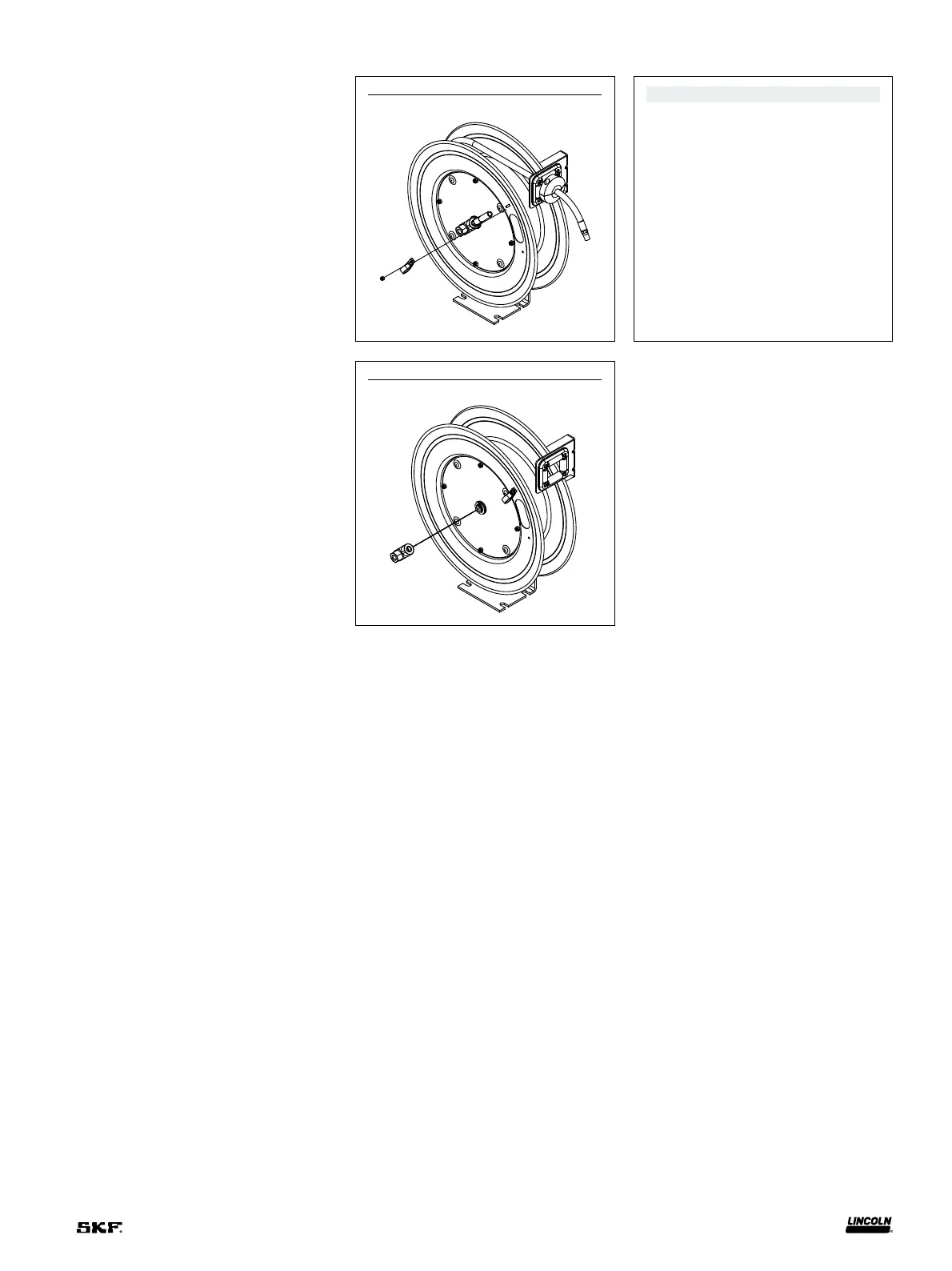

Fig. 11
Fig. 12
NOTE
Do not use rigid plumbing. Use flexible
hose connection at input.
Do not exceed recommended torque
of ft.lf (94 Nm).
Model swivel assembly has
1
/4 in NPTF internal threads and
model swivel assembly has
1
/2 in NPTF internal threads.
Connecting hose not included.
Replace swivel
1 Remove hose († Replace hose).
2 Remove swivel by unscrewing threaded
stem from main shaft († fig. 12).
3 Replace swivel by screwing threaded stem
of swivel into main shaft of reel.
4 Replace hose.
