Clutch Axle and Drive Chain Lubrication
Clutch Axle Lubrication
Remove chain guard.
Find connecting link (inner side of chain), then separate chain. Re-
move chain from clutch sprocket.
NOTE: Do not remove chain from driven sprocket. Chain may be
difficult to install.
Remove clutch retaining screw and slide out the clutch.

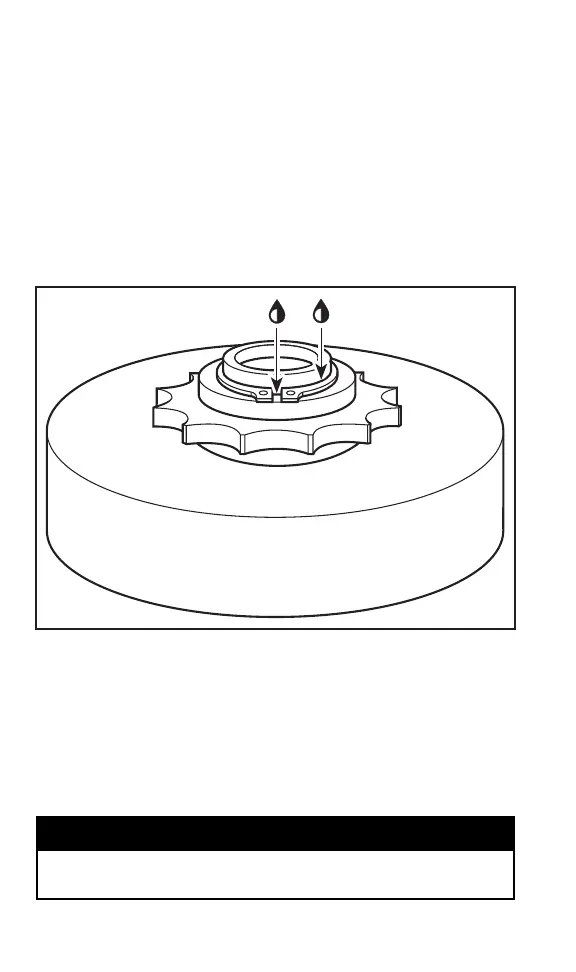

Put clutch on a bench and drip a few drops of oil into clutch sleeve,
as shown in the next illustration.
A31D01A
CLUTCH LUBRICATION
Reinstall clutch. Torque retaining screw to 23 N•m (17 lbf•ft).
Joint both drive chain ends using connecting link.
Secure connecting link using outer link and circlip installed on inner
side of chain.
Install circlip so that open end is positioned opposite side of drive
chain rotation. See the following illustration.
WARNING
Always ensure that connecting link, outer link and circlip are
in good condition. Ensure that circlip is properly secured.
