INCORRECT
-~~ii'''"
H
A001
003
003
-.r
CAUTION: Do
not
force or use
T
tools
to
pry
the
belt
into
place,
this
could
cut
or break
the
cords in
the
belt.

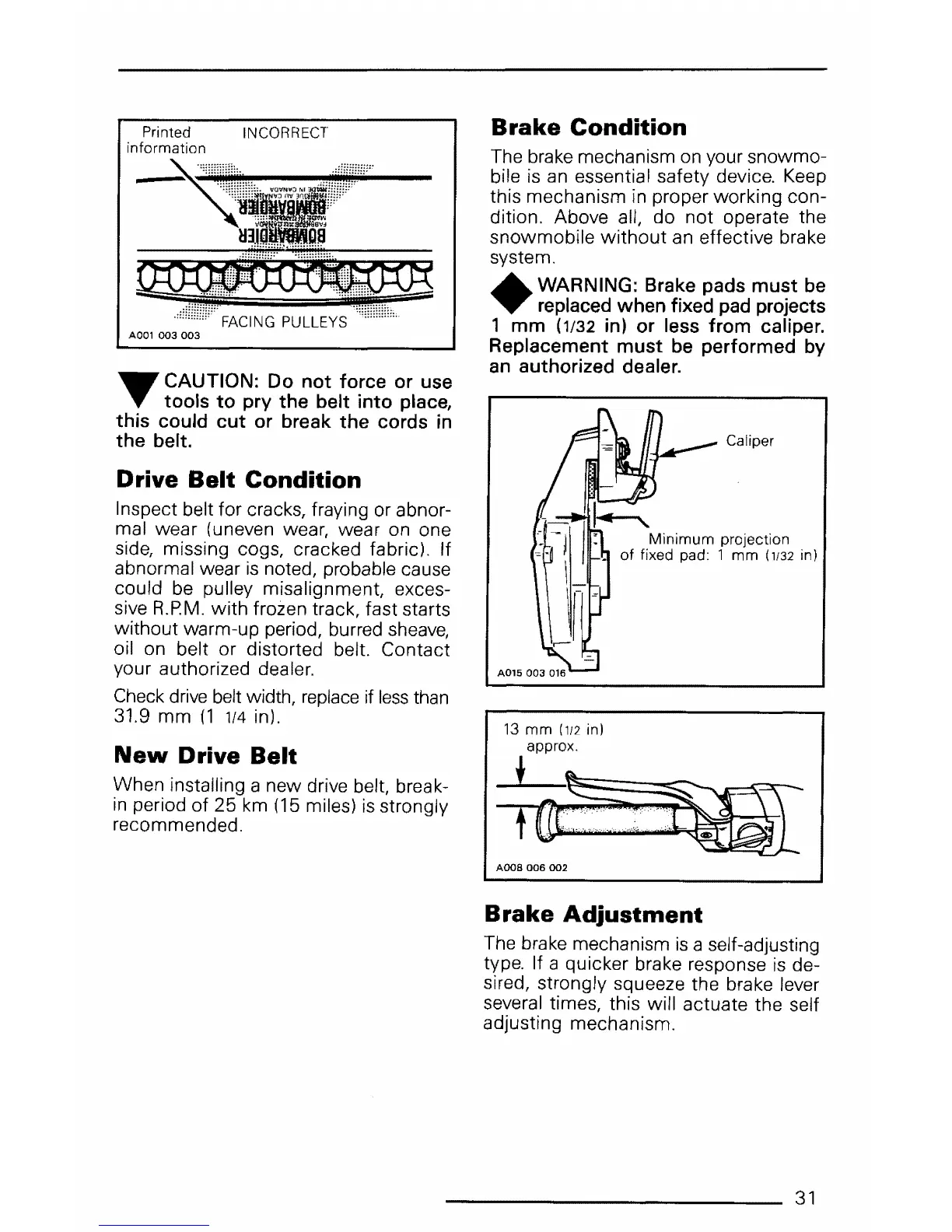

Drive Belt Condition
Inspect belt for cracks, fraying or abnor-
mal wear (uneven wear, wear on one
side, missing cogs, cracked fabric). If
abnormal wear
is
noted, probable cause
could
be
pulley misalignment, exces-
sive
R.P.M.
with frozen track, fast starts
without warm-up period, burred
sheave,
oil
on
belt or distorted belt. Contact
your authorized dealer.
Check
drive
belt width,
replace
if
less
than
31.9 mm
(1
1/4 in).
New
Drive Belt
When installing a new drive belt, break-
in
period
of
25 km
(15
miles)
is
strongly
recommended.
Brake
Condition
The brake mechanism
on
your snowmo-
bile
is
an
essential safety device.
Keep
this mechanism
in
proper working con-
dition. Above all, do not operate the
snowmobile
without
an
effective brake
system.
+
WARNING: Brake pads
must
be
replaced when fixed pad projects
1
mm
(1/32 in) or less
from
caliper.
Replacement
must
be performed by
an
authorized dealer.
13
mm
(1/2 in)
A008
006
002
Brake
Adjustment
The brake mechanism
is
a self-adjusting
type. If a quicker brake response
is
de-
sired, strongly squeeze the brake lever
several times, this will actuate the self
adjusting mechanism.
