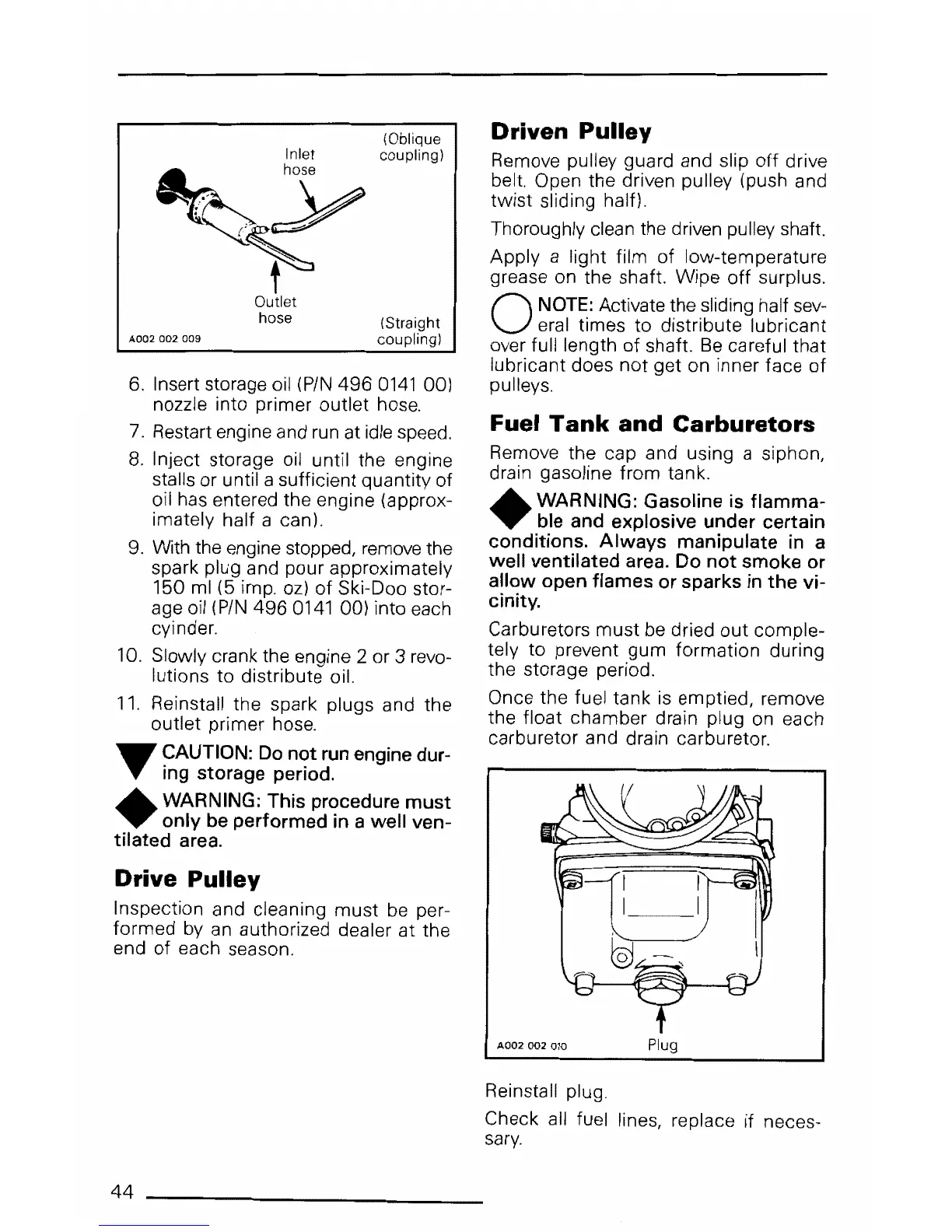

Inlet
~
hose
~~~
~
Outlet
hose
A002
002 009
(Oblique
coupling}
(Straight
coupling)
6.
Insert storage oil
(P/N
496
0141
00}
nozzle into primer outlet hose.
7.
Restart engine and run at idle speed.
8. Inject storage oil until the engine
stalls or until a sufficient quantity of
oil has entered the engine {approx-
imately half a can).
9.
With the engine stopped,
remove
the
spark plug and pour approximately
150 ml (5 imp. oz}
of
Ski-Doo stor-
age oil
(PIN
496
0141
00) into each
cyinder.
10. Slowly crank the engine 2 or 3
revo-
lutions to distribute oil.
11.
Reinstall the spark plugs and the
outlet primer hose.
~
~AUTION:
Do not
run
engine
dur-
T
mg
storage period .
..A. WARNING: This procedure must
T only
be
performed
in
a well ven-
tilated area.
Drive
Pulley
Inspection and cleaning must
be
per-
formed by
an
authorized dealer at the
end
of
each season.
44
------------------------
Driven
Pulley
Remove pulley guard and slip
off
drive
belt. Open the driven pulley (push and
twist
sliding half).
Thoroughly clean the driven pulley shaft.
Apply a light film of low-temperature
grease on the shaft. Wipe
off
surplus.
0
NOT~:
Activate
~he
.sliding half
sev-
eral
t1mes
to d1stnbute lubricant
over full length of shaft.
Be
careful that
lubricant does not get on inner face
of
pulleys.
Fuel
Tank
and
Carburetors
Remove the cap and using a siphon,
drain gasoline from tank.
..A. WARNING: Gasoline
is
flamma-
T ble and explosive under certain
conditions. Always manipulate
in
a
well ventilated area. Do not smoke
or
allow open flames or sparks
in
the vi-
cinity.
Carburetors must
be
dried
out
comple-
tely to prevent gum formation during
the storage period.
Once the fuel tank
is
emptied, remove
the float chamber drain plug on each
carburetor and drain carburetor.
A002 oo2
o1o
Plug
Reinstall plug.
Check all fuel lines, replace if neces-
sary.
