-6-
Functional Description and Specifications
GRINDING
WHEEL
GUARD
RELEASE / LOCK
LATCH
WHEEL
GUARD
VENTILATION
OPENINGS
Disconnect the plug from the power source before making any
a
ssembly, adjustments or changing accessories.
S
uch preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
NOTE: For tool specifications refer to the nameplate on your tool.
Model number 9290
Max. wheel diameter
4 1/2" (115mm)
Spindle thread 5/8"-11 UNC
Max. wire wheel 4" Dia.
Max. wire cup brush 3" Dia.
Max. sanding disc 4 1/2" Dia.
Angle Grinders
SPINDLE
LOCK
SIDE
HANDLE
SWITCH
BUTTON
RUBBERIZED
GRIP
LOCK NUT
BACKING
FLANGE
SPINDLE

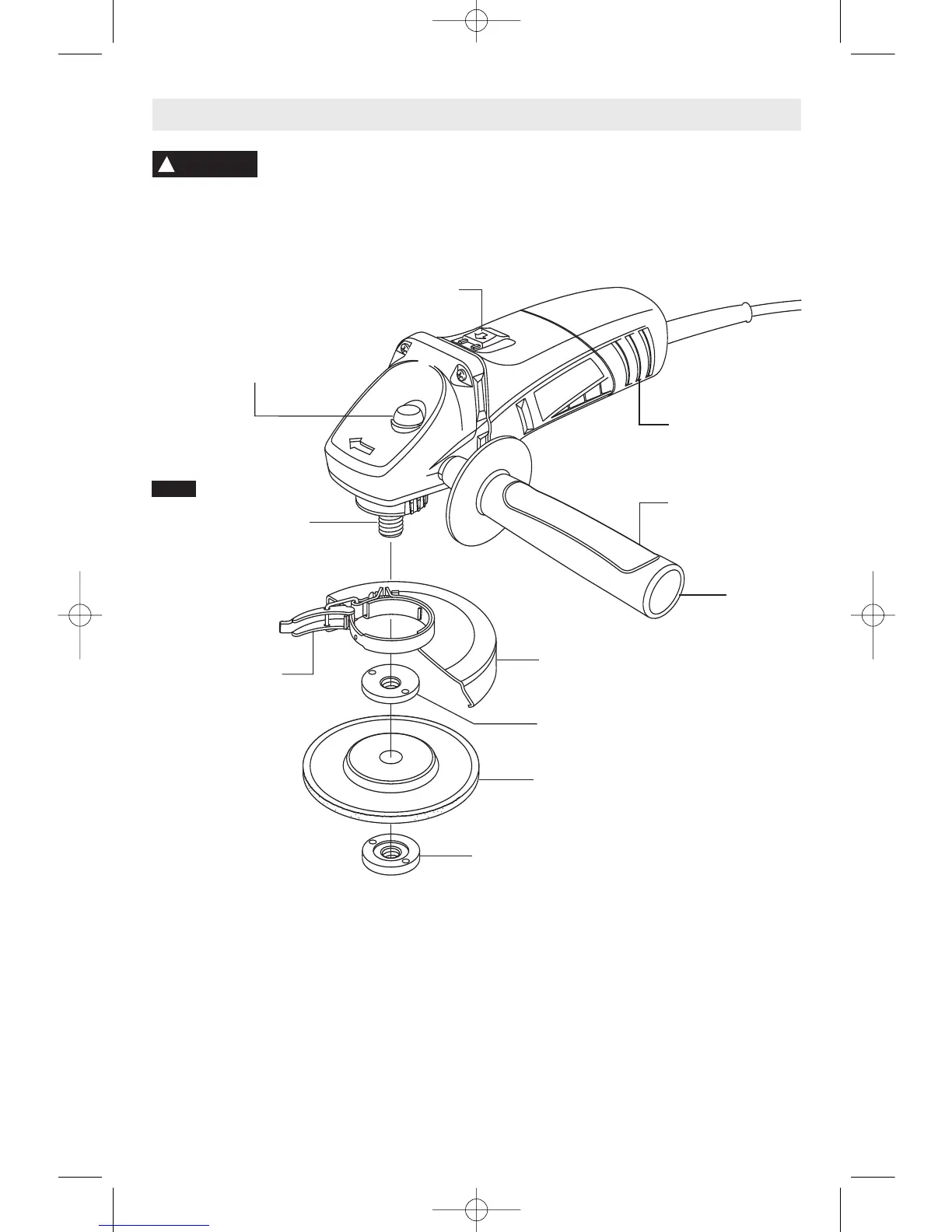

FIG. 1
SM 2610938703 03-06 3/15/06 8:08 AM Page 6
