-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
a
ssembly, adjustments or changing accessories
.
Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

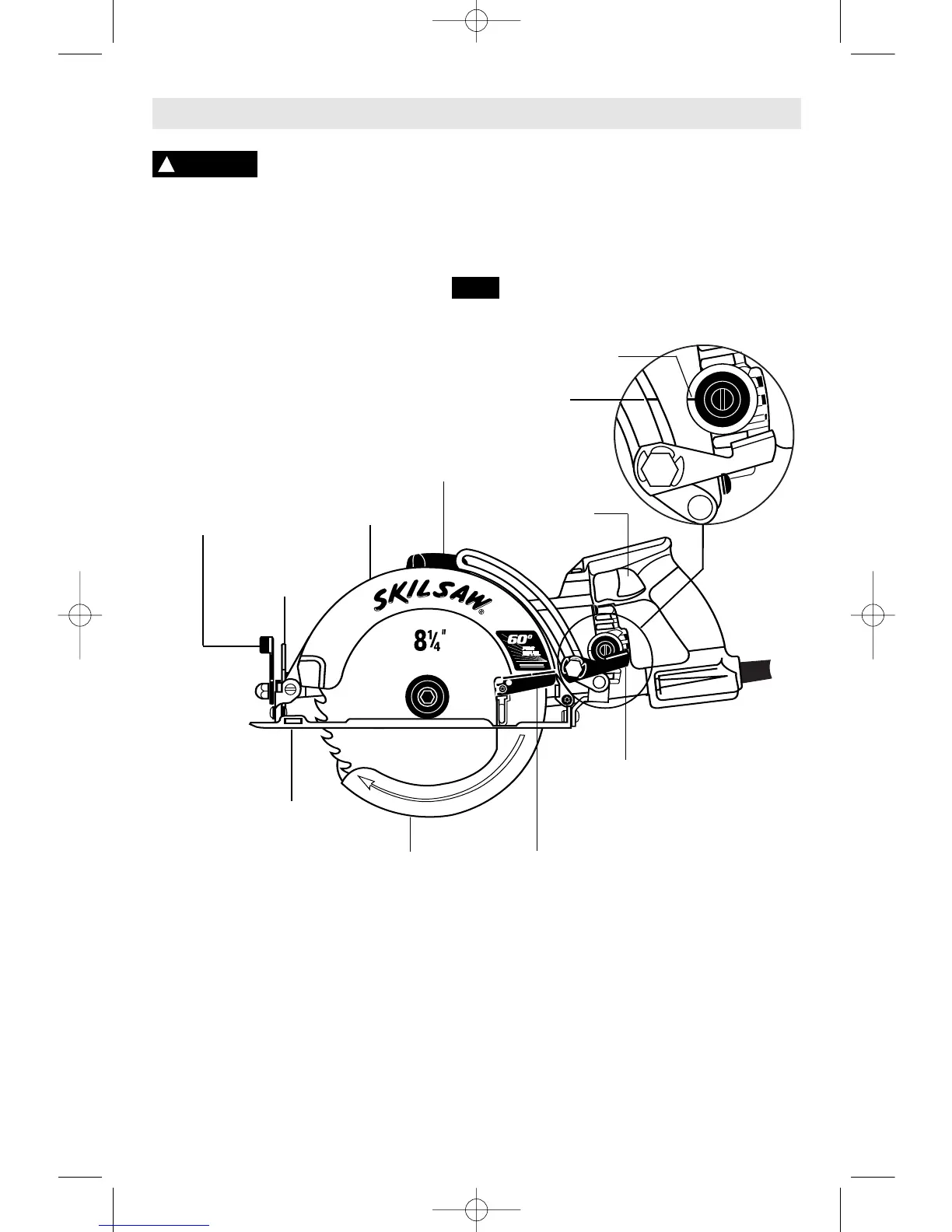

Circular Saw
AUXILIARY
HANDLE
UPPER
GUARD
LOWER
GUARD
LOWER GUARD
LIFT LEVER
FOOT
DEPTH
ADJUSTMENT
LEVER
BEVEL
ADJUSTMENT
LEVER
FIG. 1
CALIBRATED
BEVEL
QUADRANT
TRIGGER
SWITCH
Maximum Capacities
Blade
8-1/4"
Blade arbor hole
Diamond
Depth of cut at 90° 2-7/8"
Depth of cut at 60° 1-1/2"
Depth of cut at 45° 2-1/4"
NOTE: For tool specifications refer to the nameplate on your tool.
ALIGNMENT MARK
60° MARK TO BE ADJUSTED PRIOR TO
BEVEL ADJUSTMENT (60° ONLY)
60°
SM 1619X01359 02-06 2/16/06 1:50 PM Page 7
