Functional Description and Specifications
Disconnect the plug from the power source before making any
a
ssembly, adjustments or changing accessories
.
Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

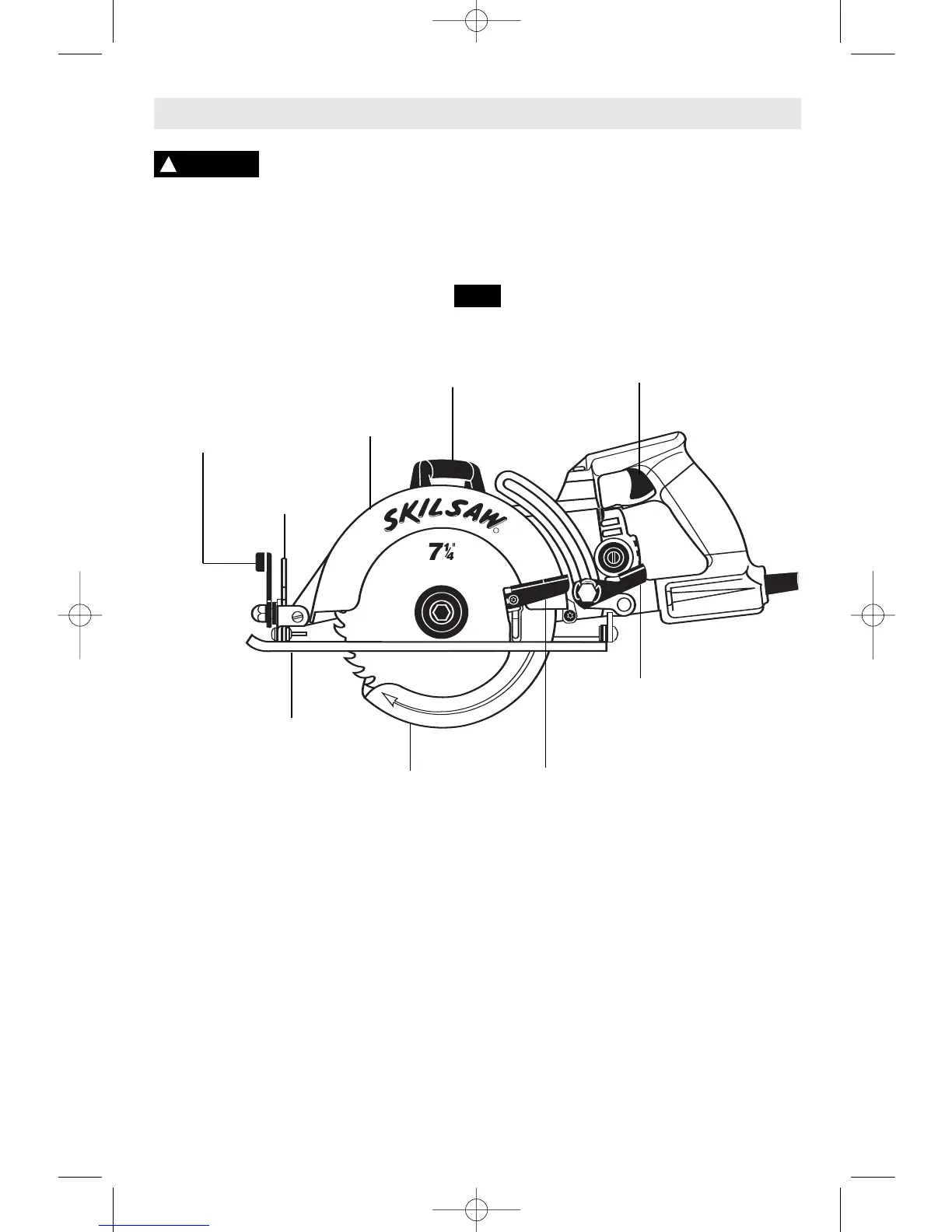

Circular Saws
AUXILIARY
HANDLE
UPPER
GUARD
LOWER
GUARD
LOWER GUARD
LIFT LEVER
FOOT
DEPTH
ADJUSTMENT
LEVER
BEVEL
ADJUSTMENT
LEVER
FIG. 1
CALIBRATED
BEVEL
QUADRANT
TRIGGER
SWITCH
Maximum Capacities
Blade 7-1/4"
Blade arbor hole Diamond
Depth of cut at 90° 2-3/8"
Depth of cut at 45° 1-15/16"
NOTE: For tool specifications refer to the nameplate on your tool.
