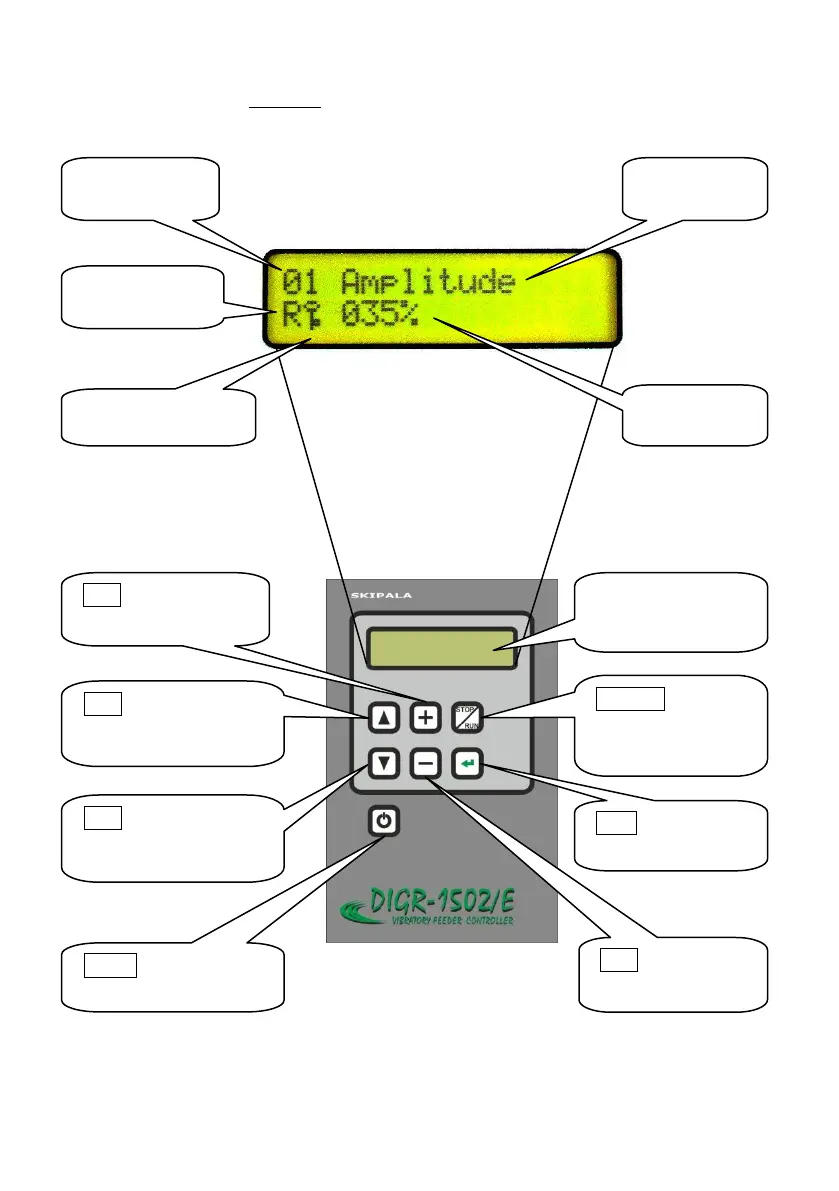

Fig. 1 – Description of controls
Display
2 x 16
characters
stop
/
run
–
Switching over
in S-stop or
R-run condition
enter
- Saving
the set values
+ - Increase
displayed value
- - Decrease
displayed value
▲ - Browsing
through parameters
upward
▼ - Browsing
through parameters
downward
on
/
off
- Controller
turning on/off
Parameter
number
Operational
status
Parameter
value
Parameter
name
Parameter
locked/unlocked
