SKIPIO SUF12-2 - SUR15-2; SUF15-2;SGR15-2 Explode View

13

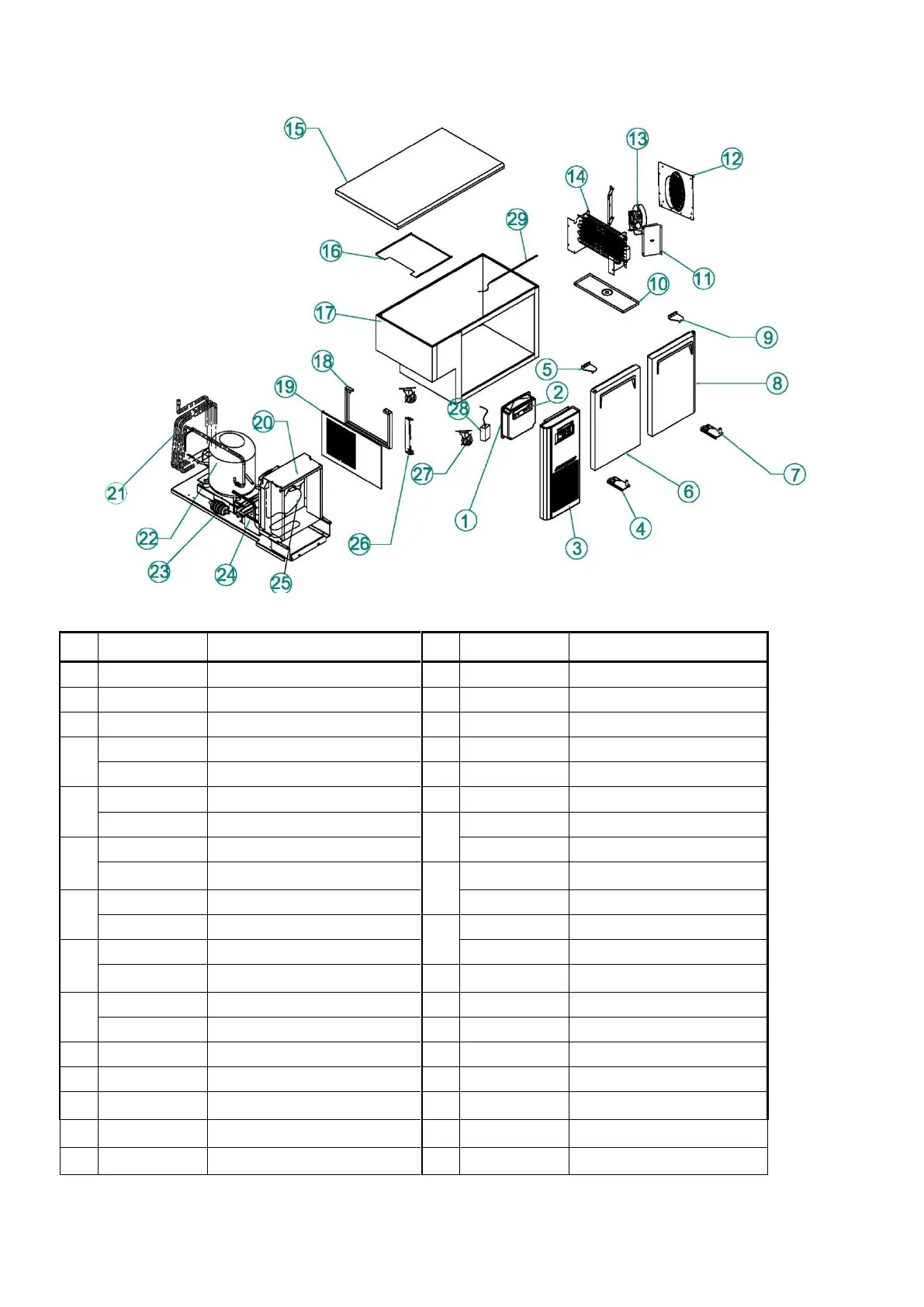

3-1-6. SUR15-2/ SUF15-2/SGR15-2Explode View
No
Part Cord
Part Name
No
Part Cord
Part Name
1
KR81410400
MAIN PCB
14
DK84400107
EVAP ASSY FRE
2
KR81410300
FRONT PCB
15
KR2FF00100
COUNTER TOP
3
KR81410704
UNIT FRONT COVER
16
KF85220305
EVAP FAN AIR GUIDE
4
KR89940100
BOTTOM HINGE（L）
17
KU21000100
CABINET ASSY
30229M0305
BOTTOM HINGE（L）GLASS
18
KR92100301
UNIT BRACKET
5
KR89910302
TOP HINGE（L）
19
KR81900104
UNIT SAID COVER
M722900208
TOP HINGE（L）GLASS
20
KF24900105
CONDENSER ASSY REF
6
KR5AF00202
DOOR（L）_1500
KF84900105
CONDENSER ASSY FRE
JG5AF00105
ASS'Y GLASS DOOR L
21
KR94200109
SUCTION PIPE(B) REF
7
KR89910100
BOTTOM HINGE（R）
KR84200109
SUCTION PIPE(B) FRE
30229M0405
BOTTOM HINGE（R）GLASS
22
G2R5700200
COMP LX110 REF
8
KR5AF00102
DOOR（R）_1500
G5R5700200
COMP LX125 FRE
JG5AF00205
ASS'Y GLASS DOOR R
23
BR84100100
DRYER
9
KR89910402
TOP HINGE（R）
24
M729300102
DRAIN PAN
M722900108
TOP HINGE（R）GLASS
25
G8F5000200
CONDENSER FAN MOTOR
10
KR91800201
EVAP DRAIN GUIDE
26
KF82100208
UNIT BRACKET(A)
11
KR91800102
AIR GUIDE(L/R)
27
K3F3200901
LEVEL FOOT&CASTER
12
KF81700100
EVA DUCT
28
KG81200100
SMPS
13
G8F5000100
EVA FAN MOTOR
29
KG59600102
LED LAMP
14
DK9A100103
EVAPASSY REF
