SKIPIO SUF12-2 - SURF18-3 Explode View

19

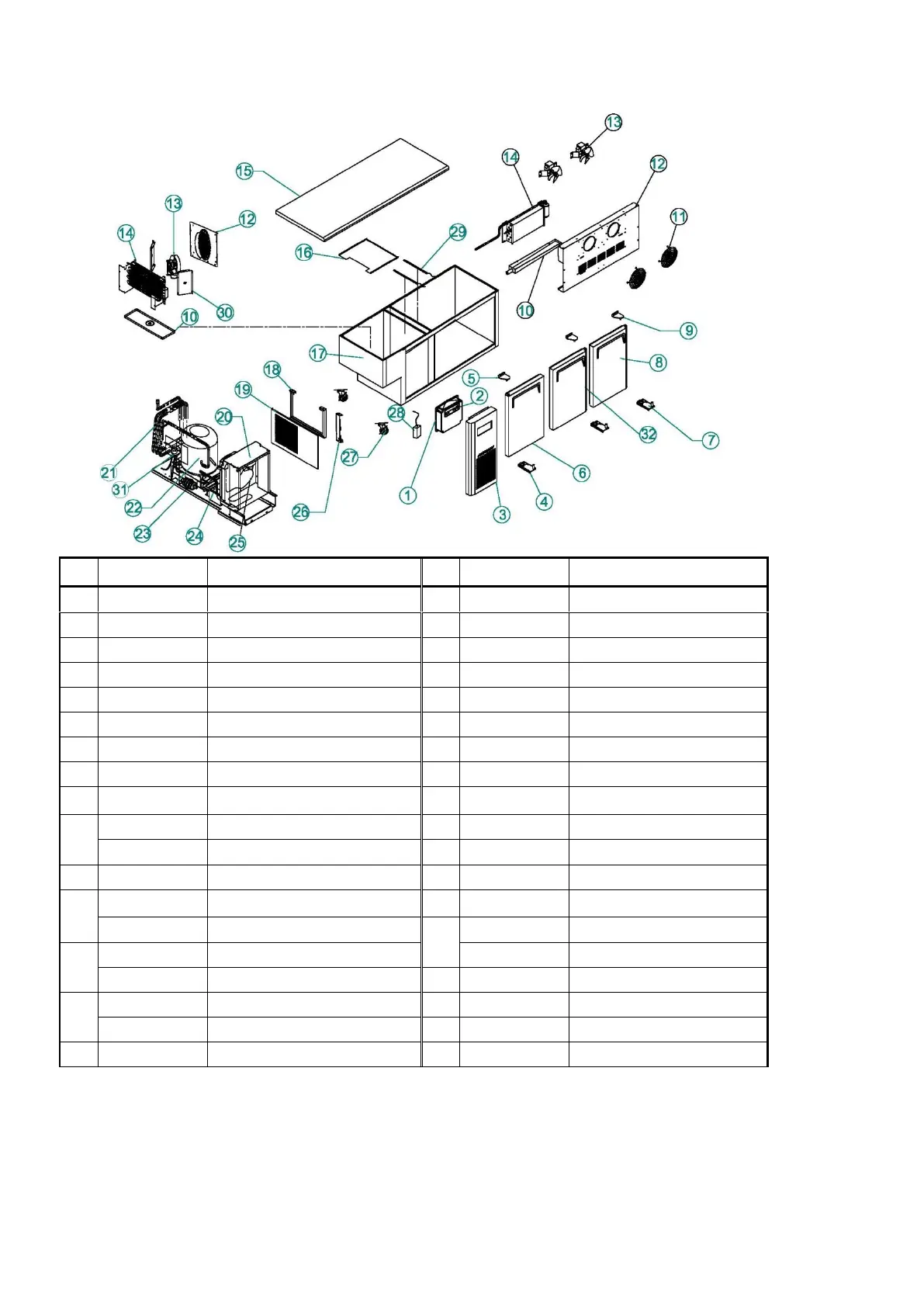

3-1-11. SURF18-3Explode View
No
Part Cord
Part Name
No
Part Cord
Part Name
1
KRF2500700
MAIN PCB
16
KF85220305
EVAP FAN AIR GUIDE
2
KRF2500600
FRONT PCB
17
KRF8000100
CABINET ASSY
3
KR81410704
UNIT FRONT COVER
18
KR92100301
UNIT BRACKET
4
KR89940100
BOTTOM HINGE（L）
19
KR81900104
UNIT SAID COVER
5
KR89910302
TOP HINGE（L）
20
KF84900105
CONDENSER ASSY
6
KR8AF00202
DOOR（L）_1800
21
KRF2600201
SUCTION PIPE(B)
7
KR89910100
BOTTOM HINGE（R）
22
NEK2150GK
8
KR8AF00102
DOOR（R）_1800
23
BR84100100
DRYER
9
KR89910402
TOP HINGE（R）
24
M729300102
DRAIN PAN
10
BR91900101
EVA DRAIN GUIDE REF
25
G8F5000200
CONDENSER FAN MOTOR
KR91800203
EVA DRAIN GUIDE FRE
26
KF82100208
UNIT BRACKET(A)
11
U609000103
FAN COVER REF
27
K3F3200901
LEVEL FOOT&CASTER
12
KRF8100600
EVAP DUCT REF
28
KG81200100
SMPS
KF81700104
EVAP DUCT FRE
29
KG99600102
LED LAMP FRE
13
CM25000101
EVA FAN MOTOR REF
KG59600102
LED LAMP REF
G8F5000100
EVA FAN MOTOR FRE
30
KR91800102
AIR GUIDE(L/R)
14
KRF1822100
EVAP ASSY REF
31
K1D6900100
STRING MOTOR
DK9AI00104
EVAP ASSY FRE
32
KR8AF00302
DOOR（M）_1800
15
KR8FF00100
COUNTER TOP
